Installing a System Chassis
Installing the System in a Cabinet 9-17
5. With one person at the front of the cabinet and one person at the rear of the
cabinet, insert the shelf unit into the cabinet and onto the mounting brackets.
a. At the front of the cabinet, slide the shelf unit into the cabinet.
b. At the rear of the cabinet, flex the right (from the rear) mounting bracket
towards the side of the cabinet, and guide the shelf unit so that the guide slot
(number 1 in Figure 9-14) at the top right of the shelf unit aligns with the guide
screw (number 2) on your right.
c. Perform the same action on the other side of the cabinet.

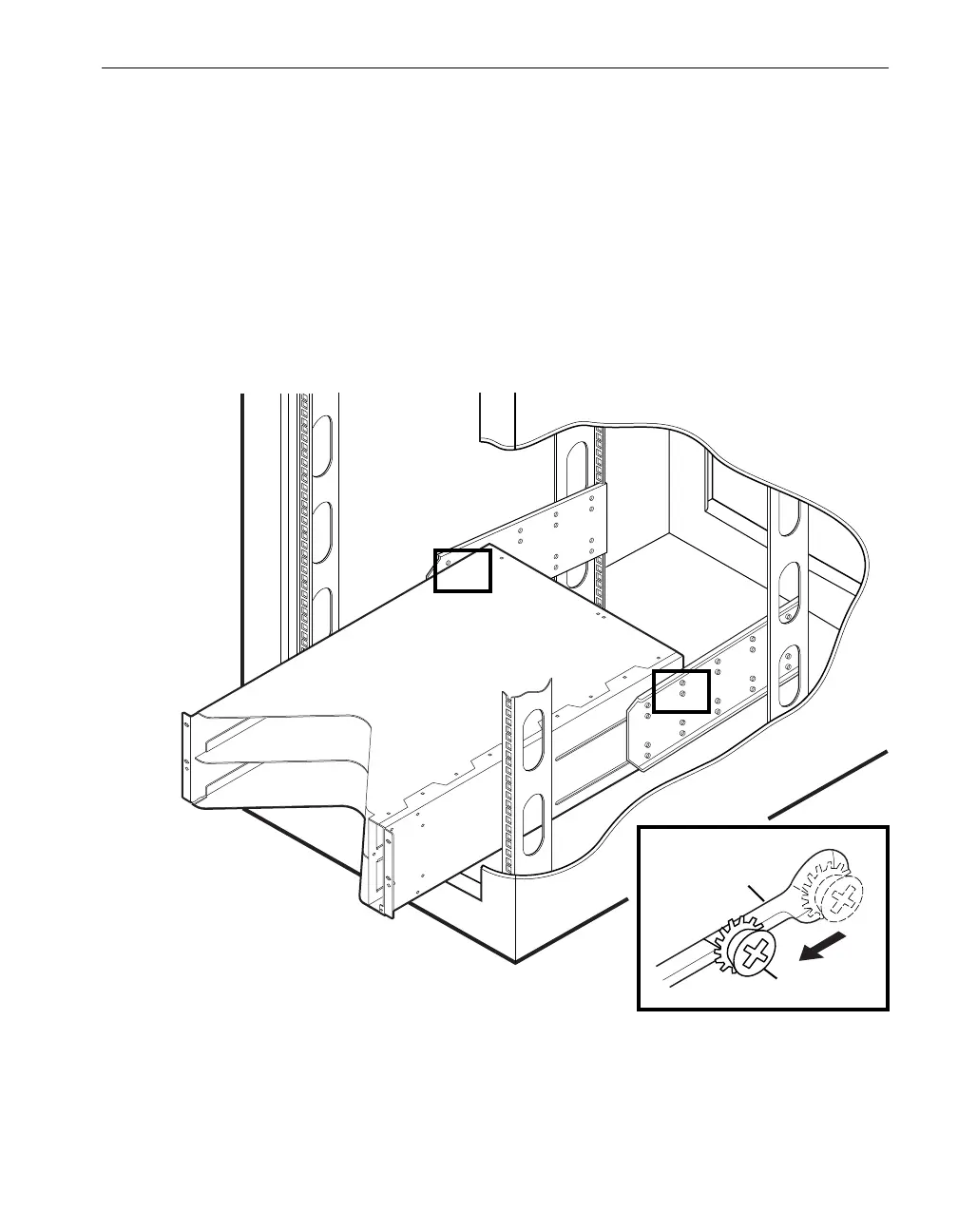

Figure 9-14. Mounting the Shelf Unit on the Mounting Brackets
1 Guide slots (2)
2 Guide screws (2)
1
2
dco025
