Installing PDUs (Optional)

Installing the System in a Cabinet 9-9

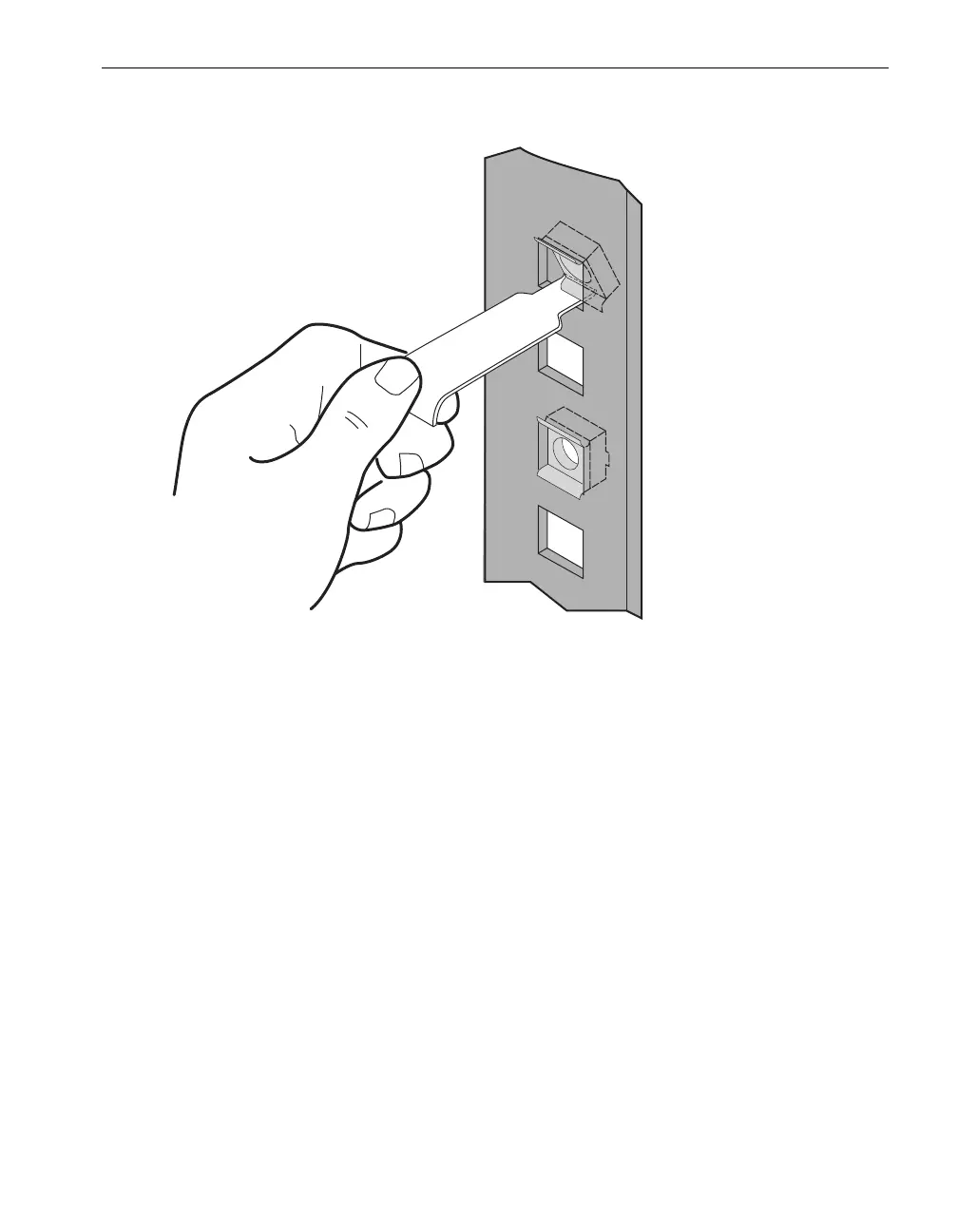

Figure 9-6. Inserting Cage Nuts

2. Install the PDU with the receptacles facing toward the back of the cabinet, as

shown in Figure 9-7.

dco022
