Stratus ftServer 2900 Series - Figure 9-1. System Components

Installing the System in a Cabinet
9-2 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)

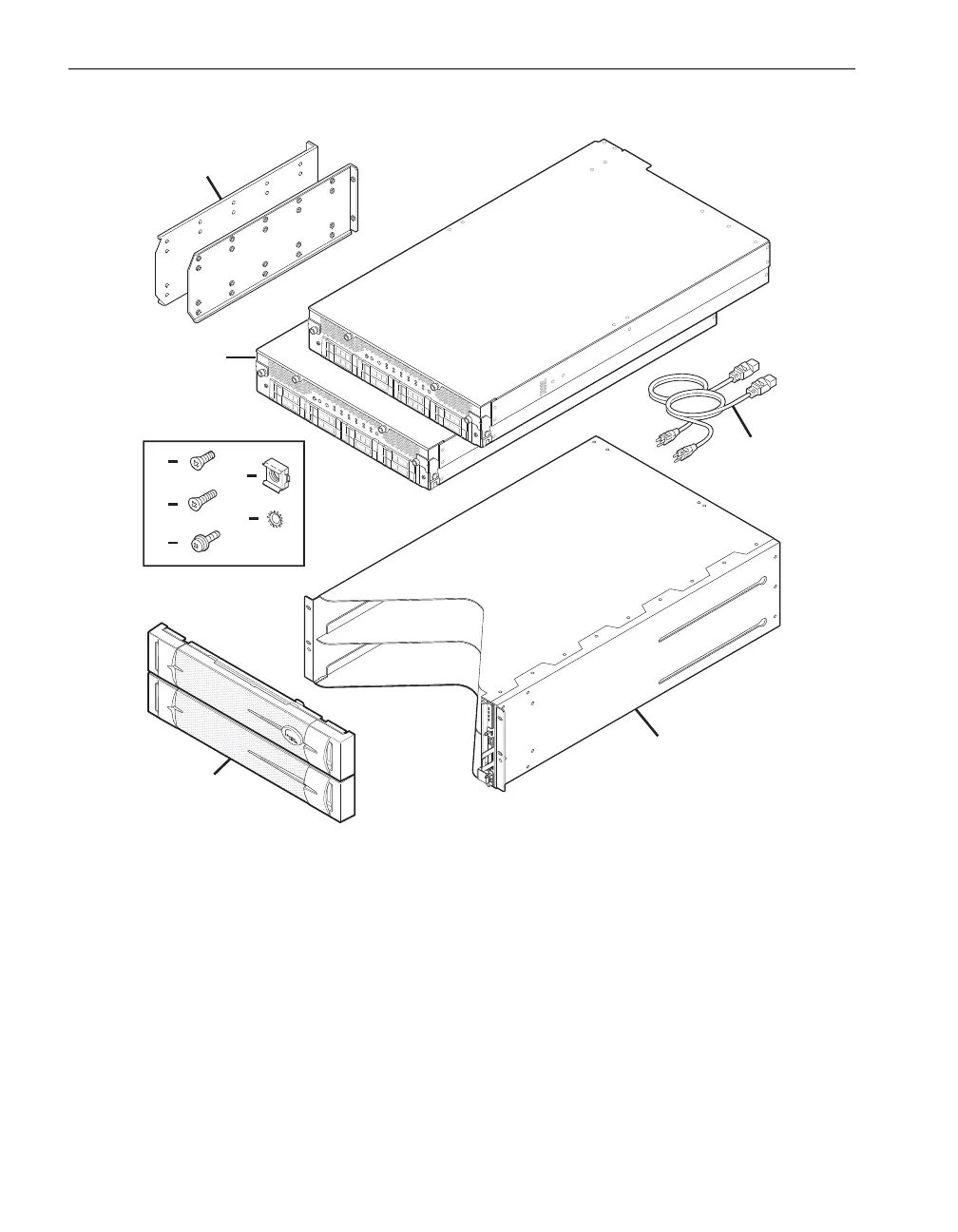

Figure 9-1. System Components
1 Rear mounting brackets (2) 6 10-32 x 1/2 in. flat-head Phillips-head
screws (8)
2 CPU-I/O enclosures (2) 7 10-32 x 5/8 in. flat-head Phillips-head
screws (4)
3 Power cords (2) 8 10-32 x 1/2 pan-head screws with cup
washer (4)
4 Shelf unit 9 10-32 cage nuts (4)
5 Bezel 10 10/32 countersunk lock washers (12)
6
9
7
8
10
3
4
5
1
2
peg034
