Circuit Wiring Diagrams

B-6 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)

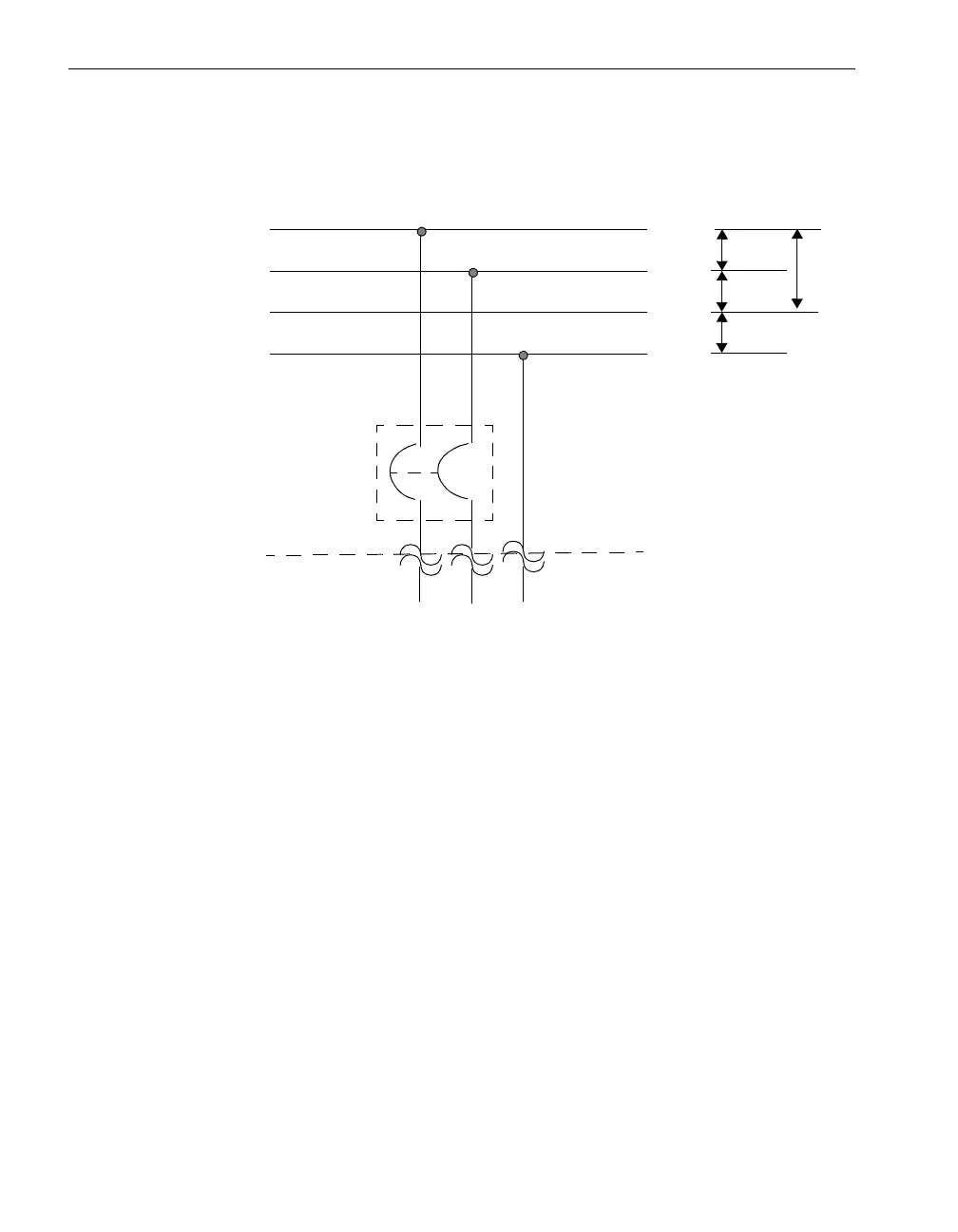

Figure B-6 shows a split-phase 120/240V AC circuit connection. Note that this

application requires a double-pole circuit breaker.

Figure B-6. Split-Phase 120/240 Volts AC Circuit Connection

Circuit A or B

X Y G (PE)

To power input A or B

Wall

Power Cord

G (PE)

240V

120V

Circuit Breaker: 20A maximum

PDU: 20A maximum
