Product description
V 152 10 11 Rev.: END
3-2
3.2
Press chamber
The press chamber frame is made of structural-steel sections.
Amply dimensioned square tube guides serve for absorbing the developing forces.
The tubes are guided in adjustable, high-strength plastic friction bearings.
Three folding blank holders in the press chamber door and two folding blank holders
in the rear panel prevent any material expansion following the compression process,
to maintain as large a loading area as possible (Circle System).
The solenoid switch sensor on the panelling of the press chamber frame secures the
loading door during the compression procedure. When the loading door is opened the
gantry press is switched off.
Pressing force is transmitted by way of a hydraulic cylinder onto the pressing shield.
The bale height can be set using the cams.
3.3
Electrics
1: Controls for
electrics

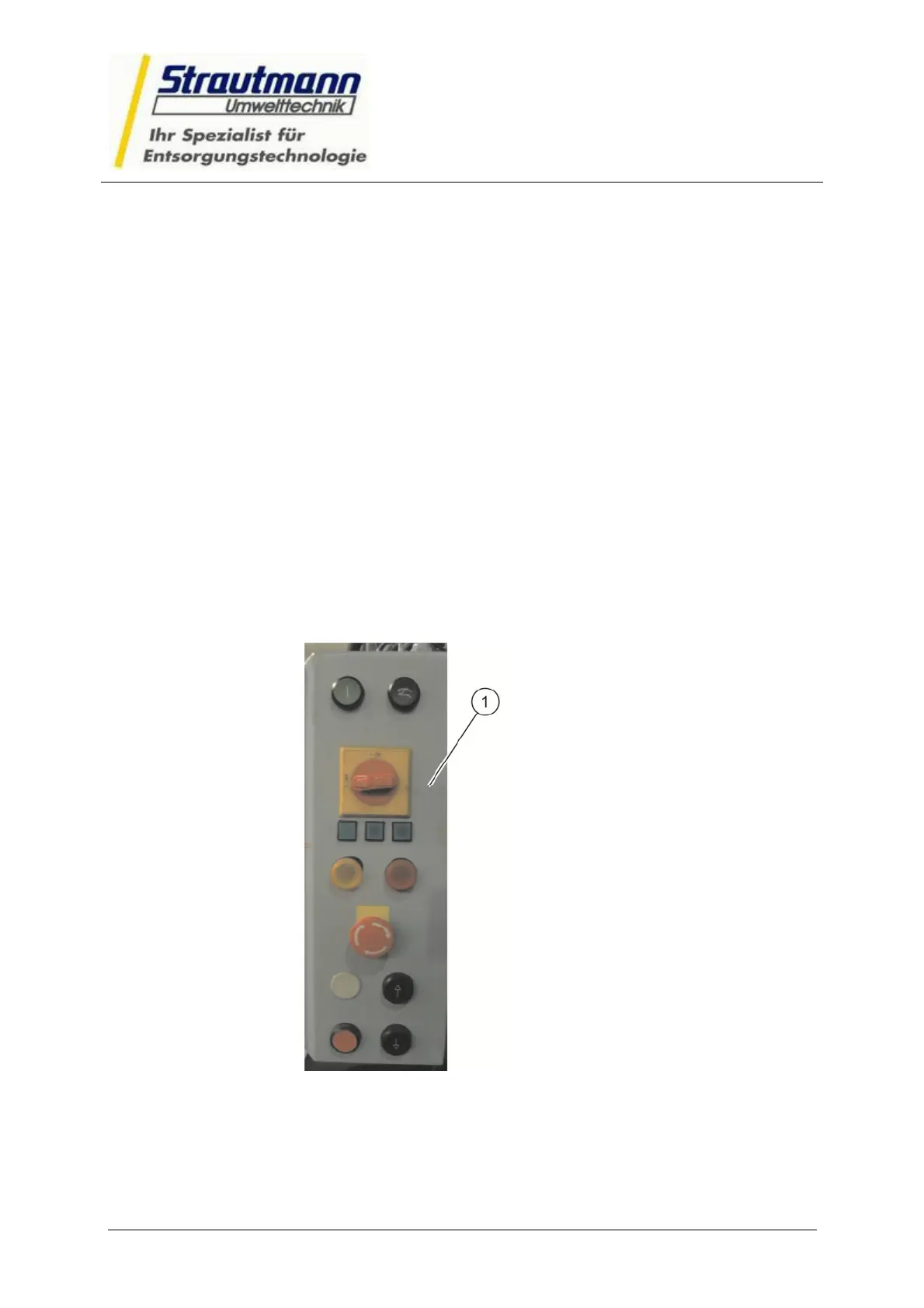

Fig. 3-2: Control cabinet
The gantry press electrical control system is wired up behind the the control panel (1).
The controls on the control panel can be used to issue commands to the control
system.
