Strautmann PP 1207 - 5.2.1 Controls for two-handed control (only for hydraulic door lock)

Operation and control
V 152 10 11 Rev.: END 5-3
Item Designation Function
6 Fault
(red lamp)
Signals a status, in which the press is not ready for
operation. An automatic cycle cannot be started. The lamp
flashes on and off for a fault message (e.g. door open)
7 Emergency
stop red palm
button
Switches off the machine in the event of a hazard or an
emergency and is locked mechanically.
8 Raise shield
button
Lifts the pressing shield in manual mode (second
pushbutton for two-handed control).
9 Lower shield
button
Lowers the pressing shield in manual mode (second
pushbutton for two-handed control).
10 Stop
pushbutton
Stops the automatic cycle
5.2.1 Controls for two-handed control (only for hydraulic door lock)

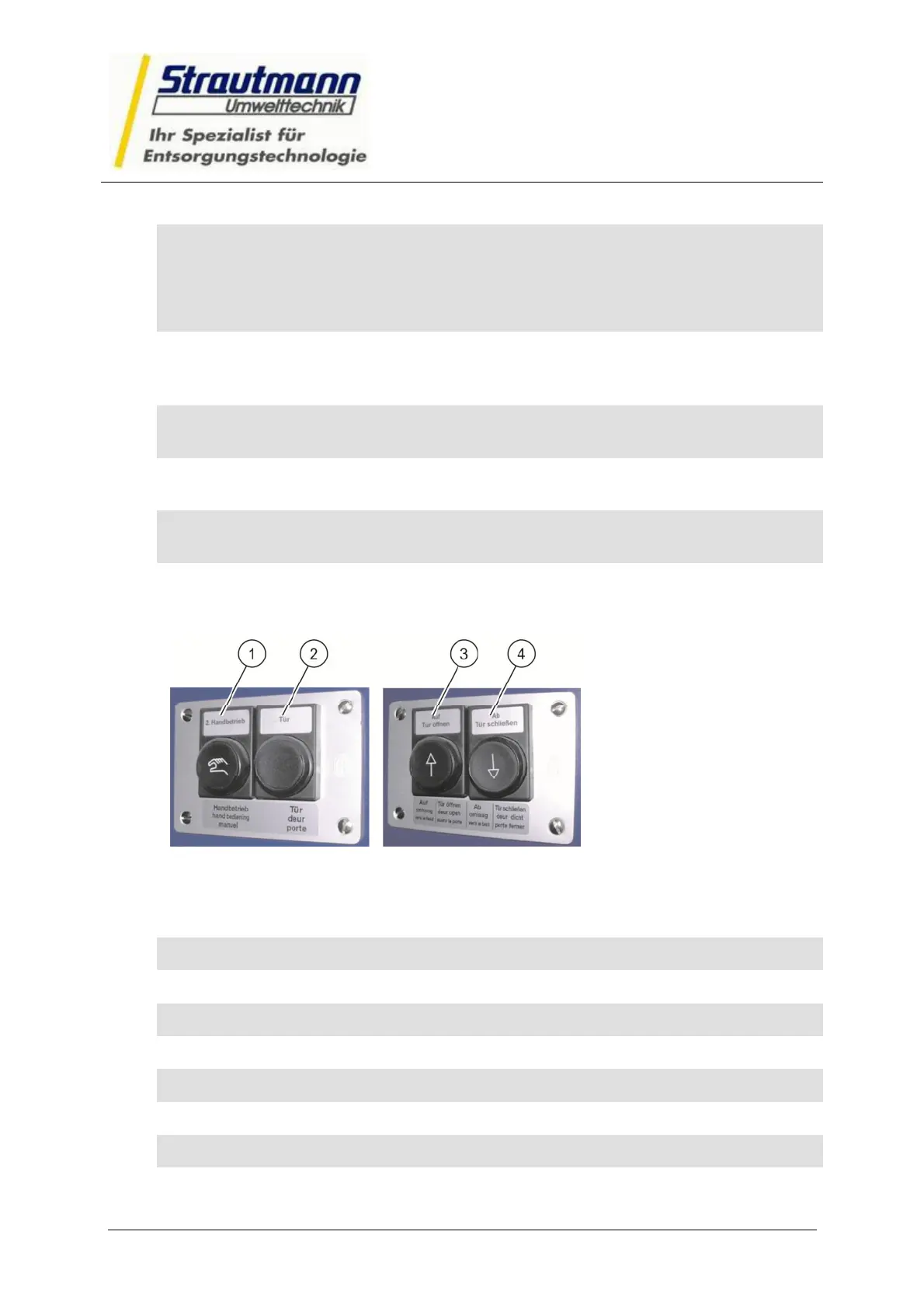

Fig. 5-2: Two-handed control
The respective two pushbuttons of the manual control device must be pressed
within 0.5 s.
Function Button combination
Open the door Button 2 and button 3
Close the door Button 2 and button 4
Raise pressing shield Button 1 and button 3
Lower pressing shield Button 1 and button 4
Lift ejector Button 1 and button 3
Lower ejector Button 1 and button 4
