Operation and control
V 152 10 11 Rev.: END
5-9

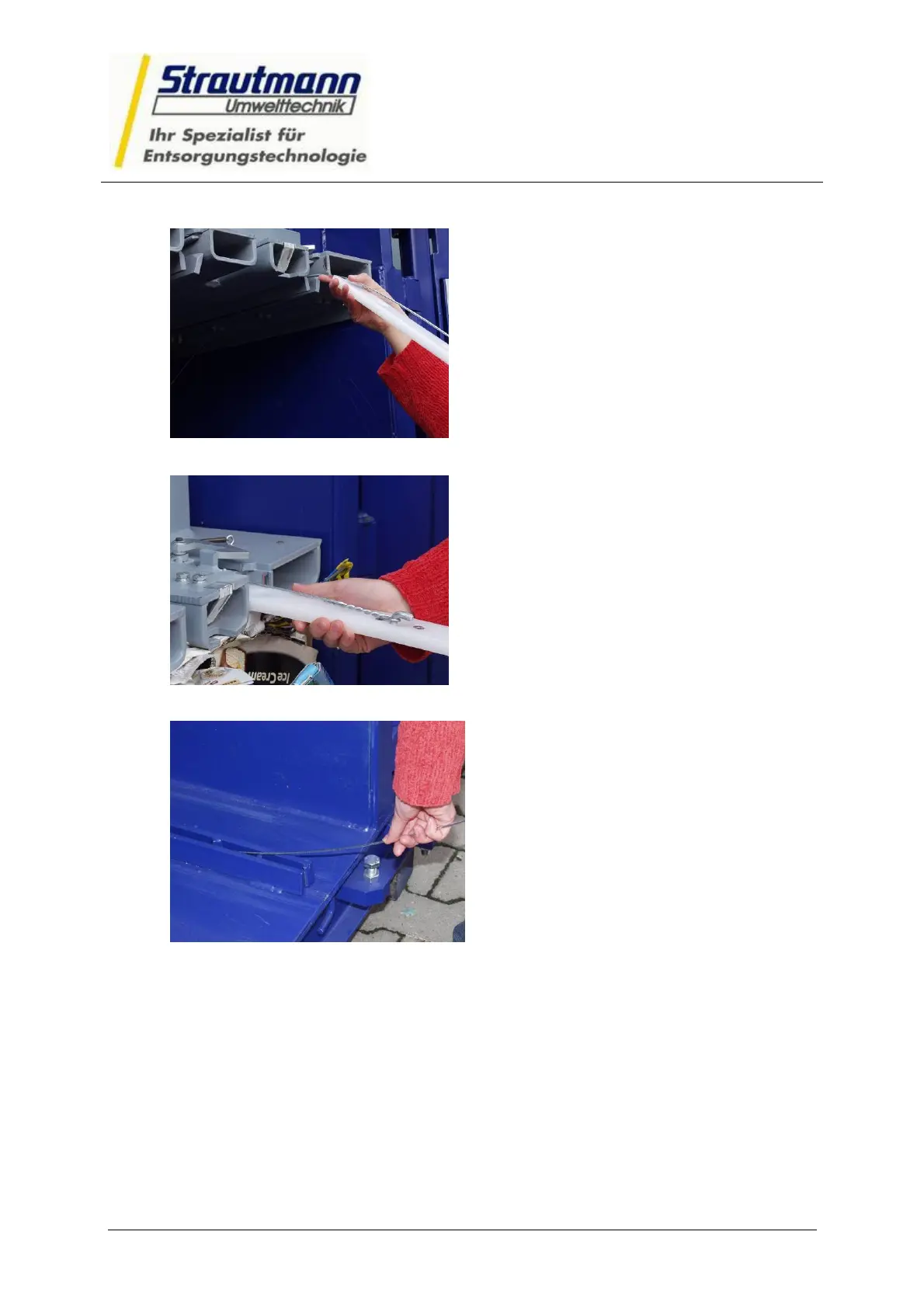

Bild 5-4 Attaching the wire pulling hook
● Slide the wire pulling as far in the
lead until he snaps
Bild 5-5 Insert the wire drawing hook
• Wire should face each other to
practice drawing the wire hooks
protrude downward into the
compression chamber
Bild 5-6 Insert the wir
● The wire will now project back into
the respective wire slots down. Now
the wire is inserted into the bottom oft
he wire guard as shown. Repeat this
step for each wire
● Close the bale chamber door (with the two-hand operation with hydraulic door
closure otherwise by handwheel)
● Turn the handwheel until the complete closure of the bale chamber door
● Take the ejector with the two-hand operation all the way down (the preferred
approach). Should not be above the ejector been lowered described, is closing
the charging hole, the ejector down automatically in its basic position.
