STRIDER MX
18.3.3 Wheels - removal and replacement - 4-wheel version
Tools required:
1 x socket spanner, size 19 mm
Removing the wheels:
NOTE
• Do not use force to remove the
wheels from the axles.
Your specialist dealer has the
necessary special tools.
• The handbrake brake drum is
bolted to the rear wheel on the
4-wheel Strider.
Repairs - mechanics
Front wheel
Rear wheel
Loosen the self-locking nut (2) for the
wheel fastening (size 19 mm).
Secure the Strider against rolling away.
Lift the Strider and support it
(see chapter 19.0).
Remove the self-locking nut for the
wheel fastening (size 19 mm).
Pull the wheel off the stem.
➨
➨
➨
➨
➨
Removing the wheels:

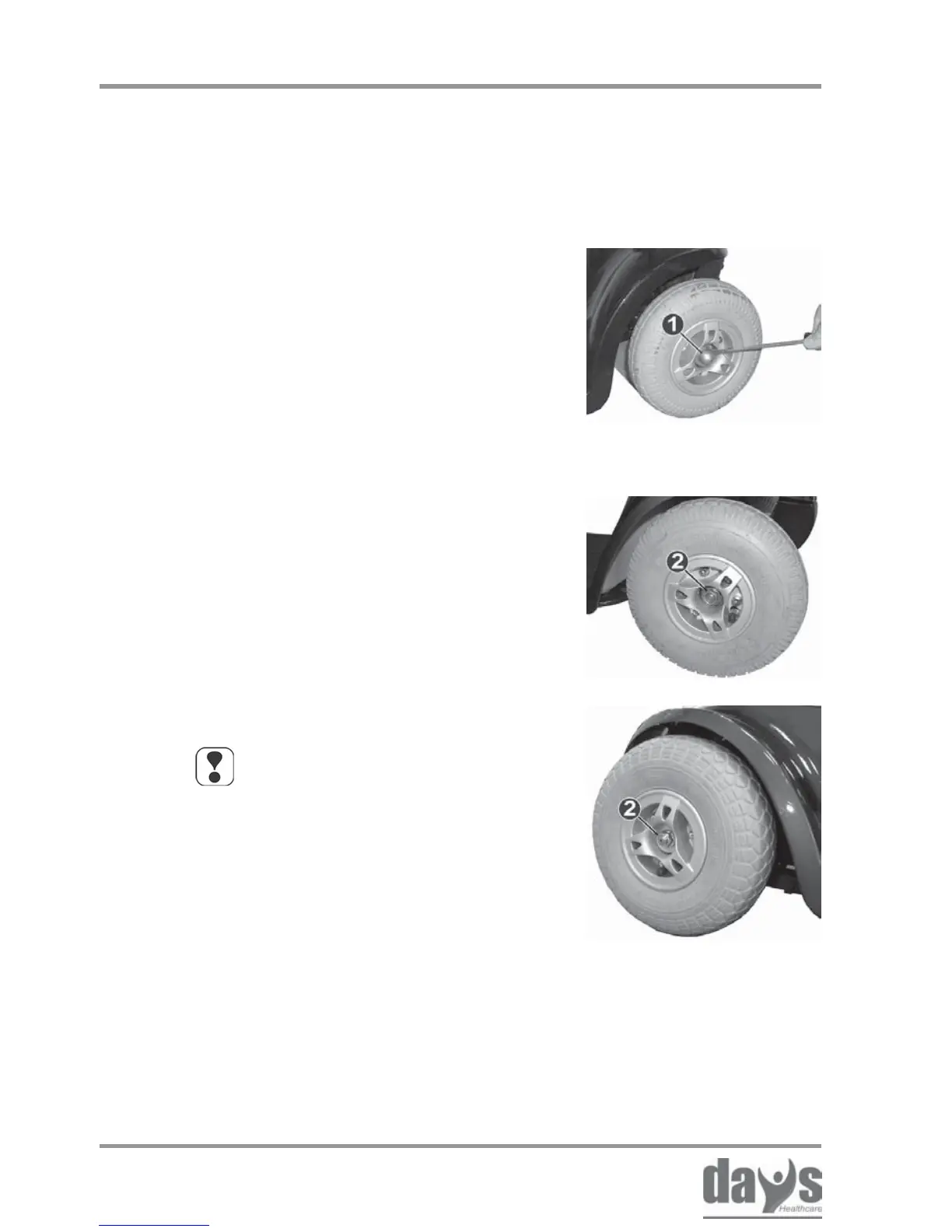

Remove the wheel fixing protective cap
(1) with a screwdriver.
➨
