STRIDER MX
18.6 Fuses
Repairs - fuses
(1) 2 A fuse = power supply to tiller head.
(2) 10 A fuse = charging socket
(3) 10 A fuse = Light
The Strider is fitted with the following
fusible fuses.

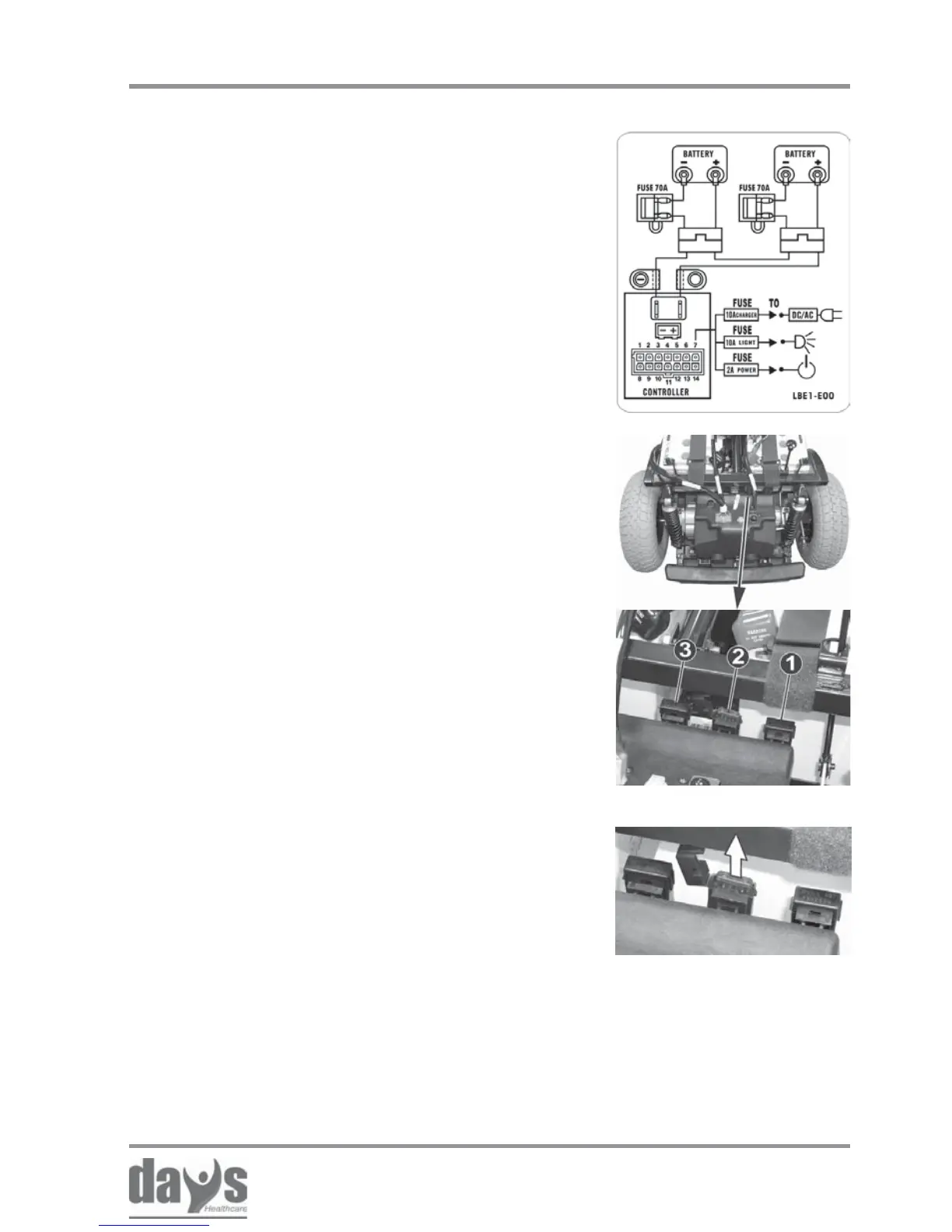

A wiring diagram with fuse sizes is
located on the control unit cover.
Wiring diagram
To replace Fuse:
Open fuse holder.
Pull out fuse and replace it.
Close fuse holder.
➨
➨
➨
