90
Issued: 24.02.2005

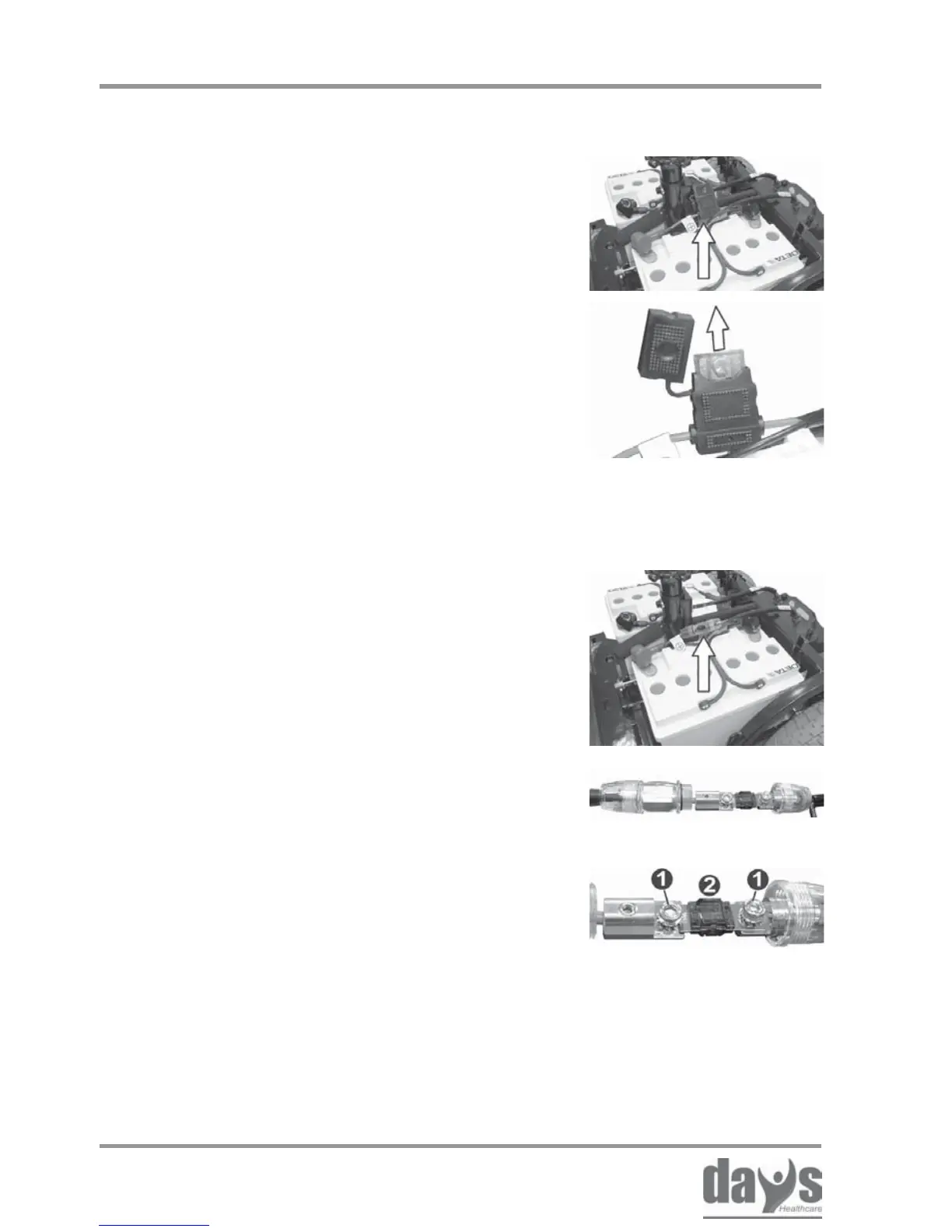

STRIDER MX Repairs - fuses
3 types of battery fuses are used.
Type 1:
• 70 A fuse = plug-in fuse -
Fuse holder is in the positive
pole cable of the batteries
To replace Fuse:
Open fuse holder.
Pull out fuse and replace it.
Close fuse holder.
➨
➨
➨
Type 2:
• 70 A fuse = strip fuse -
Fuse holder in the plus pole
cable of the batteries
To replace Fuse:
Unscrew fuse housing.
Pull out fuse holder.
Loosen both clamping screws
(1, SW 4 mm) of the strip fuse.
Replace fuse strips (2) and tighten
clamping screws.
Screw together fuse housing.
➨
➨
➨
➨
➨
Battery fuse: type 2
Battery fuse: type 1
