Strider MX 4 - After Transport - Reassembly; Engaging the drive unit to the chassis

59
Issued: 24.02.2005
STRIDER MX
Working step summary:
1. Re-couple the drive unit
2. Fold the tiller up again
3. Inserting the brake cable
4. Insert the batteries and secure with the straps
5. Fit the rear panelling in place
6. Fit the seat.
NOTE
• All cable connection plugs can only
be reconnected in one position (anti-
rotation protection).
• When re-connecting the plugs,
ensure that the locking device
engages correctly.

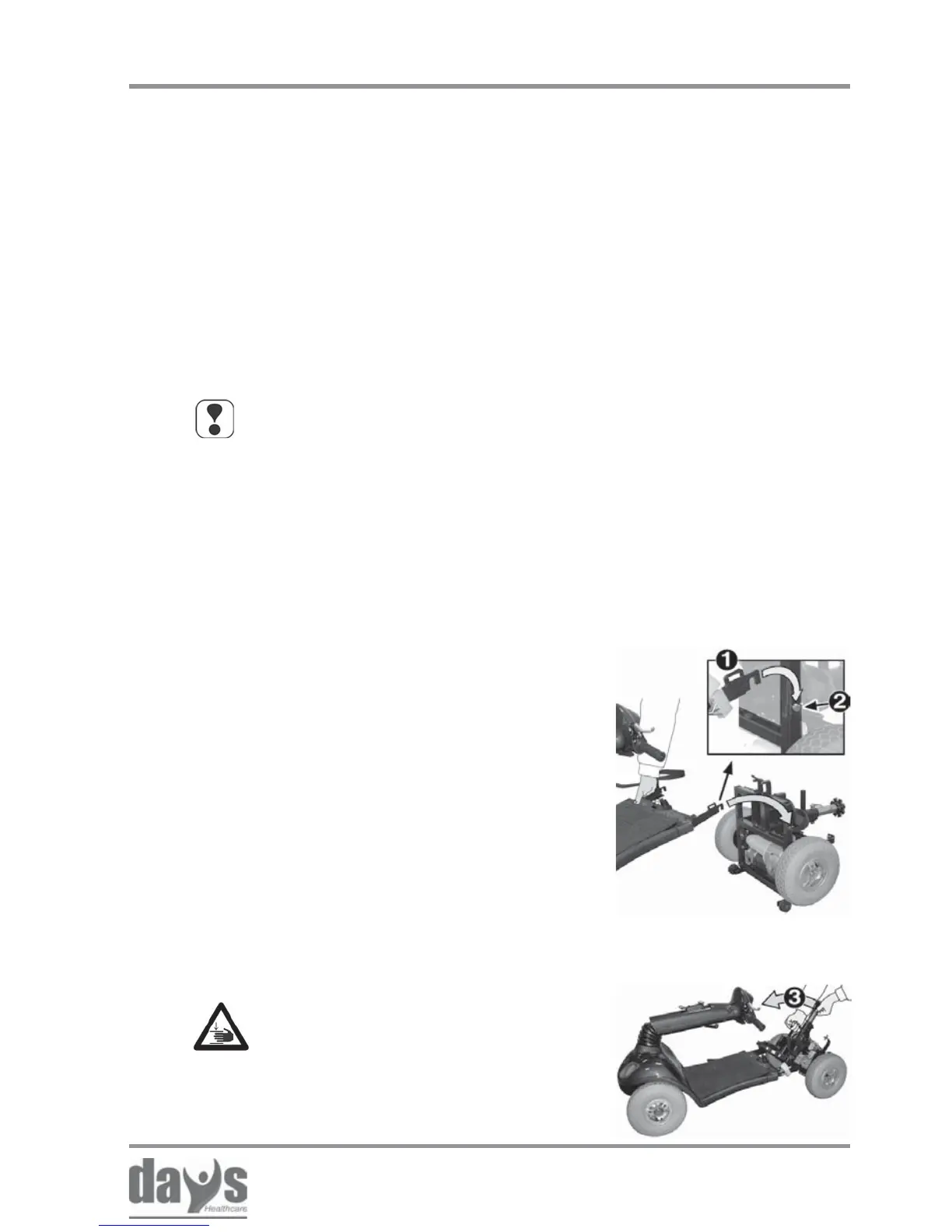

Connecting the chassis
Locate the frames (1) over the drive unit
holding bolts (2).
➨
Fold the drive unit forwards (3).➨ Folding the drive unit in
Transporting the Strider
14.4 After Transport - Reassembly
14.4.1 Engaging the drive unit to the chassis
Clamping and crushing
hazard!
Pay particular attention to hazards
caused by trapping and crushing
while carrying out this work.
