Strobl Strocomp 433 - Page 37

General Technical Description
3 — 6
02_0460_0802GB
5
5
1 1
1
1
3
2
4
4
2
6
77
6
10
11
9 8
3

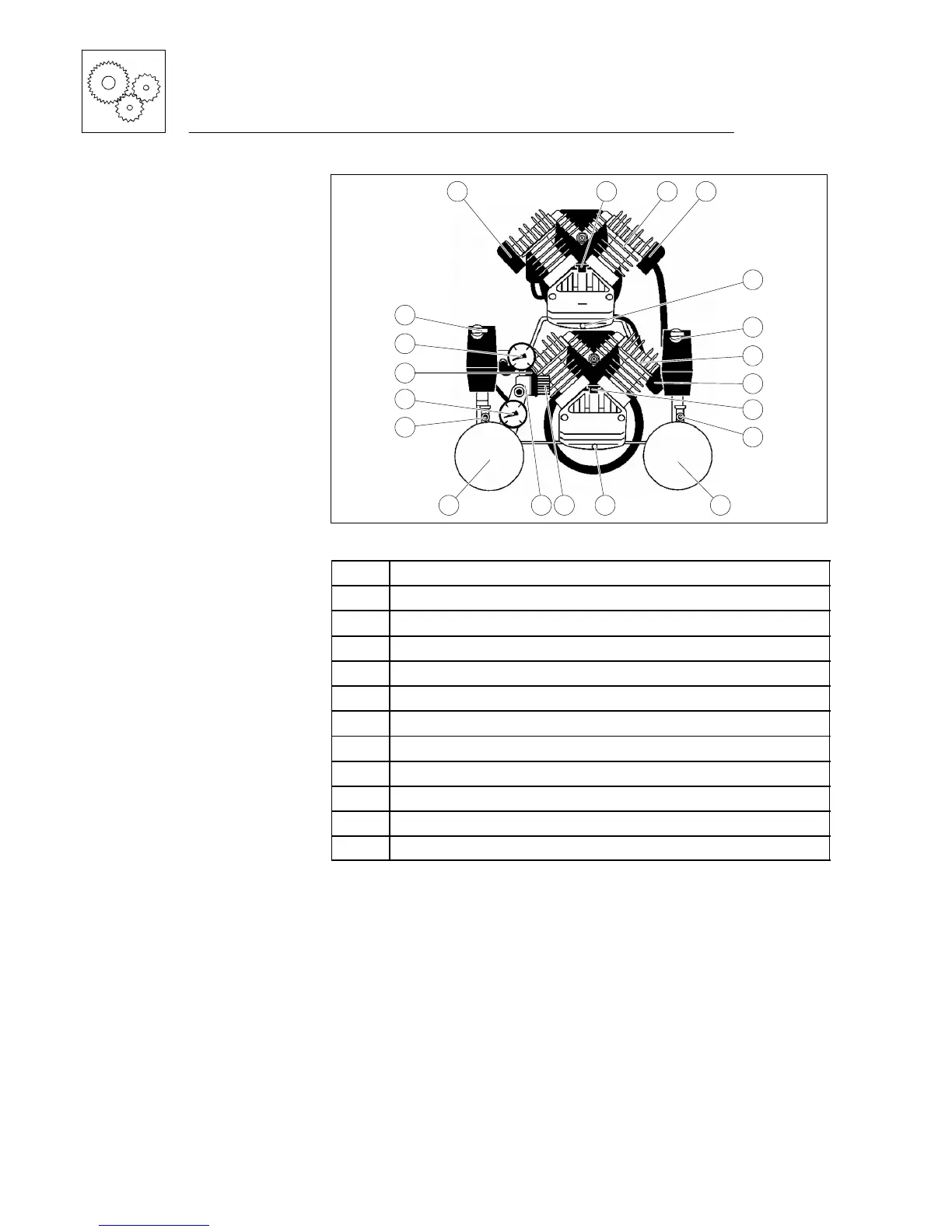

View from front
Item
Designation
1 Air filter
2 Oil filler with oil dipstick
3 Compressor
4 Oil drain plug
5 Control cabinet
6 Drain valve
7 Pressure tank
8 ”Working pressure” handwheel
9 Pressure-reducing valve
10 ”Tank pressure” gauge
11 ”Working pressure” gauge
