Maintenance Chart
8 — 9
WK43_040_0802GB
Check the compressor oil level as follows:
1
2
Different models available

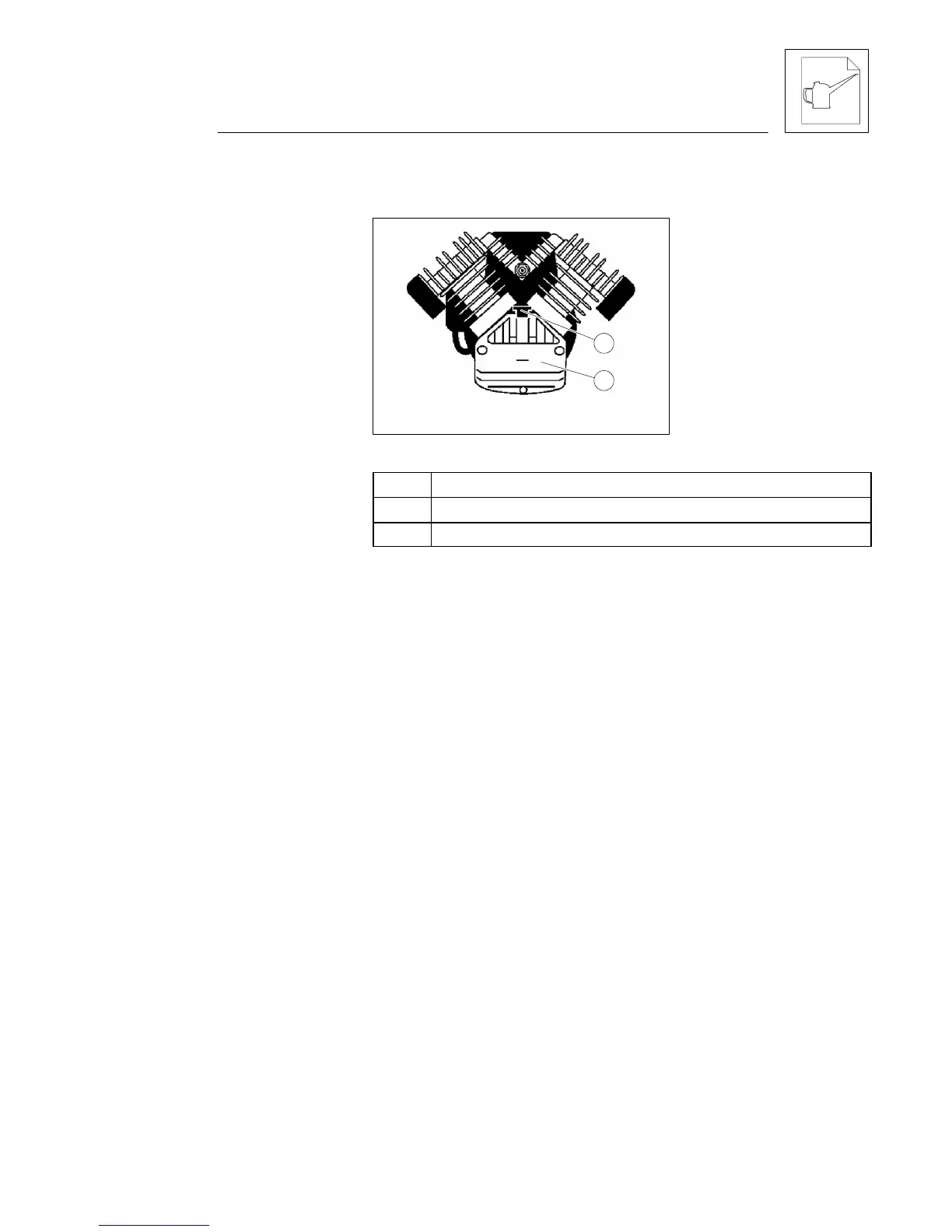

Item Designation
1 Oil filler with oil dipstick
2 Compressor (depending on the model)
" Screw the oil filler with oil dipstick into the top of the
compressor.
" Pull out the oil dipstick.
" Wipe the oil dipstick clean with a lint-free cloth.
" Insert the oil dipstick again.
" Remove the oil dipstick and check the oil level.
" The oil level must be between the markings and as close as
possible to the ”Max” marking.
" Top up the compressor oil if necessary.
Refer also to chapter: ”General Technical Description” -- section:
”Technical data” for more information on fluid capacities.
" Insert the oil dipstick again.
" Screw the oil filler firmly back in place.
