3. CONNECTIONS
This section explains the most important functions to ensure that you can directly watch television with
your new receiver. Please note additional adjustments may be required.
NOTE: Do not connect the receiver to the main power yet.
3.1 Connecting the Antenna and LNB (Low Noise Block) to the receiver
Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality
coaxial cable and suitable ‘F-connector’ plugs.

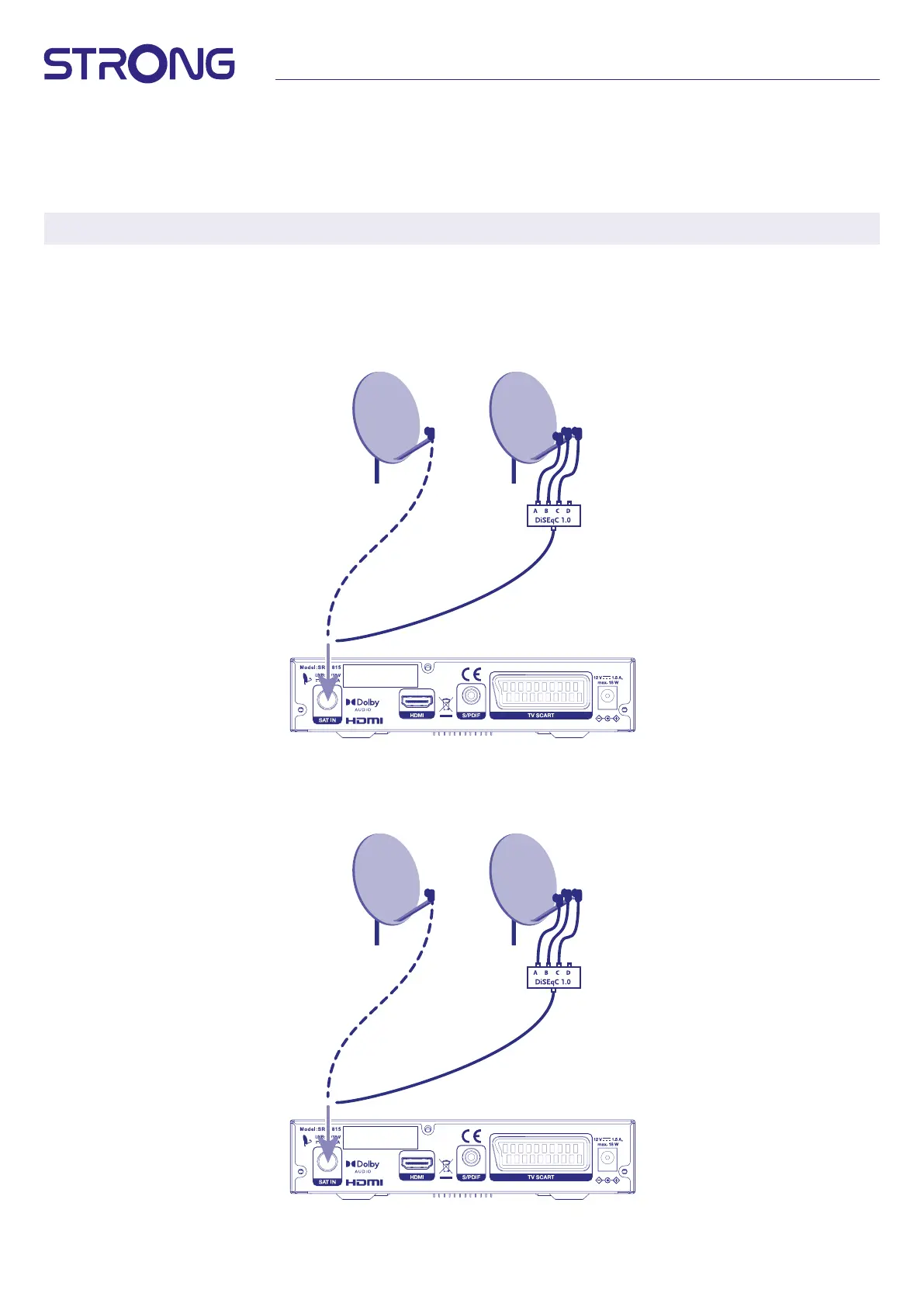

Fig. 7 a
