Low-temperature polishing unit

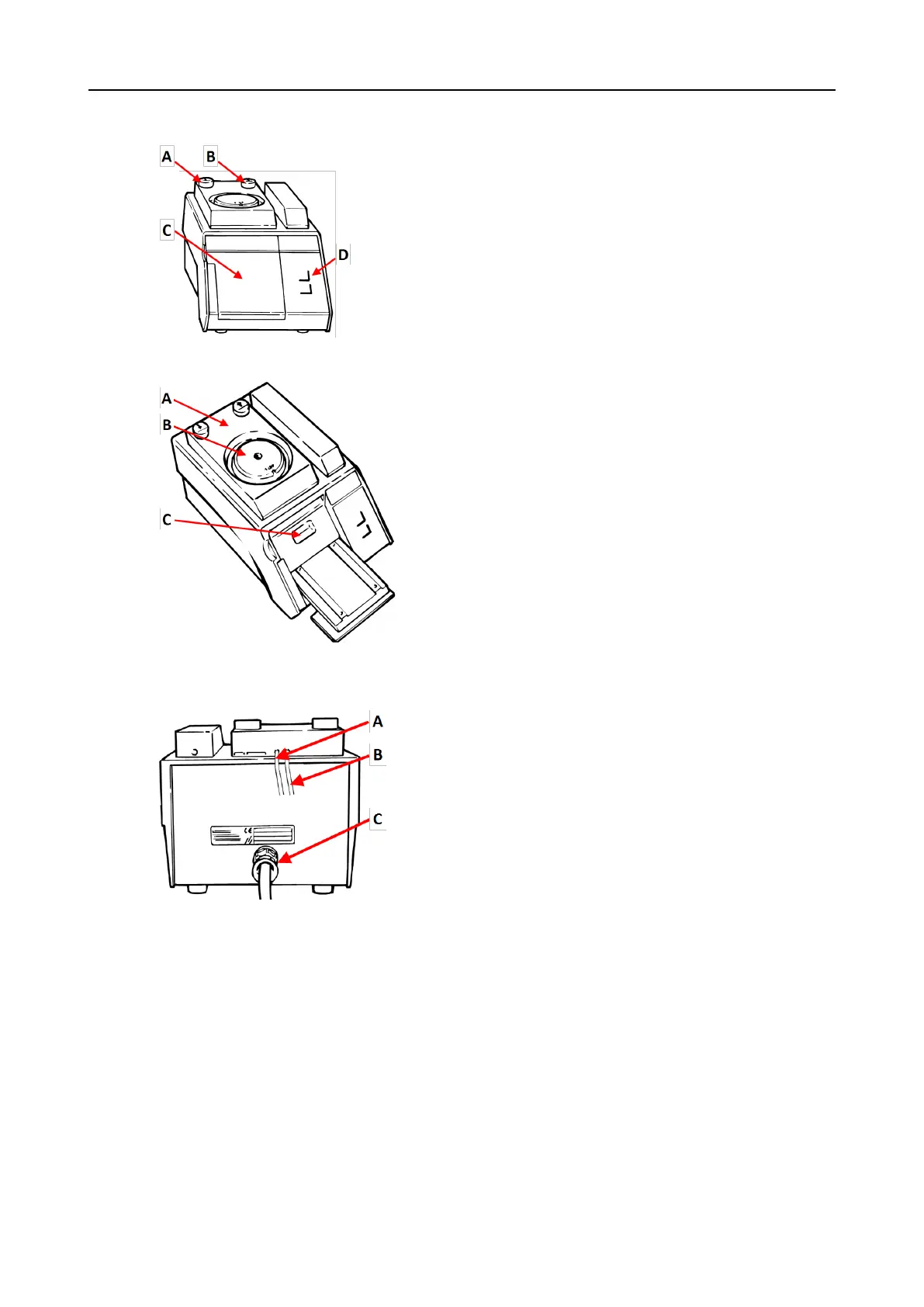

Front view
Shown without protective cover
A Down button - Polishing table
B Up button - Polishing table
C Electrolyte compartment cover
D Control panel
Top view
Shown without protective cover
A Polishing table
B Mask
C Electrolyte container
Rear view - Low-temperature polishing
unit
Shown without protective cover
A Water inlet - Cooling unit
B Water outlet - Cooling unit
C Communication cable to control unit
Control unit
See the manual supplied with the specific equipment.
