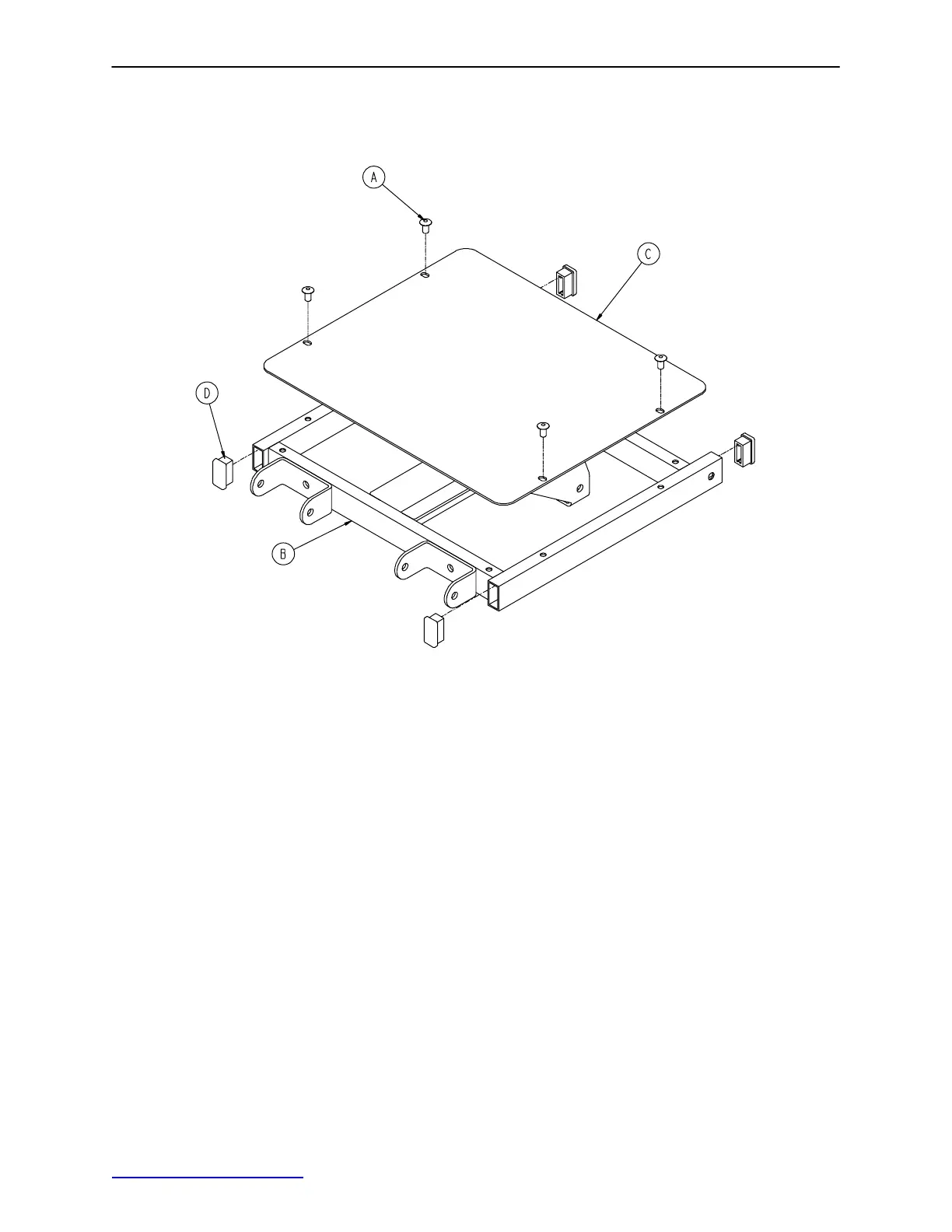

26” Thigh Section
Assembly
102
Assembly part number 0785−014−610 (reference only)
Item
Part No.
Part
Name
Qty
.
A
0025−079−000
Rivet
4
B
0785−014−615
Thigh Section Weldment
1
C
0785−014−619
Thigh Section Skin
1
D
1010−032−066
Rectangular Hole Plug
4
Return to Table of Contents
102
104
Table of Contents
Table of Contents
2
Introduction
5
Specifications
5
Warning / Caution / Note Definition
5
Summary of Safety Precautions
6
Symbols
7
Preventative Maintenance
8
Checklist
8
Cleaning
9
Service Information
11
Caster Cover Installation and Removal
11
Caster Removal
11
Brake Rod Removal
12
Side Control Brake Rod Removal
12
Release Pedal Adjustment
13
Foot End Release Pedal Replacement
13
Foot End Release Pedal Rod Removal
13
Brake Ring Removal
14
Fifth Wheel Assembly Removal
14
Litter Top Removal
15
Jack Descent Rate Adjustment
15
Removal of Excess Air from the Hydraulic System
15
Head End Hydraulic Jack Removal
16
Foot End Hydraulic Jack Removal
16
Gatch Release Handle Replacement
17
Gatch Valve Body Replacement
17
Siderail Assembly Removal and Replacement
17
Pneumatic Cylinder Replacement
19
Litter Corner Cover Replacement
19
IV Pole Replacement
20
Oxygen Bottle Holder Replacement
20
Static Discharge Precautions
21
Scale Display Box Replacement
22
Scale Display Cover Replacement
23
Scale Display Lens Replacement
23
Scale Display Battery Holder Replacement
24
Load Cell Replacement
25
Scale System Diagnostics
26
Scale System Batteries
27
Quick Reference Replacement Parts List
28
Assembly Drawings and Parts Lists Fifth Wheel Base Assembly
30
Brake Rod Assembly
35
Caster Assembly
38
Side Control Brake Assembly
39
Brake Rod/Side Control Assembly
42
Side Control Brake Sub−Assembly
43
Standard Brake Assembly, Colored Components
44
Side Control Brake Assembly, Colored Components
44
Dual Side Hydraulics Assembly
45
Standard Hydraulics Assembly, Colored Components
48
End Control Hydraulics Assembly, Colored Components
48
Lowering Pedal Assembly
49
Head End Pump Pedal Assembly
50
3−Sided Hydraulics Assembly
51
Foot End Release Pedal Assembly
53
Foot End Pump Pedal Assembly
54
Jack Base Assembly
55
Constant Descent Jacks
56
Constant Descent Jack Assembly
57
Base Labeling Assembly, Department Labels
66
Siderail Assembly
69
Gatch Valve Body Assembly
99
Gatch Cylinder/Hose Assembly
100
Gatch Pump Assembly
101
Gatch Release Handle Assembly
102
Thigh Section Assembly
108
Calf Section Assembly
108
Drop Seat Fowler Assembly
111
Corner Cover Assembly
117
Slider Board Assembly
121
Push Handle Assembly
125
No Push Handle Option
126
Scale Option − 26" Litter with Stationary Foot Section
127
Scale Option − 30" Litter with Stationary Foot Section
135
Scale Display Assembly
137
Defibrillator Tray Assembly
159
Defibrillator Tray/Foot Extender/Foot Board Assembly
160
Serving Tray Assembly
161
Foot Board/Serving Tray Holder
162
Foot Board/Chartholder Assembly
163
Mattresses and Siderail Pads
164
Warranty
166
Obtaining Parts and Service
166
Service Contract Coverage
166
Return Authorization
167
Freight Damage Claims
167
