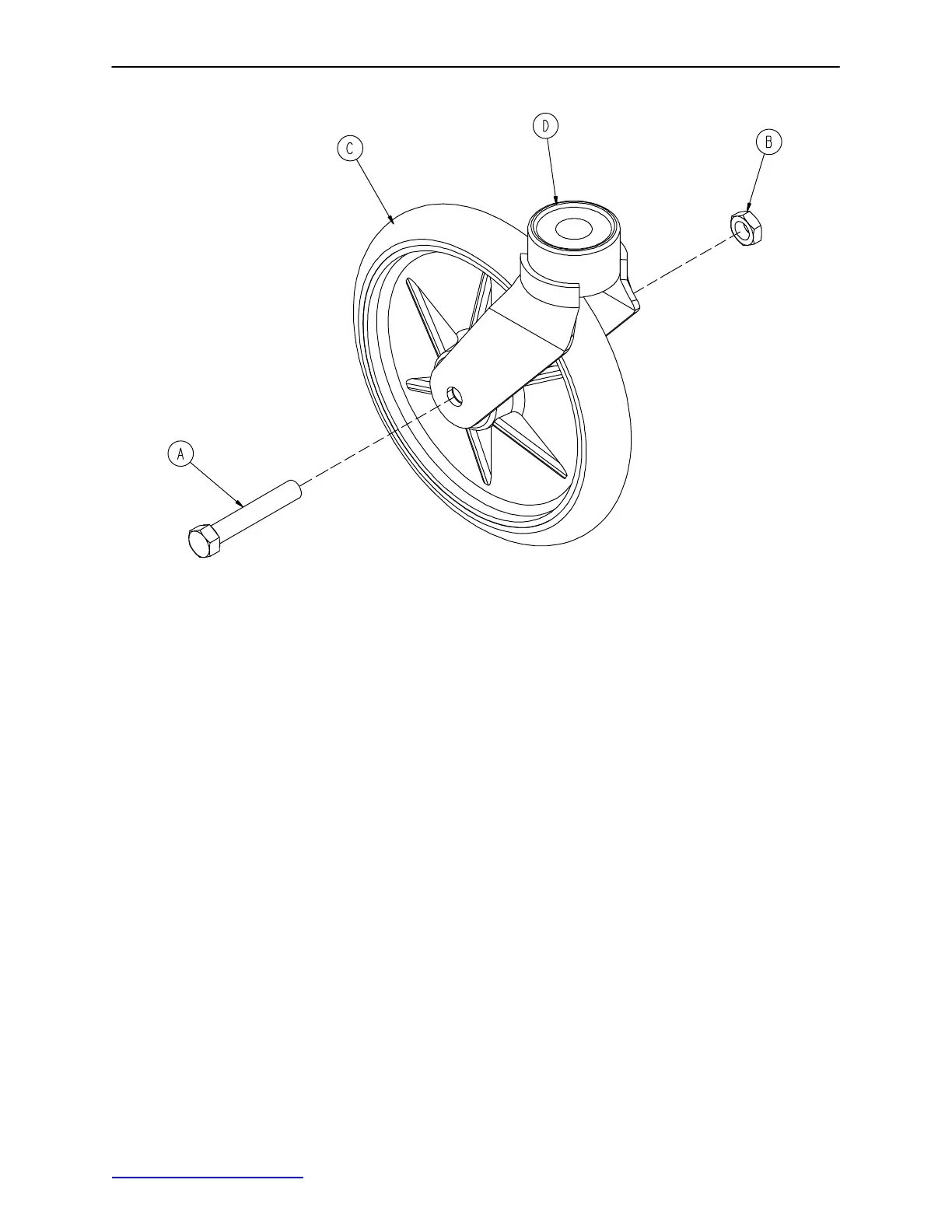

0753−010−220 8” Caster
Assembly
37
Item
Part No.
Part
Name
Qty
.
A
0003−099−000
Hex Hd. Cap Screw
1
B
0016−060−000
Centerlock Nut
1
C
0753−003−215
Wheel
1
D
0753−010−021
Caster Horn w/Bearing
1
Return to Table of Contents
