Stryker M Series Maintenance Manual

Service Information
19
IV POLE REPLACEMENT
Required Tools:
T25 Torx Utility Knife 1/2” Socket
3/8” Drive Ratchet
1. Using a utility knife, pry off the three hole plugs in the top of the litter corner cover.
2. Using a T25 Torx, remove the 3 screws holding the top and bottom covers together and pull apart the
cover.
3. Remove the bolt holding the IV pole socket to the litter frame and remove the IV pole.
4. Reverse to install the new IV pole and reinstall the litter corner cover.
OXYGEN BOTTLE HOLDER REPLACEMENT
Required Tools:
3/8” Drive Ratchet 1/2” Socket
1. Using the foot pedal, raise the litter to maximum height. Raise the Fowler to 90 degrees.

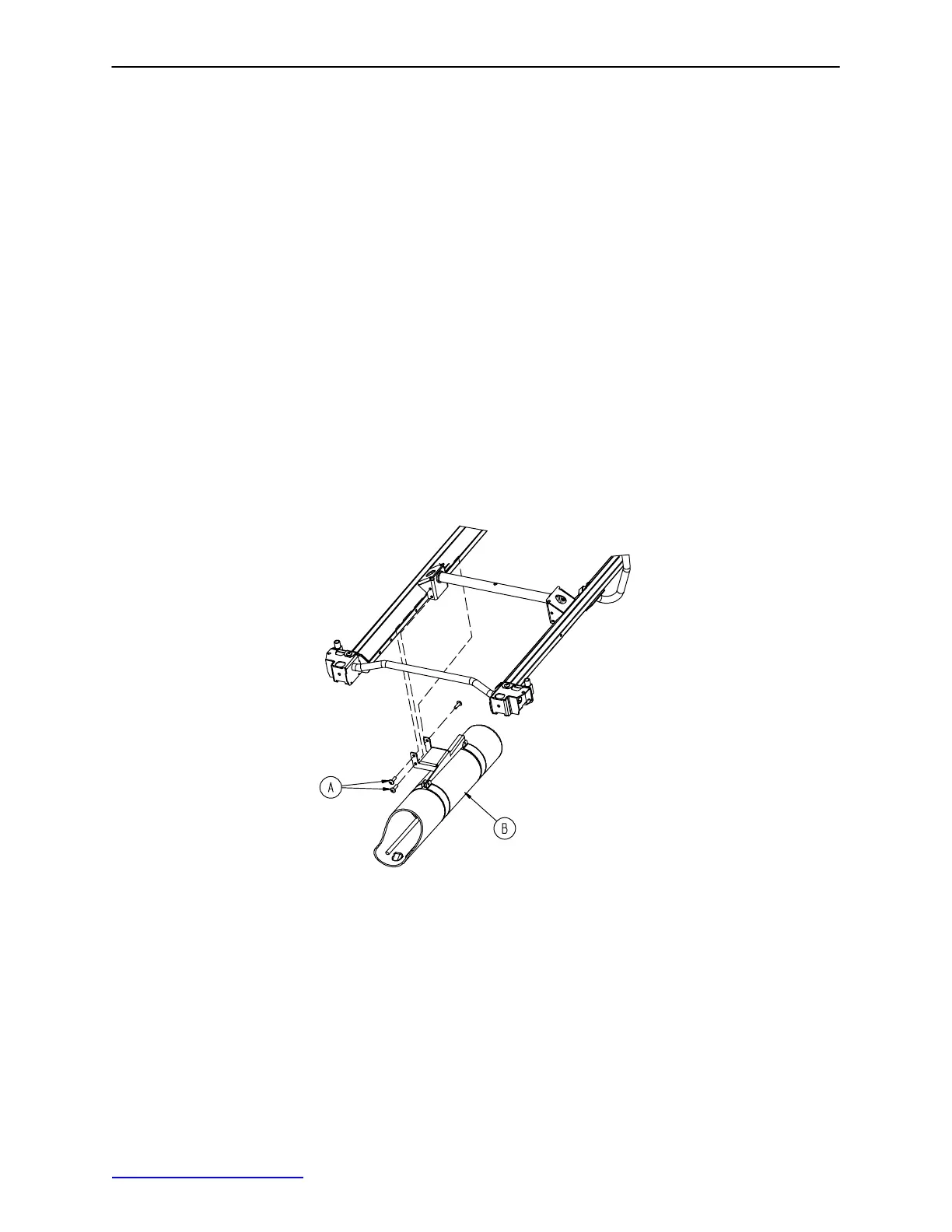

2. Remove the 3 bolts (A) holding the O2 bottle bracket (B) to the litter frame on the patient’s left side and
discard the bolts and bottle holder assembly.
3. Use the 3 bolts provided in the kit to attach the new bottle holder assembly to the litter frame.
