Stryker M Series - Thigh Section Assembly; Calf Section Assembly

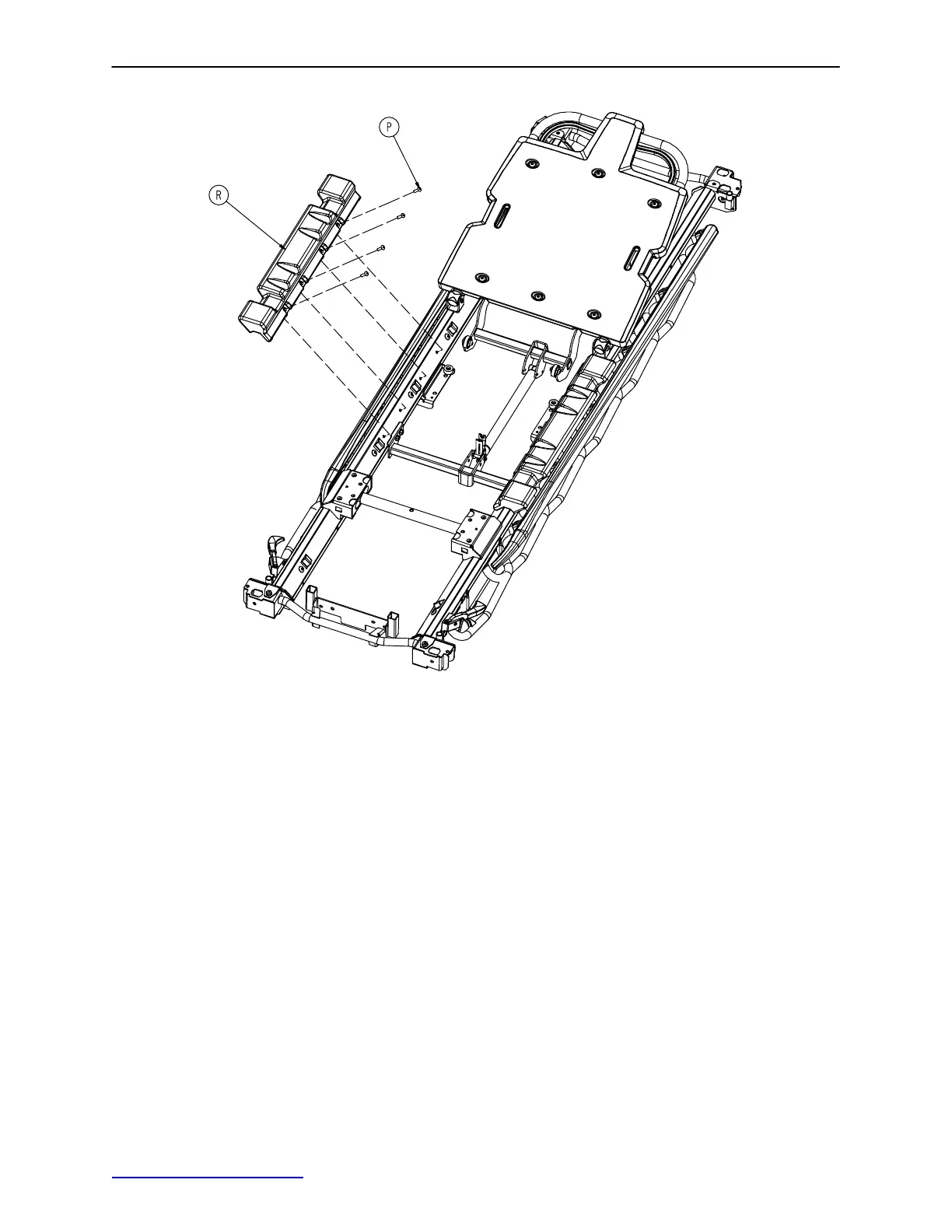

26” Drop Seat Fowler/Stationary Foot Assembly
107
Item Part No. Part Name Qty.
A 0023−288−000 Hex Washer Hd. Screw 8
B 0026−316−000 Clevis Pin 2
C 0026−364−000 Clevis Pin 2
D 0026−334−000 Clevis Pin 2
E 0027−020−000 Rue Ring Cotter 6
F 0785−013−034 Drop Seat Pivot Bracket, Rt. 1
G 0785−013−039 Drop Seat Pivot Bracket, Lt. 1
H(page 92) Seat Section Assembly 1
J(page 102) Thigh Section Assembly 1
K 0785−015−016 Left Calf Support 1
L 0785−015−018 Right Calf Support 1
M(page 104) Calf Section Assembly 1
N 0025−079−000 Rivet 2
P 0025−147−000 Rivet 8
R 0785−010−049 Mattress Support Block 2
S(page 110) Drop Seat Fowler Assembly 1
T 0785−034−005 Velcro Pile 2
