Stryker M Series - Gatch Valve Body Assembly

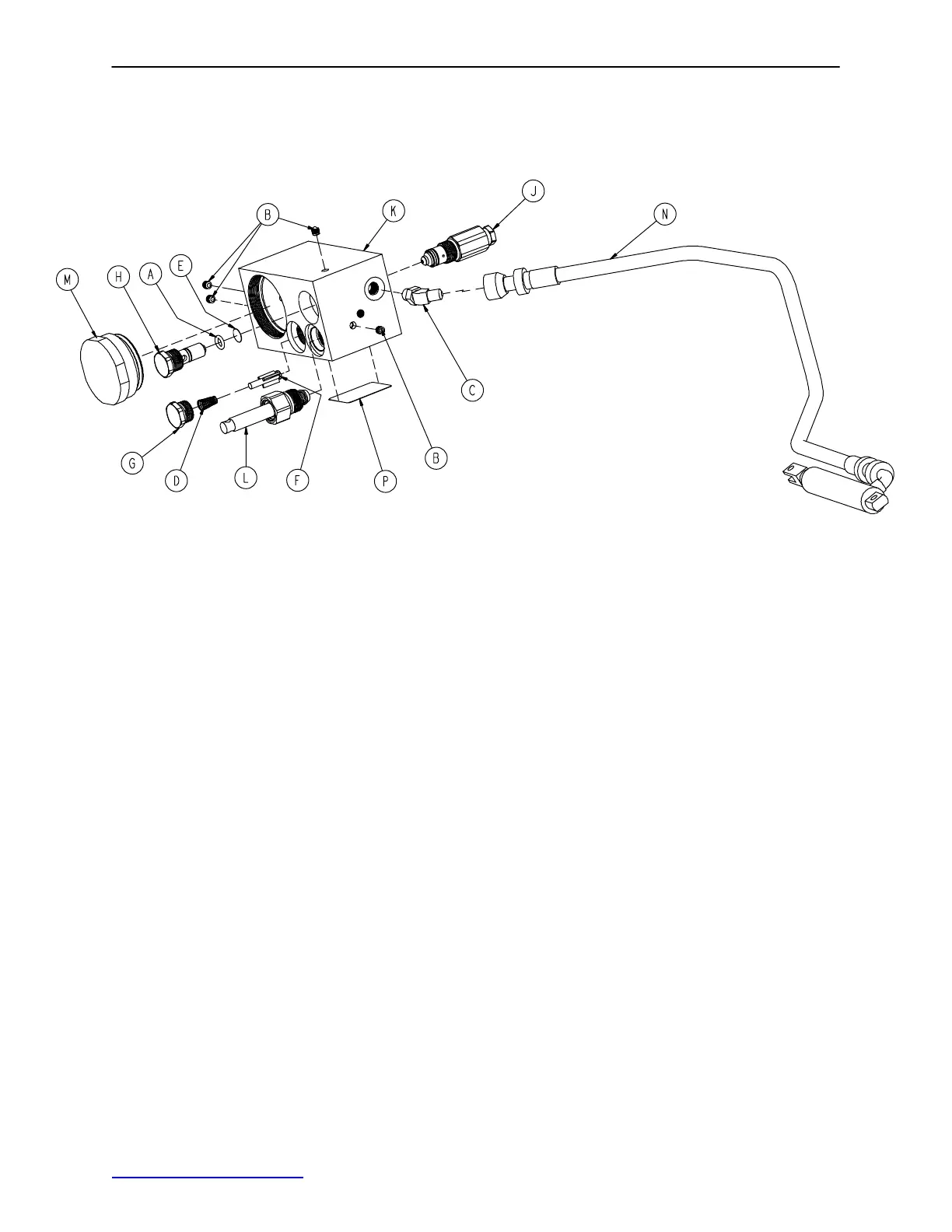

Gatch Valve Body Assembly
98
Assembly part number 0785−014−043 (reference only)
Item Part No. Part Name Qty.
A 0046−004−000 O−Ring 1
B 0048−021−000 CV Plug 4
C 0048−175−000 45_ Straight Thread Elbow 1
D 0390−002−134 Conical Compression Spring 1
E 0715−001−321 Check Valve Screen 1
F 0715−001−341 Poppet 1
G 0753−002−047 Hex Hd. Plug 1
H 0753−002−052 Check Valve Assembly 1
J 0753−002−065 Release Valve Assembly 1
K 0785−014−036 Gatch Valve Body 1
L 0785−014−051 Pump Ram Assembly 1
M 0785−014−073 Gatch Plug 1
N(page 99) Cylinder/Hose Assembly 1
P 0785−014−114 Serial Number Label 1
