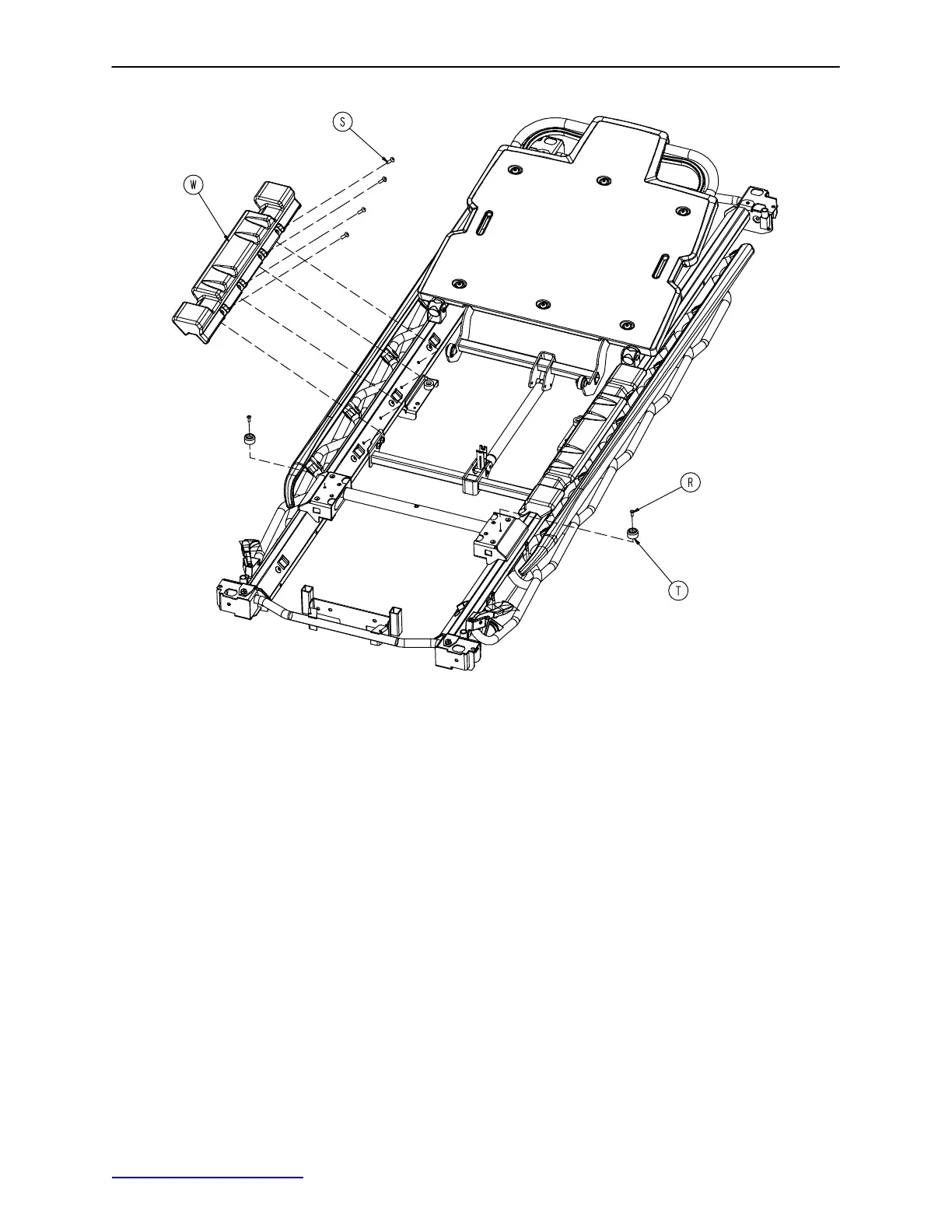

30” Drop Seat Fowler/Knee Gatch Assembly
115
Item Part No. Part Name Qty.
A 0023−288−000 Truss Hd. Machine Screw 8
B 0026−316−000 Clevis Pin 4
C 0026−364−000 Clevis Pin 2
D 0026−334−000 Clevis Pin 2
E 0027−020−000 Rue Ring Cotter 8
F 0785−013−034 Drop Seat Pivot Bracket, Rt. 1
G 0785−013−039 Drop Seat Pivot Bracket, Lt. 1
H(page 93) Seat Section Assembly 1
J(page 96) Gatch Assembly 1
K(page 103) Thigh Section Assembly 1
L(page 105) Calf Section Assembly 1
M 0785−015−309 Prop Bar 1
N 0785−015−012 Calf Bumper 2
P 0025−079−000 Rivet 4
R 0025−133−000 Rivet 2
S 0025−147−000 Rivet 8
T 0056−023−000 Recessed Bumper 2
W 0785−010−049 Mattress Support Block 2
X(page 110) Drop Seat Fowler Assembly 1
Y 0785−034−005 Velcro Pile 2
