Scale Option − 26” Litter with Drop Seat or Knee Gatch
131
Foot End

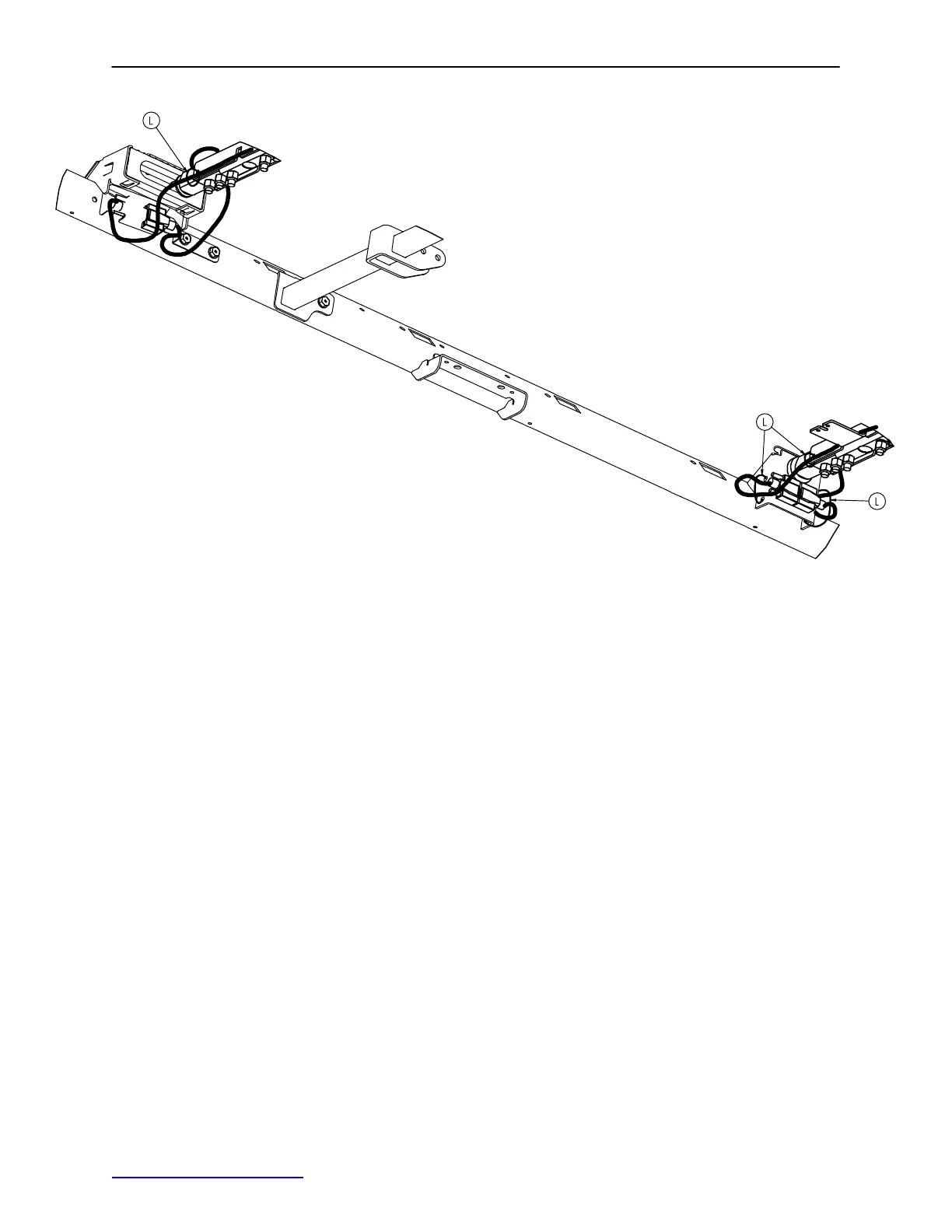

Patient, Right Side Cable Routing
Bottom View
Item Part No. Part Name Qty.
A 1070−137−001 Flange Eyelet 2
B 0013−038−000 External Tooth Lock Washer 1
C 0025−120−000 Rivet 2
D 0785−010−653 Foot End Cover, Scales 1
E 1070−010−052 Load Cell Cable Bracket, Rt. 1
F(page 132) Head End Lift Header 1
G(page 133) Foot End Lift Header 1
H 1070−037−903 Specification Label 1
J(page 142) Scale Display Assembly 1
K 1070−137−902 Scale Usage Label 1
L 3000−300−113 Cable Tie 12
M 1070−010−053 Load Cell Cable Bracket, Lt. 1
