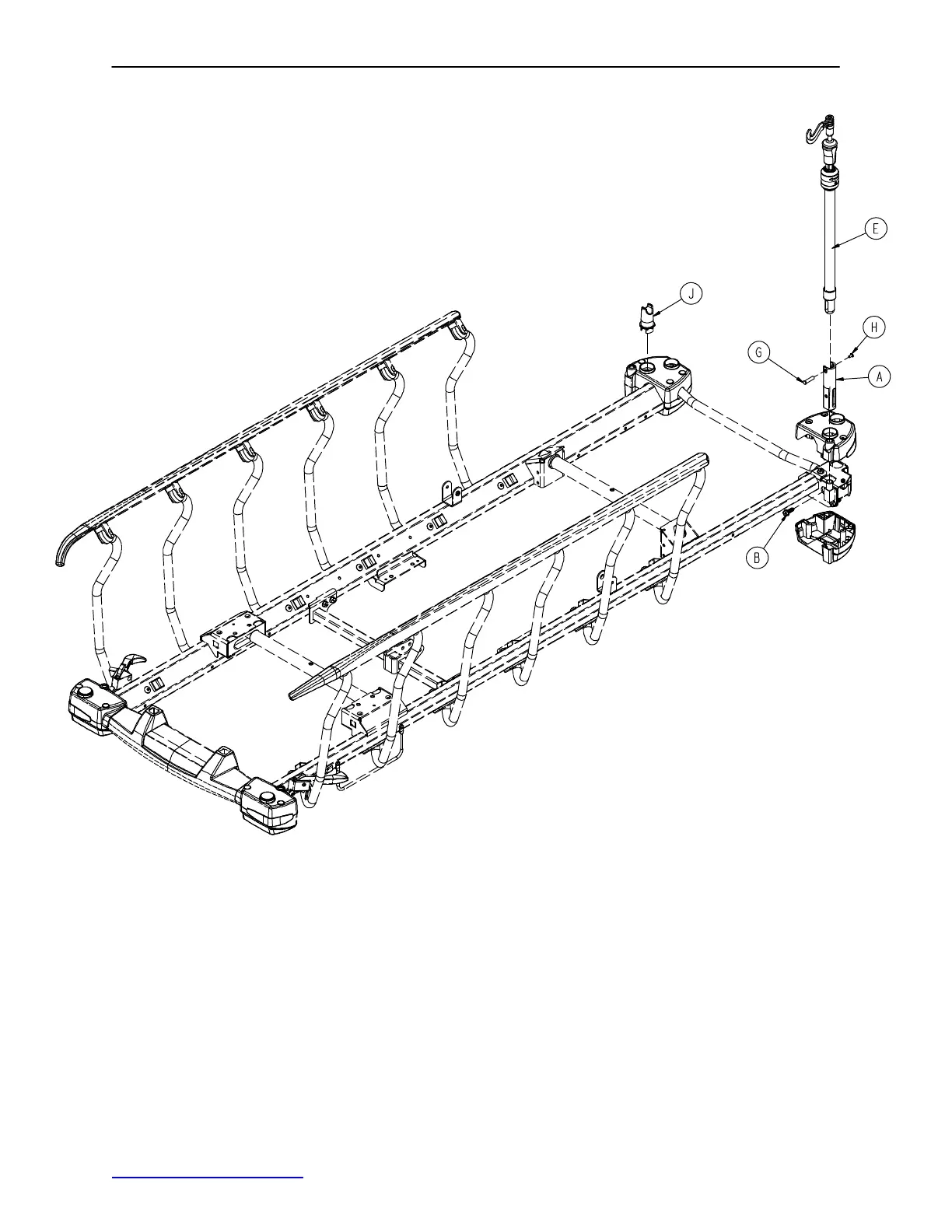

3−Stage IV Assembly
149
HEAD END
0785−035−642 3−Stage 26” IV, Head/Left 0785−035−342 3−Stage 30” IV, Head/Left
0785−035−637 3−Stage 26” IV, Head/Right 0785−035−337 3−Stage 30” IV, Head/Right
0785−035−644 3−Stage 26” IV, Foot/Left 0785−035−344 3−Stage 30” IV, Foot/Left
0785−035−639 3−Stage 26” IV, Foot/Right 0785−035−339 3−Stage 30” IV, Foot/Right
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 0785−010−020 IV Pole Socket 1 A 0785−010−020 IV Pole Socket 1
B 0023−288−000 Hex Washer Hd. Screw 1 B 0023−288−000 Hex Washer Hd. Screw 1
C(page 150) 26” 3−Stage IV Pole Ass’y 1 C (page 151) 30” 3−Stage IV Pole Ass’y 1
G 0785−048−025 Handle Pivot Pin 1 G 0785−048−025 Handle Pivot Pin 1
H 0025−079−000 Rivet 1 H 0025−079−000 Rivet 1
J 0785−035−004 IV Pole Support 1 J 0785−035−004 IV Pole Support 1
