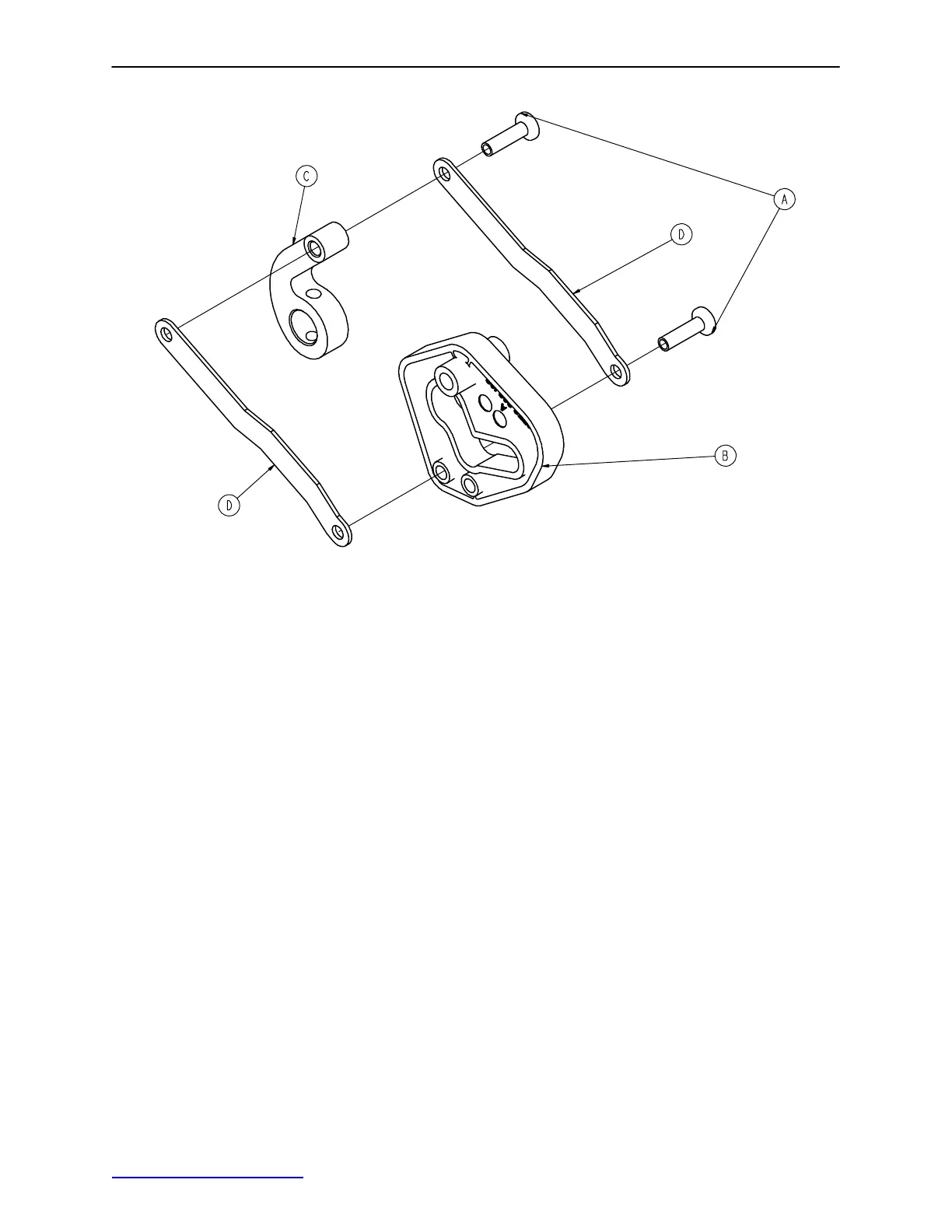

0853−003−010 Drive Link
Assembly
35
Item
Part No.
Part
Name
Qty
.
A
0753−003−098
Flat Hd. Semi−T
ubular Rivet
2
B
0753−203−102
Brake Cam
1
C
0853−003−01
1
Brake Rod Drive Link
1
D
0853−003−061
Brake Cam Drive Link
2
Return to Table of Contents
35
37
