Dual Sided Hydraulics Assembly
46

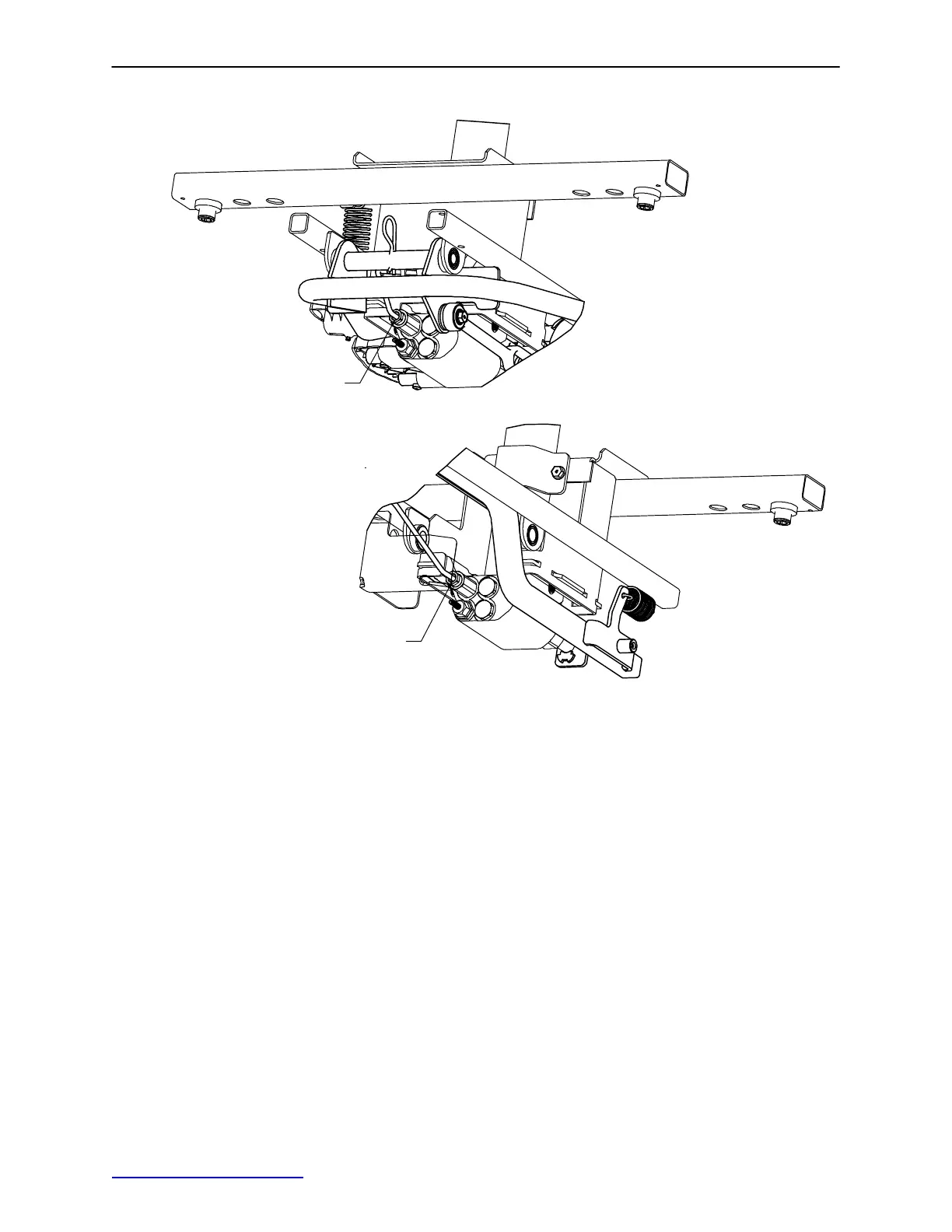

Insert Head End Release Rod
into Release Valve Assembly
as shown.
Insert Foot End Release Rod
into Release Valve Assembly
as shown.
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
C 0023−288−000 Hex Washer Hd. Screw 7
D 0027−020−000 Rue Pin Cotter 2
E 0027−031−000 Hair Pin Cotter 1
F 0853−005−009 Return Spring 3
G 0753−005−044 Pump Pedal Bushing 2
H 0753−005−089 Pump Ram Plug 2
J 0052−909−000 Clevis Joint 2
K 0853−004−014 Head End Release Rod 1
L 0853−004−015 Foot End Release Rod 1
M (page 48) Lowering Pedal Assembly 1
N 0853−005−035 Pump Connecting Tube Wldmt. 1
P 0853−005−074 Pivot Pin 1
R 0853−005−075 Pump Pedal Link 1
T(page 49) H/E Pump Pedal Assembly 1
V 0853−010−215 Release Rod Bracket 1
