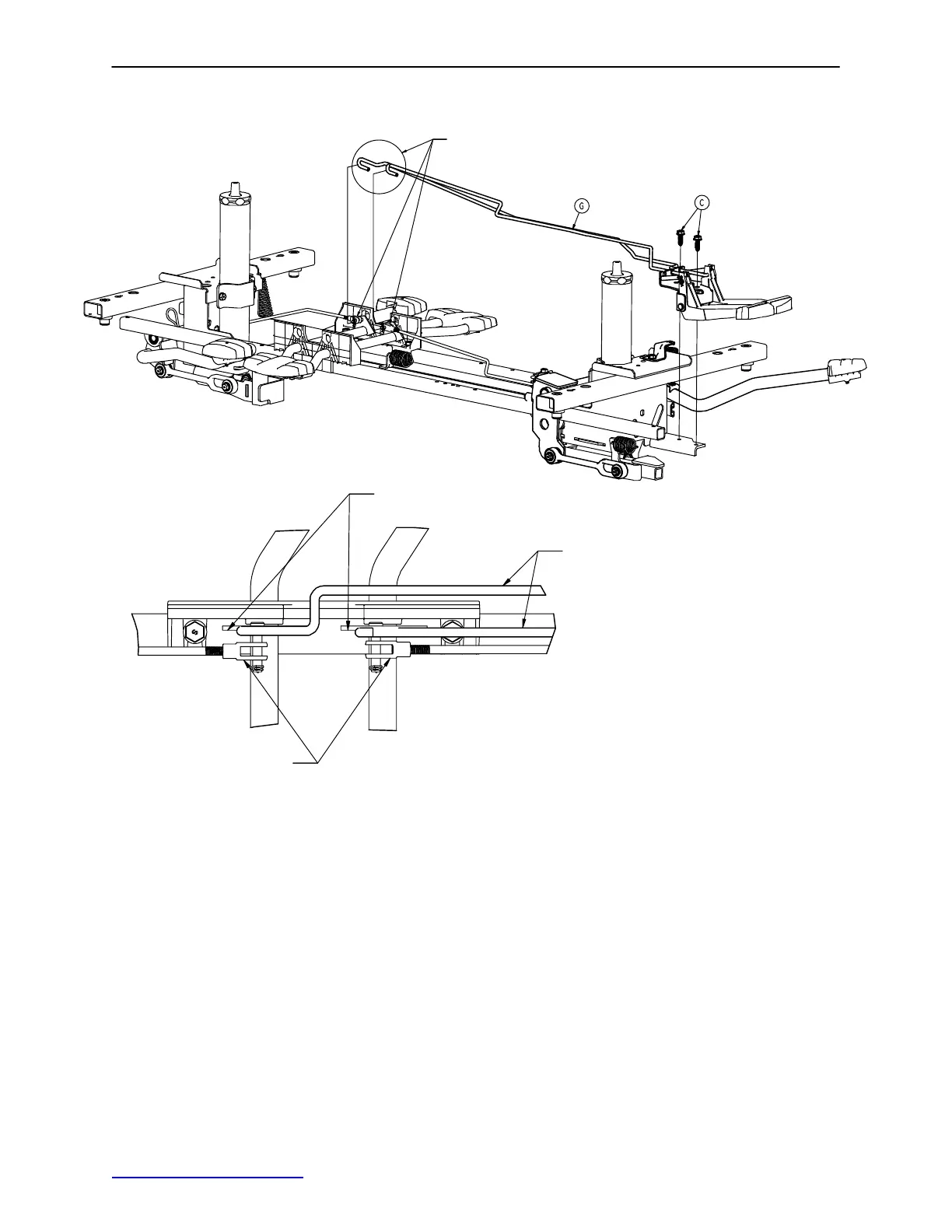

3−Sided Hydraulics Assembly
51
Release wire hooks to be assembled between head end and foot
end release wire adjustment clevis joint and release pedal brackets.
Refer to Detail A .
Release Pedal Brackets
Foot End Release Wires
Clevis Joints
Detail A
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
C 0023−288−000 Hex Washer Hd. Screw 5
D 0027−031−000 Cotter Pin 1
E 0853−005−009 Return Spring 1
F 0753−005−044 Pump Pedal Bushing 2
G(page 52) Foot End Release Pedal Ass’y 1
H 0853−005−011 Pump Pedal Spring Return Bracket 1
J 0853−005−074 Pivot Pin 1
K 0853−005−075 Pump Pedal Link 1
L(page 53) Foot End Pump Pedal Ass’y 1
