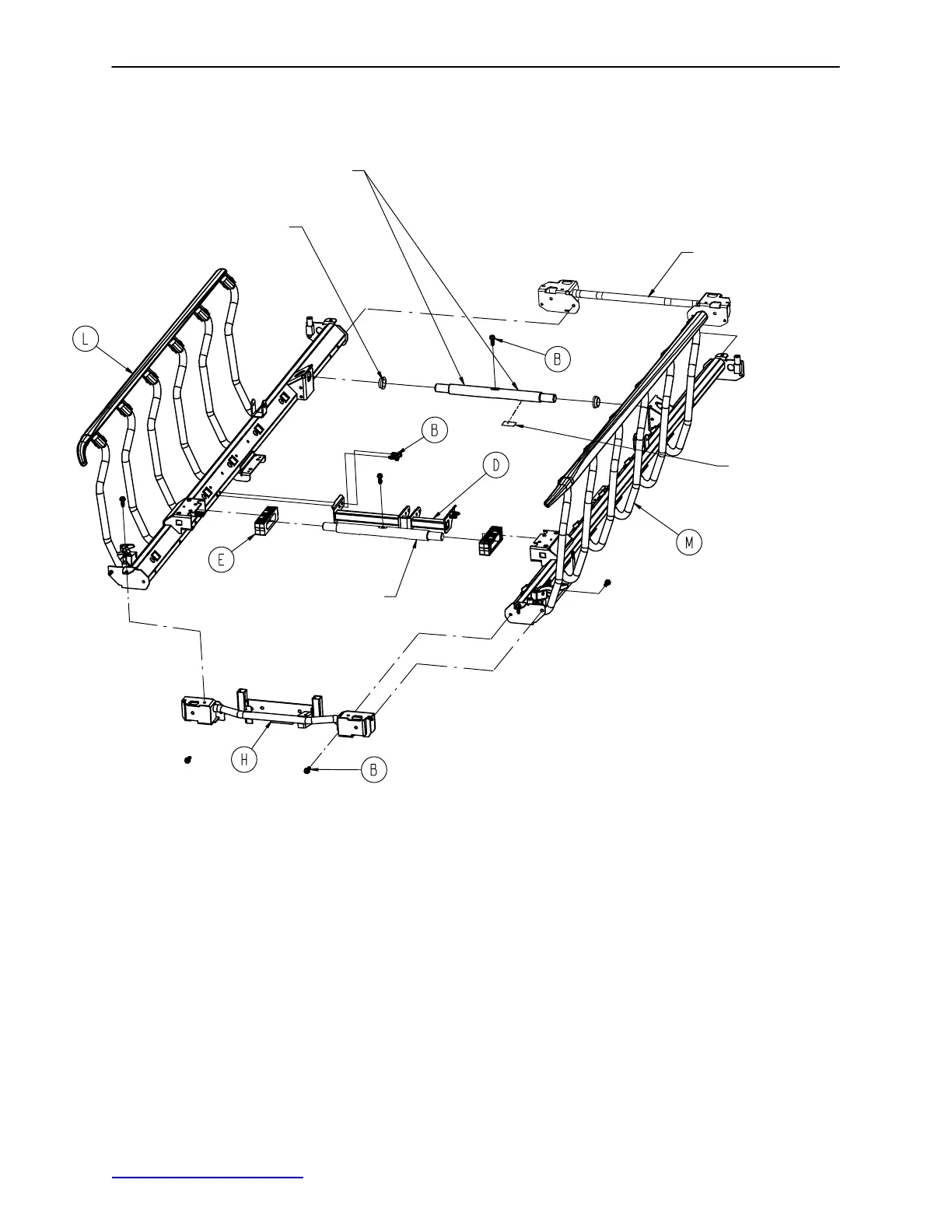

26” Litter Frame Assembly
66
Assembly part number 0785−010−601 (reference only)
0785−010−647 (non−scale)
1070−017−650 (scale)
0785−010−008 (non−scale)
0785−010−615 (non−Zoom)
1040−007−600 (Zoom)
0785−010−647 (non−scale)
1070−017−600 (scale)
0921−001−252
Serial Number Label
Item Part No. Part Name Qty.
B 0023−288−000 Hex Washer Hd. Screw 12
D 0785−008−610 Frame Tie Weldment 1
E 0785−010−006 Trend Block Slide 2
H 0785−010−620 Foot End Weldment 1
L(page 68) Right Siderail Assembly 1
M(page 69) Left Siderail Assembly 1
