STUDER Professional Audio GmbH Compact SCore Technical Info
13.Feb.06 13/22
4 Hardware configuration

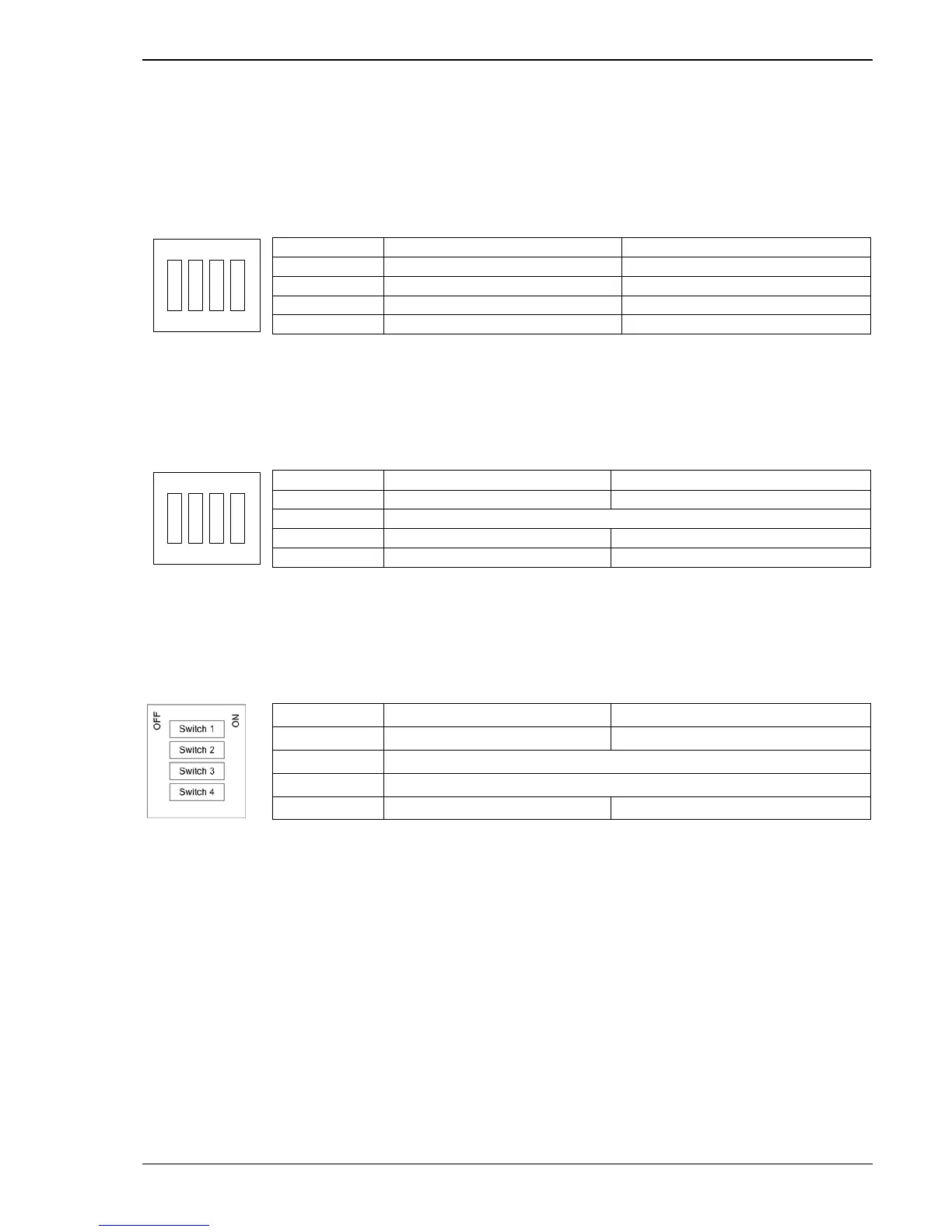

4.1 Card DIP Switches
4.1.1 Host Card DIP Switches
DIP Switch # ON Function OFF Function
1 External Com Port is RS232 External Com Port is RS422
2 LED bar shows POST messages LED bar shows CE boot progress
3 Front Button is Card RESET Button (BTN) is connected to IRQ7
Switch 1
Switch 2
Switch 3
Switch 4
OFF
ON
4 Disable CE Load Progress Meter Enable CE Load Progress Meter
Default configuration is all four DIP switches OFF.
4.1.2 DSP Card DIP Switches
The DSP Card offers the following DIP switches whereas the fourth is only valid for the Hybrid R&D version:
DIP Switch # ON Function OFF Function
1 SH4 SDRAM memory test Normal operation
2 Reserved for future use
3 SH4 Bus speed is 120 MHz SH4 Bus 80 MHz (default)
Switch 1
Switch 2
Switch 3
Switch 4
OFF
ON
4 SH4 boots all FPGAs and DSPs FPGAs & PEs boot from own Flash
The regular Hybrid DSP card used in the Compact SCore is always hardwired with Switch 4 ON.
Default configuration is all four DIP switches OFF.
4.1.3 Audio Clock Card DIP Switches
DIP Switch # ON Function OFF Function
1 Video In: 75 Ω termination Video In: Hi-Z
2 Reserved for future use
3 Reserved for future use
4 WCLK In: 75 Ω termination WCLK In: Hi-Z
4.1.4 Time Sync Card DIP Switches
See the last page of this chapter.
