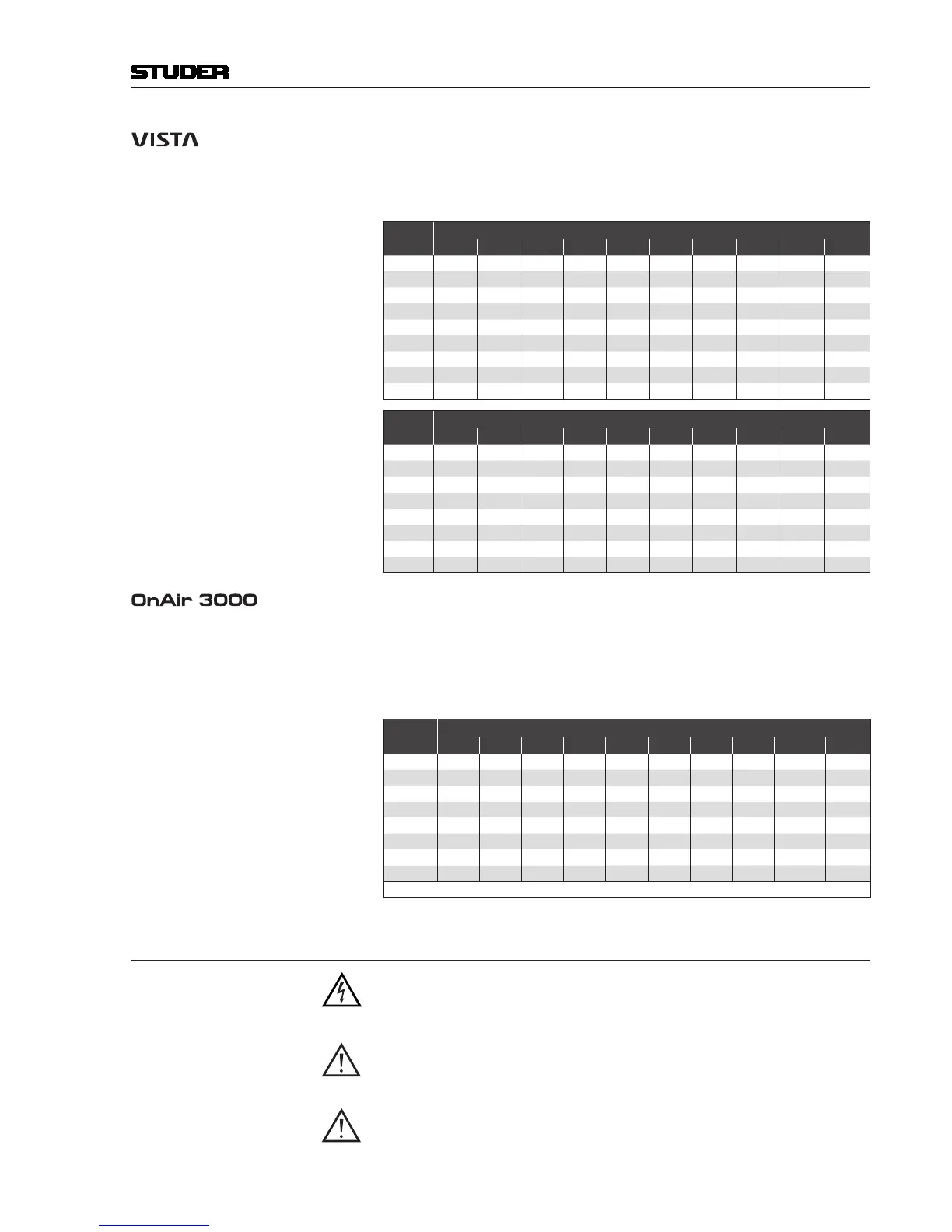

DSP/Bridge Card Congurations
Nine normal ‘N’ and eight redundant ‘R’ (dual bridge card) congurations
are possible. It is recommended to use the slot order given in the tables below
for optimum thermal results. (For slot numbering refer to chapter 2.2).
‘N’ Setups (1 Bridge Card)
Cong
Slot
1 2 3 4 5 6 7 8 9 10
N1 DSP Bridge
N2 DSP DSP Bridge
N3 DSP DSP DSP Bridge
N4 DSP DSP DSP DSP Bridge
N5 DSP DSP DSP DSP DSP Bridge
N6 DSP DSP DSP DSP DSP DSP Bridge
N7 DSP DSP DSP DSP DSP DSP DSP Bridge
N8 DSP DSP DSP DSP DSP DSP DSP DSP Bridge
N9 DSP DSP DSP DSP DSP DSP DSP DSP DSP Bridge
‘R’ Setups (2 Bridge Cards)
Cong
Slot
1 2 3 4 5 6 7 8 9 10
R1 DSP Bridge Bridge
R2 DSP DSP Bridge Bridge
R3 DSP DSP DSP Bridge Bridge
R4 DSP DSP DSP DSP Bridge Bridge
R5 DSP DSP DSP DSP DSP Bridge Bridge
R6 DSP DSP DSP DSP DSP DSP Bridge Bridge
R7 DSP DSP DSP DSP DSP DSP DSP Bridge Bridge
R8 DSP DSP DSP DSP DSP DSP DSP DSP Bridge Bridge
DSP/Bridge Card Congurations
The DSP conguration vary with the number of I/O channels. The basic
conguration with two DSP cards offers the functionality of C10802. Con-
gurations up to C10804 may be operated without a fan unit as long as no
redundant bridge card (*) is used. For OnAir 3000 installations, the slot order
given below must be followed. (For slot numbering refer to chapter 2.2).
Cong
Slot
1 2 3 4 5 6 7 8 9 10
C10802 DSP DSP *Bridge Bridge
C10803 DSP DSP DSP *Bridge Bridge
C10804 DSP DSP DSP DSP *Bridge Bridge
C10805 DSP DSP DSP DSP DSP *Bridge Bridge
C10806 DSP DSP DSP DSP DSP DSP *Bridge Bridge
C10807 DSP DSP DSP DSP DSP DSP DSP *Bridge Bridge
C10808 DSP DSP DSP DSP DSP DSP DSP DSP *Bridge Bridge
C10809 DSP DSP DSP DSP DSP DSP DSP DSP DSP Bridge
*Bridge = redundant Bridge card
1.2.3 Adjustments, Repair, Cleaning
Danger! All internal adjustments as well as repair work on this product must be per-
formed by expert technicians!
Replacing the Supply Unit The primary fuse is located within the power supply module and cannot be
changed. In case of failure, the complete power supply unit must be replaced.
Please ask your nearest Studer representative.
Cleaning Do not use any liquids to clean the exterior of the unit. A soft, dry cloth or
brush will usually do.
