Studer OnAir 3000 Service Instructions

SCore Live
12 SCore Live
Date printed: 28.02.11

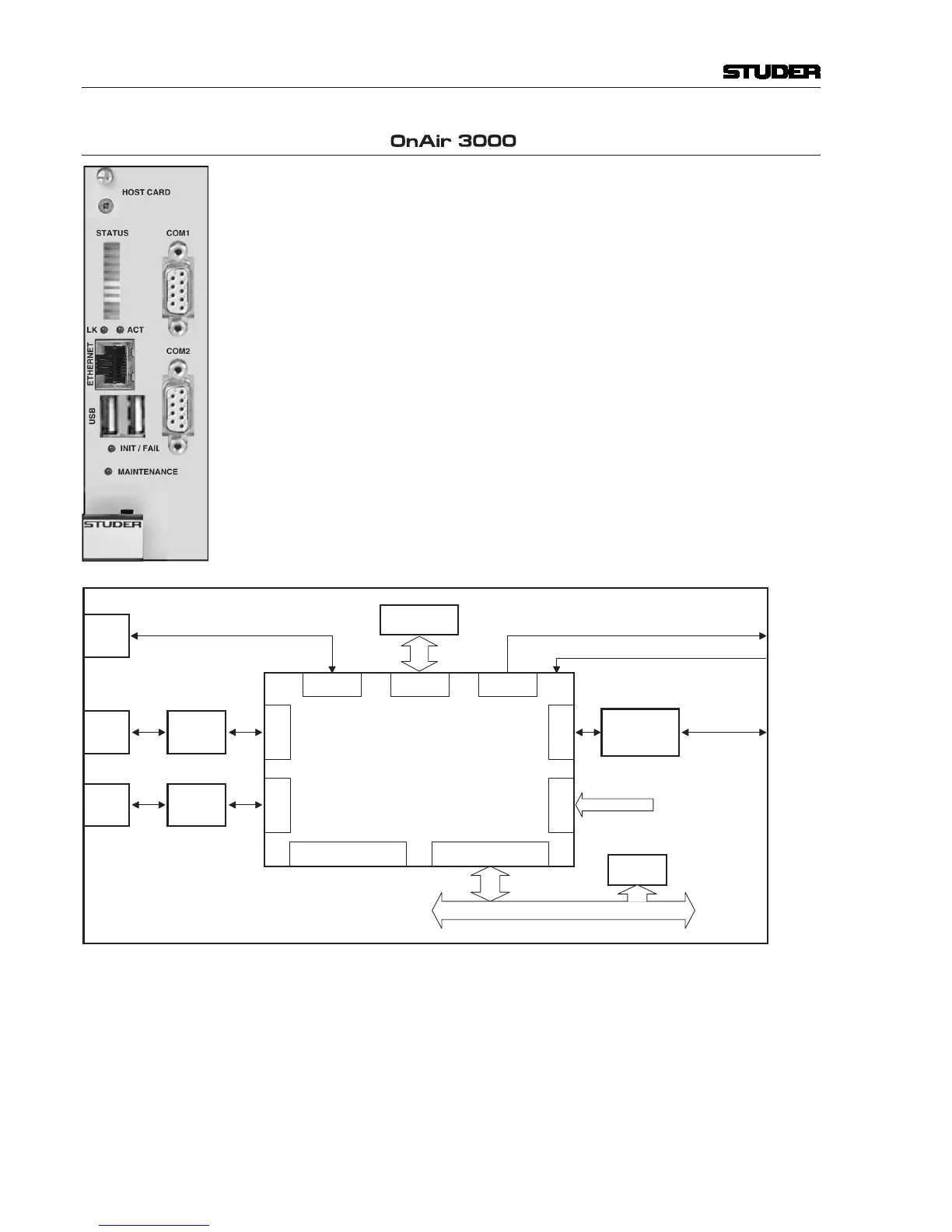

3.1 SCore Live Host Card ( ) A943.0326
The Host card is the logical link between the Bridge card and the OnAir 3000
desk. It hosts the DNet mix engine control software. The backplane connector
provides 5 V power to the card. The card can be hot-swapped, but requires a
power off/on cycle in order to correctly initialize the DSP cards.
Current consumption (5 V) approx. 2 A
Operating temperature 0...40° C
UART 0 UART 1
USB
REV [0:3]
LPT ETH
Magnetics
PCI Interface ISA Interface
GPO
8 bit / 8.33 MHz
VIA ETX Embedded Controller
Advantech SOM4472
800 MHz / 128 MB SDRAM
RS232/
RS422
COM2
COM2
USB
RS232/
RS422
IRQ
Backplane
VGA
VGAATAPI
CF Card
