Studer OnAir 3000 Service Instructions

SCore Live
8 SCore Live
Date printed: 28.02.11
2.2.1 Bridge Card Redundancy
Since Vista SW V4.1, a redundant Bridge card can be used in the SCoreLive.
This provides not only cable redundancy but also true bridge card redundancy.
The order no. of the bridge card with this functionality is A943.0370.35 or
later; earlier bridge cards cannot be upgraded to this level.
Note When using a redundant bridge card, the SCoreLive’s maximum capacity for
DSP cards is reduced from 9 to 8 cards.

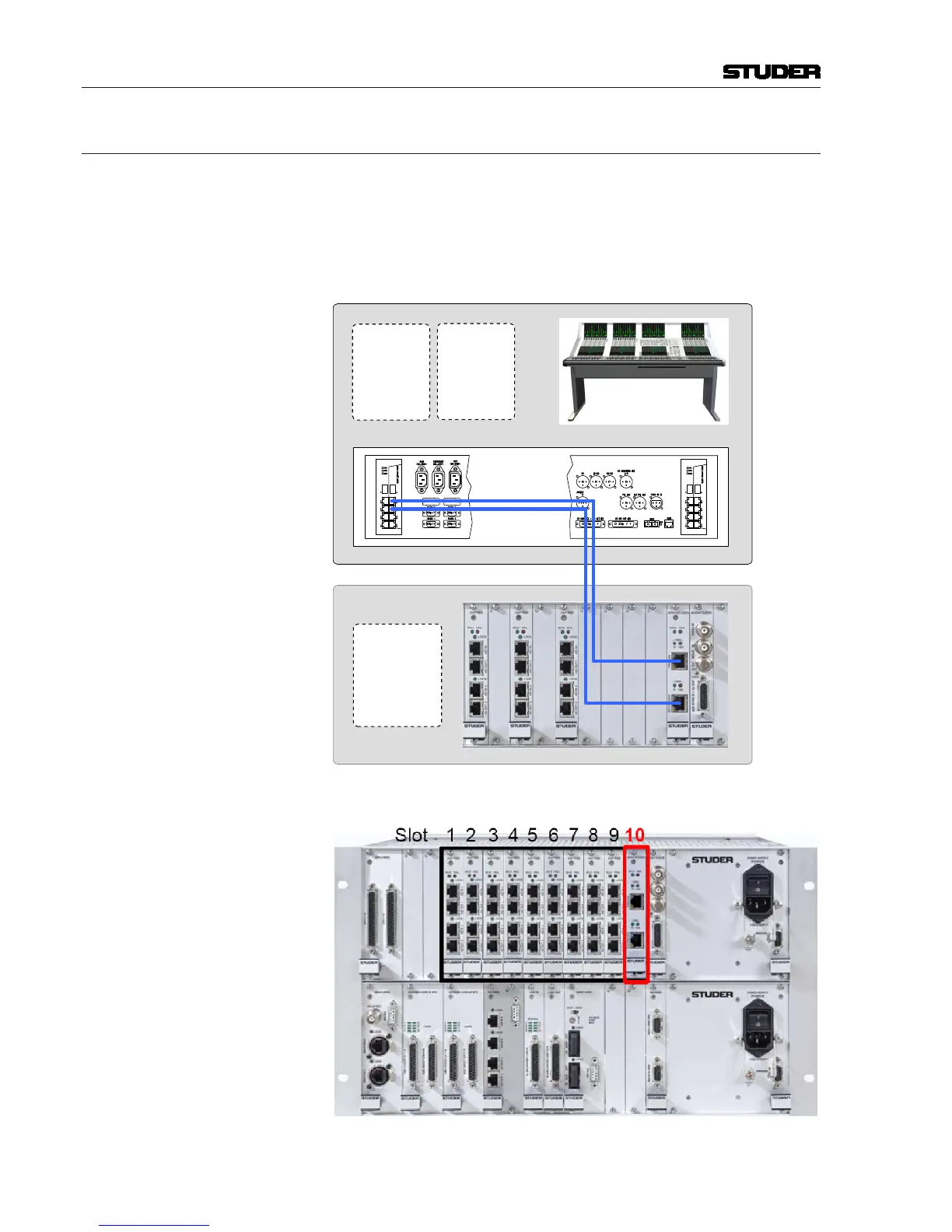

Single Bridge Card
VISTA 9
PC 1
LAN 1
IP: 192.168.1.128
IP: 192.168.3.128
SUBN: 255.255.255.0
LAN 2
IP: 192.168.2.128
IP: 192.168.4.128
SUBN: 255.255.255.0
Switch 1 Switch 2
PC 2
LAN 1
IP: 192.168.1.129
IP: 192.168.4.129
SUBN: 255.255.255.0
LAN 2
IP: 192.168.2.129
IP: 192.168.3.129
SUBN: 255.255.255.0
BRIDGE 1
IP Port 1 192.168.1.60
IP Port 2 192.168.2.60
SUBN: 255.255.255.0
SCore Live
In the example above, the single bridge card must be installed in slot 10 of
the SCoreLive frame; the maximum number of DSP cards is 9.
