Studer OnAir 3000 Service Instructions

SCore Live
SCore Live 9Date printed: 28.02.11

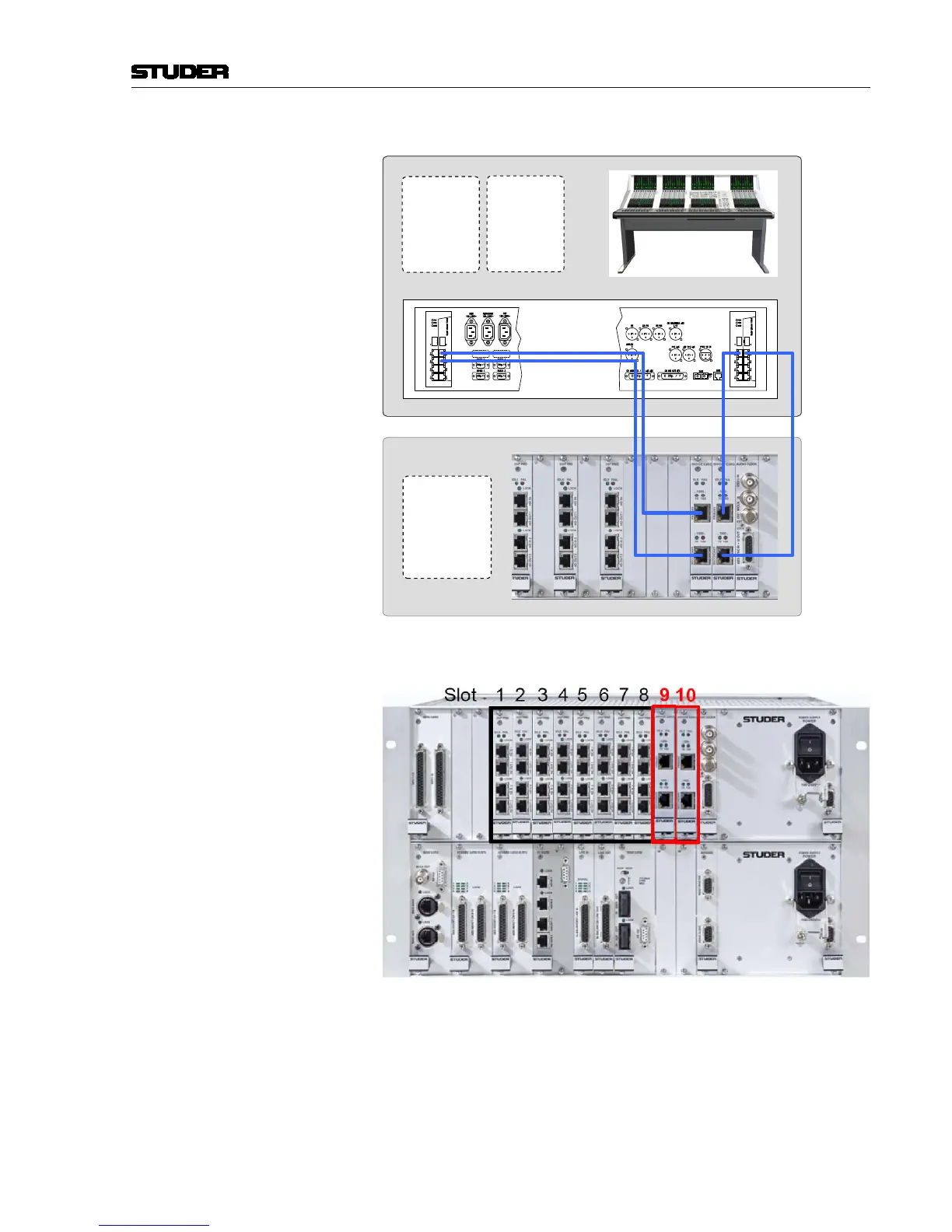

Two (Redundant) Bridge Cards ( Vista SW V4.1 or later only)
VISTA 9
PC 1
LAN 1
IP: 192.168.1.128
IP: 192.168.3.128
SUBN: 255.255.255.0
LAN 2
IP: 192.168.2.128
IP: 192.168.4.128
SUBN: 255.255.255.0
Switch 1 Switch 2
PC 2
LAN 1
IP: 192.168.1.129
IP: 192.168.4.129
SUBN: 255.255.255.0
LAN 2
IP: 192.168.2.129
IP: 192.168.3.129
SUBN: 255.255.255.0
BRIDGE 1
IP Port 1 192.168.1.60
IP Port 2 192.168.2.60
SUBN: 255.255.255.0
BRIDGE 2
IP Port 1 192.168.1.60
IP Port 2 192.168.2.60
SUBN: 255.255.255.0
SCore Live
In the example above, two bridge cards are installed in slots 9 and 10, result-
ing in a maximum number of eight DSP cards.
