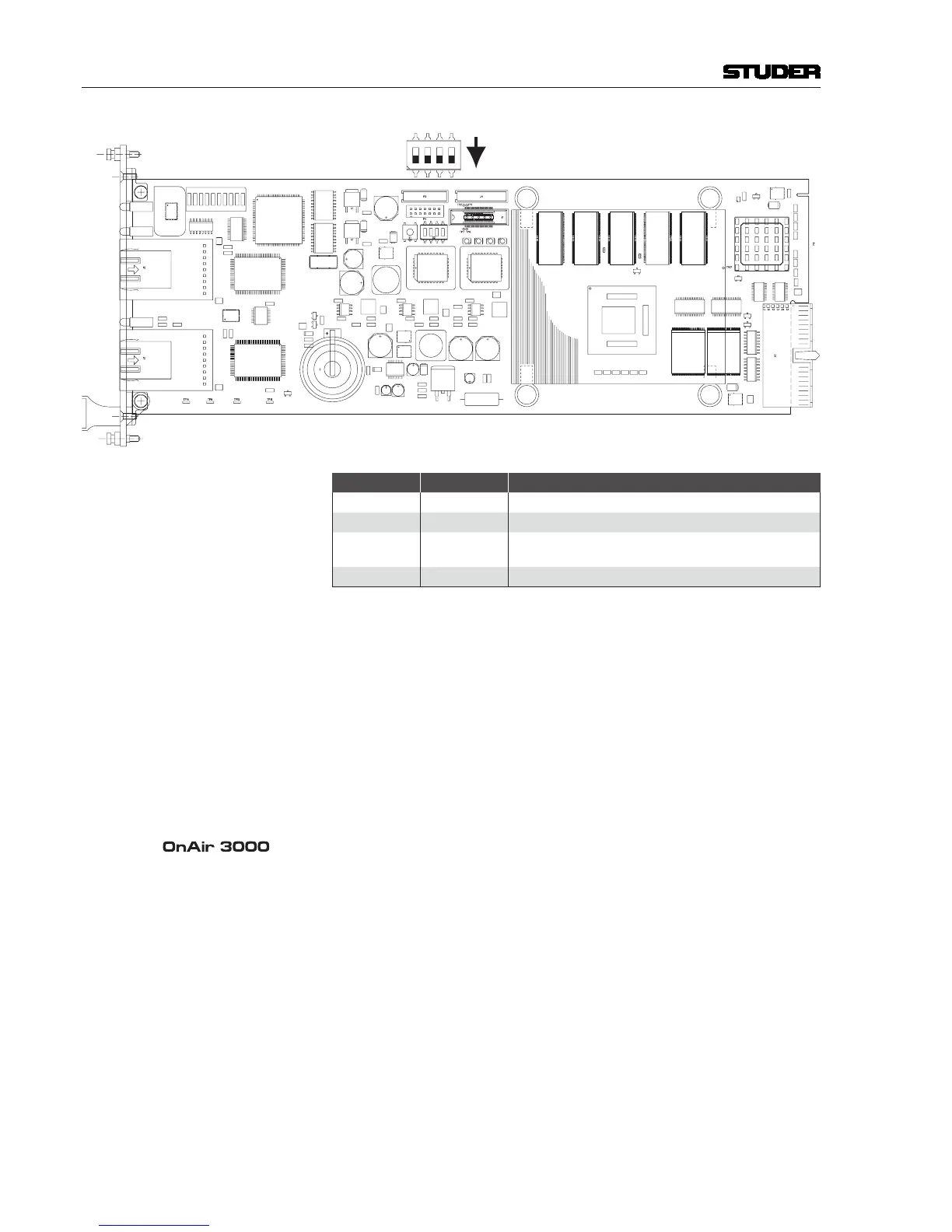

LEDs IDLE / FAIL
IDLE FAIL
ON OFF
Redundant card in idle mode
OFF OFF
Card is processing
OFF ON
Card has detected an error and is disconnected from the
TDM Bus
ON ON
Card is booting code
10 / 100 / 1000 Ethernet speed indication:
‘10’ on: 10MBit/s
‘100’ on: 100MBit/s
Both LEDs on: 1GBit/s
Integrated LEDs The LEDs within the Ethernet connectors have the following meaning:
Orange: Half-duplex operation
Green: Traffic/activity
DIP Switch S2 Used for factory testing only. During normal operation, all segments must be
set to OFF.
IP Address (
) When replacing a Bridge card in an SCore Live of an OnAir 3000 system,
copy the IP address of the old card (can be found in the DSP.ini file) to the
new card using Internet Explorer. Otherwise the system will not be operative.
The required procedure is described in chapter 3.3.1.
