Studer OnAir 3000 - Page 350

SCore Live
22 SCore Live
Date printed: 28.02.11
1.1
1.2
1.3
1.4
S1
OFF
LED EXT LOCK Indicates that the applied external sync is used by the system.

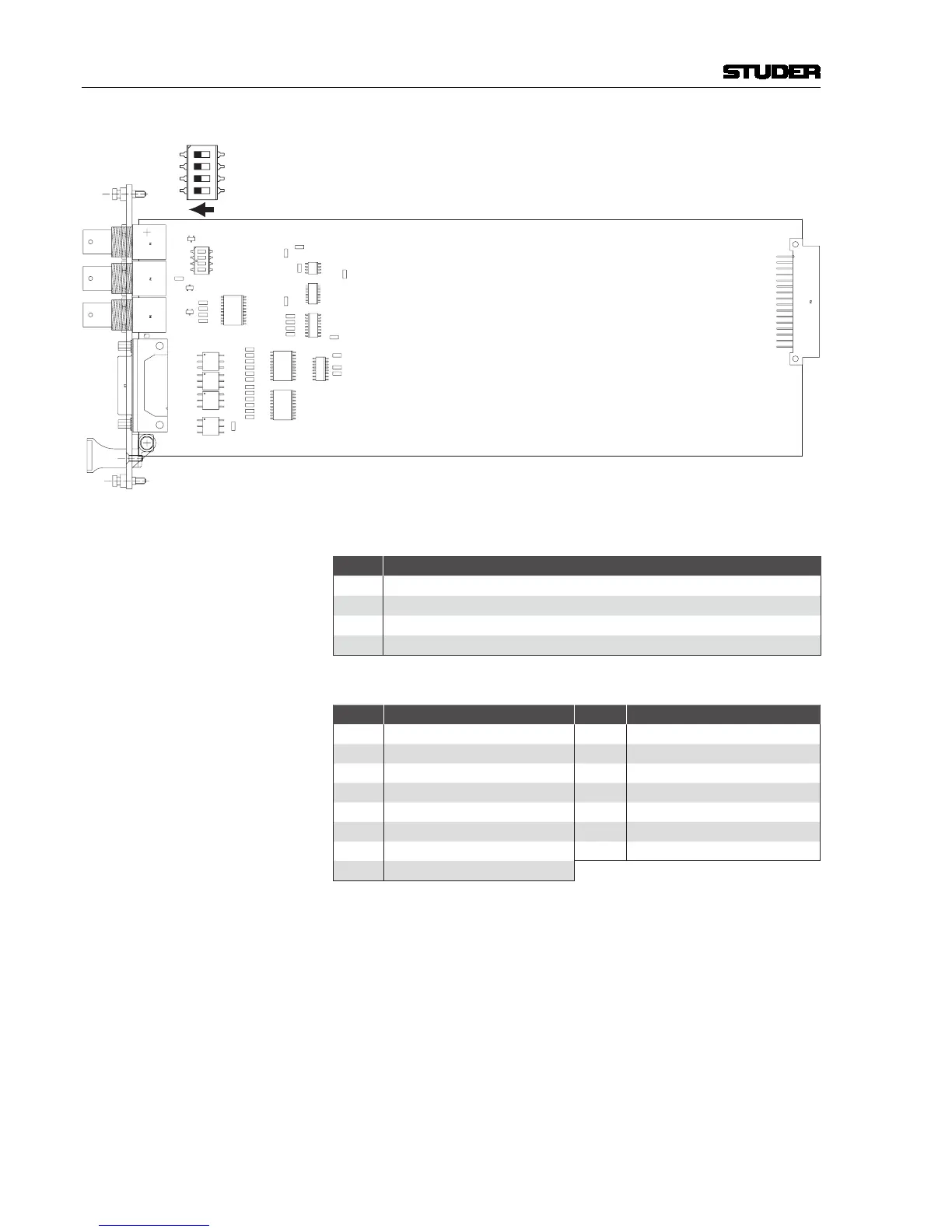

DIP Switch
S2 Setting
1.1
VIDEO IN termination (default setting OFF: High-Z / ON: 75 Ω)
1.2
reserved (default setting OFF)
1.3
reserved (default setting OFF)
1.4
WCLK IN termination (default setting OFF: High-Z / ON: 75 Ω)
Connector Pin Assignment AES SYNC IN + 3x OUT (15-pin D-type, female, UNC 4-40 thread)
Pin Signal Pin Signal
1
AES IN +
9
AES IN –
2
Screen
10
Screen
3
AES OUT 3 –
11
AES OUT 3 +
4
n.c.
12
n.c.
5
AES OUT 2 +
13
AES OUT 2 –
6
Screen
14
Screen
7
AES OUT 1 –
15
AES OUT 1 +
8
n.c.
