12-6 Specifications
Fuses and circuits

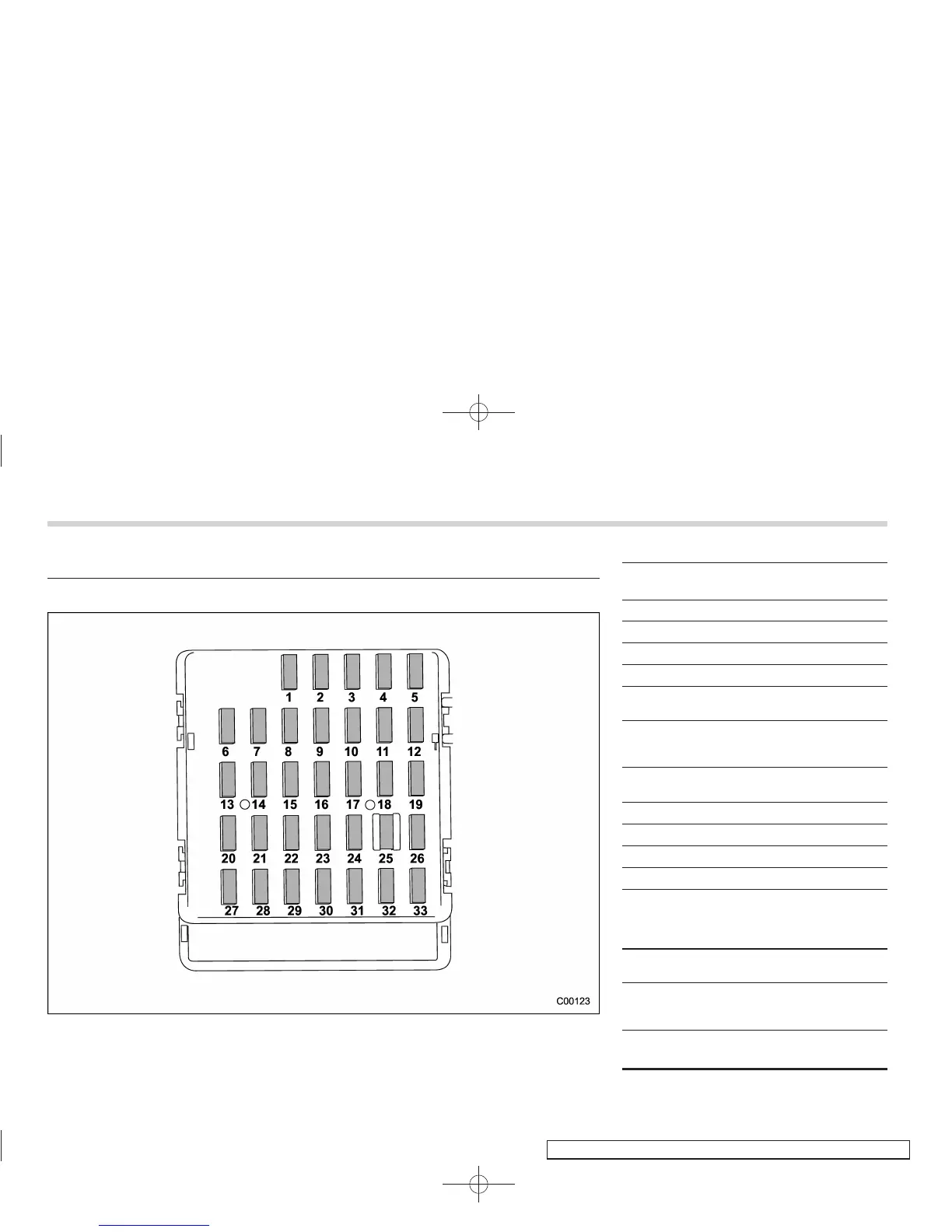

& Fuse panel located in the passenger compartment
Fuse
panel
Fuse
rating
Circuit
1 Empty
2 Empty
3 15A
. Door locking
4 10A
. Front wiper deicer relay
5 10A
. Combination meter
. Clock
6 7.5A
. Remote control rear
view mirrors
. Seat heater relay
7 15A
. Combination meter
. Integrated unit
8 20A
. Stop light
9 15A
. Front wiper deicer
10 7.5A
. Power supply (battery)
11 7.5A
. Turn signal unit
12 15A
. Automatic transmission
unit
. Engine control unit
. Integrated unit
13 20A
. Accessory power outlet
(center console)
14 15A
. Position light
. Tail light
. Rear combination light
15 Empty
(FWD connector for
AWD AT models)
