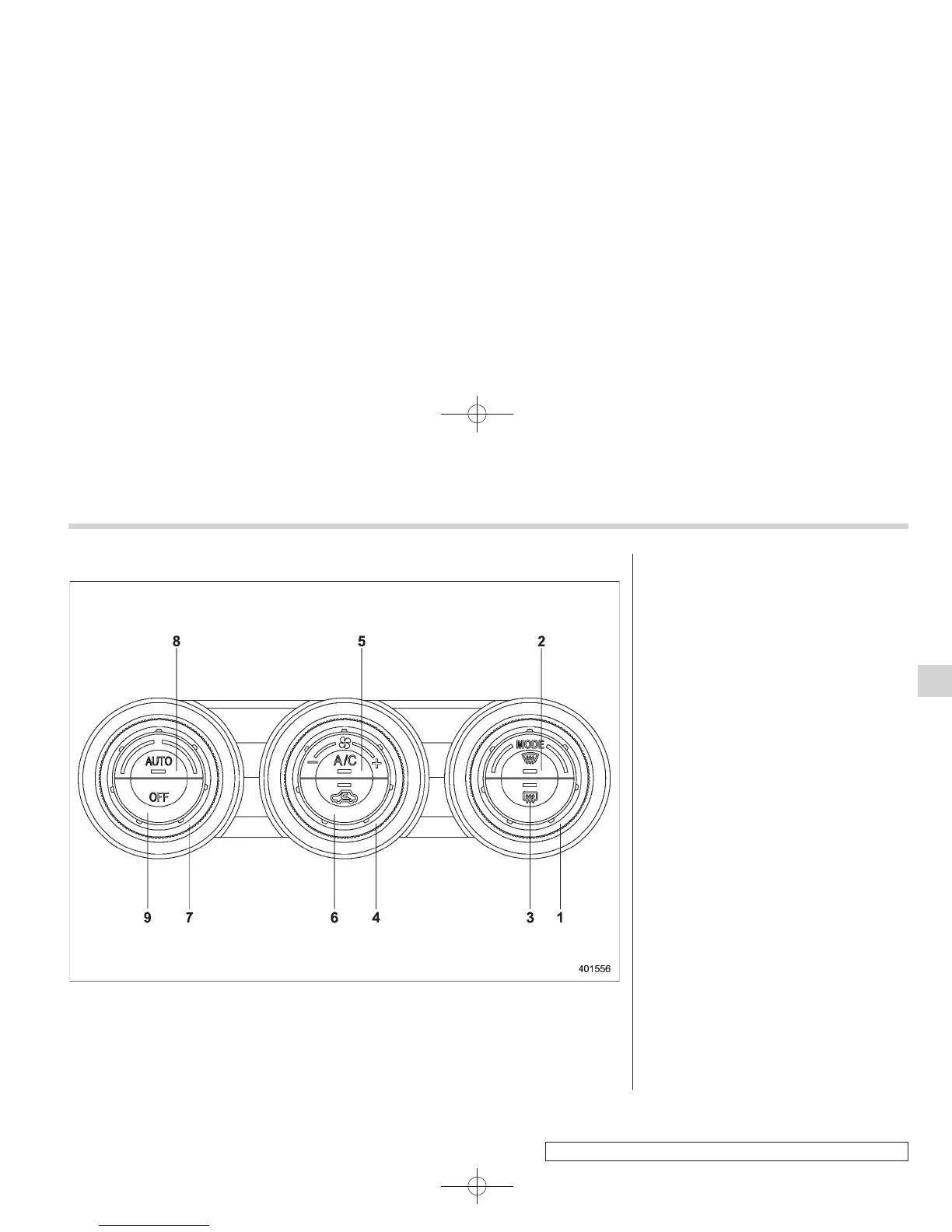

1) Airflow mode selection dial (Refer to
“Airflow mode selection” F4-8.)
2) Defroster button (Refer to “Airflow mode
selection” F4-8.)
3) Rear window defogger button (Refer to
“Defogger and deicer” F3-81.)
4) Fan speed control dial (Refer to “Fan
speed control” F4-10.)
5) Air conditioner button (Refer to “Air
conditioner control” F4-10.)
6) Air inlet selection button (Refer to “Air
inlet selection” F4-10.)
7) Temperature control dial (Refer to “Auto-
matic climate control operation (type B, C
and D)” F4-7 and/or “Temperature con-
trol” F4-9.)
8) AUTO button (Refer to “Automatic cli-
mate control operation (type B, C and D)”
F4-7.)
9) OFF button (Refer to “Automatic climate
control operation (type B, C and D)” F4-
7.)
NOTE
The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
