CAMSHAFT
ME-8
6. Camshaft
! The camshaft is supported inside the cylinder head at four journals.
! The two flanges on each camshaft supports thrust forces to limit the end play of the camshaft
within the tolerance.
! Each camshaft has an oil passage in it.

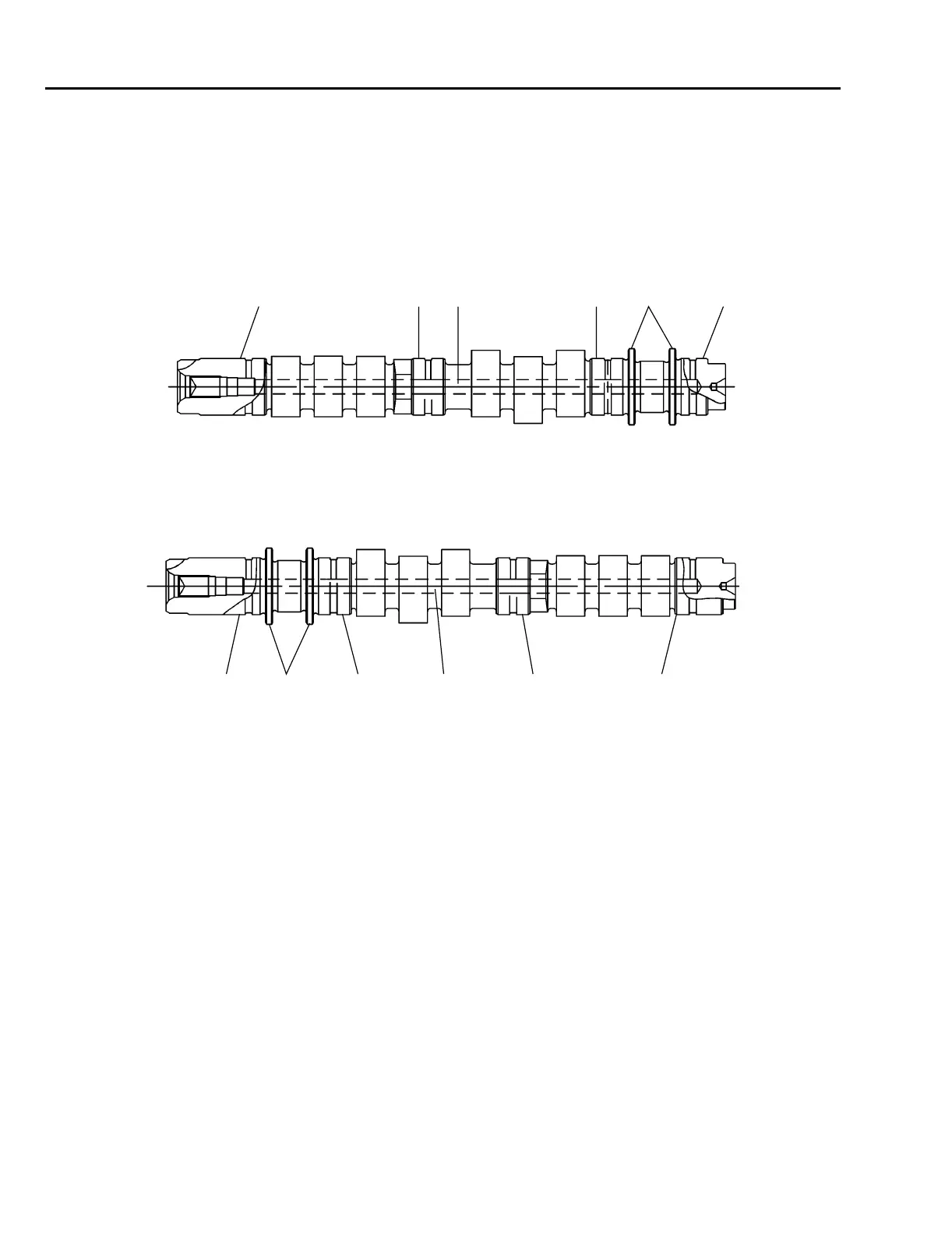

(1) Journal
(2) Oil passage
(3) Shaft flange
(1)
(1)(1)(2)(1)(1) (3)
(3)(1)(1)(1) (2)
<RH>
<LH>
B2H1987B
