Brakes
BRAKE BOOSTER
BR-7
3. Brake Booster
! The brake booster is a tandem type that uses two diaphragms. This design provides high brake
boosting effects in spite of a reduced diameter.
! All models are equipped with an 8 inch + 9 inch booster.

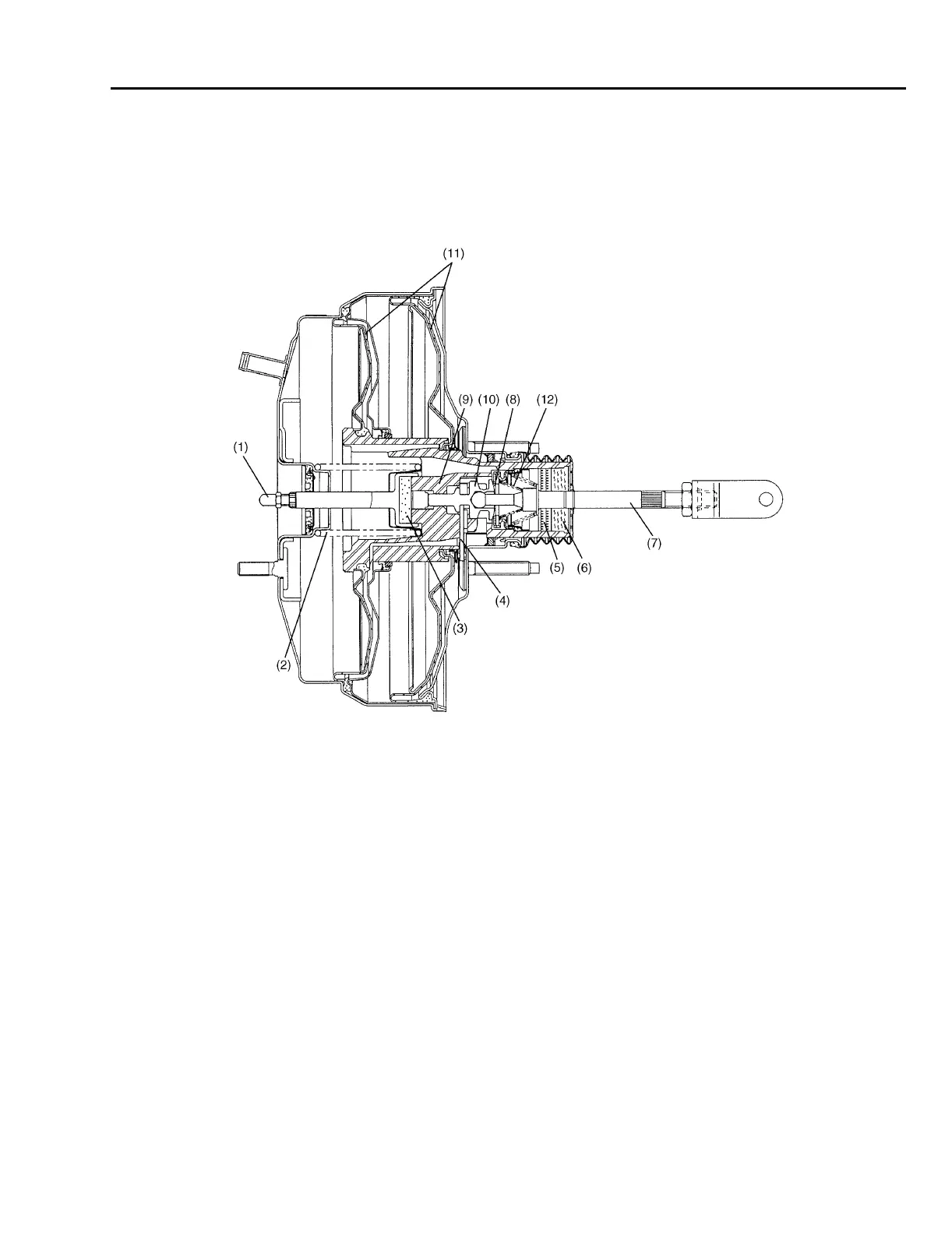

(1) Push rod (5) Filter (9) Valve body
(2) Return spring (6) Silencer (10) Plunger valve
(3) Reaction disc (7) Operating rod (11) Diaphragm plate
(4) Key (8) Poppet valve (12) Valve return spring
B4H1936A
