Lubrication
OIL PAN AND OIL STRAINER
LU-7
5. Oil Pan and Oil Strainer
! The oil pan consists of an upper oil pan (aluminum die-casting) and a lower oil pan (formed steel
plate). The upper oil pan has a baffle plate molded in it to improve stability of the oil level.
! The oil strainer has a stay whose end is attached to the upper oil pan. The strainer’s pipe is con-
nected to the oil pump using an O-ring. The strainer is located close to the bottom at the center of
the oil pan where the oil level changes the least.

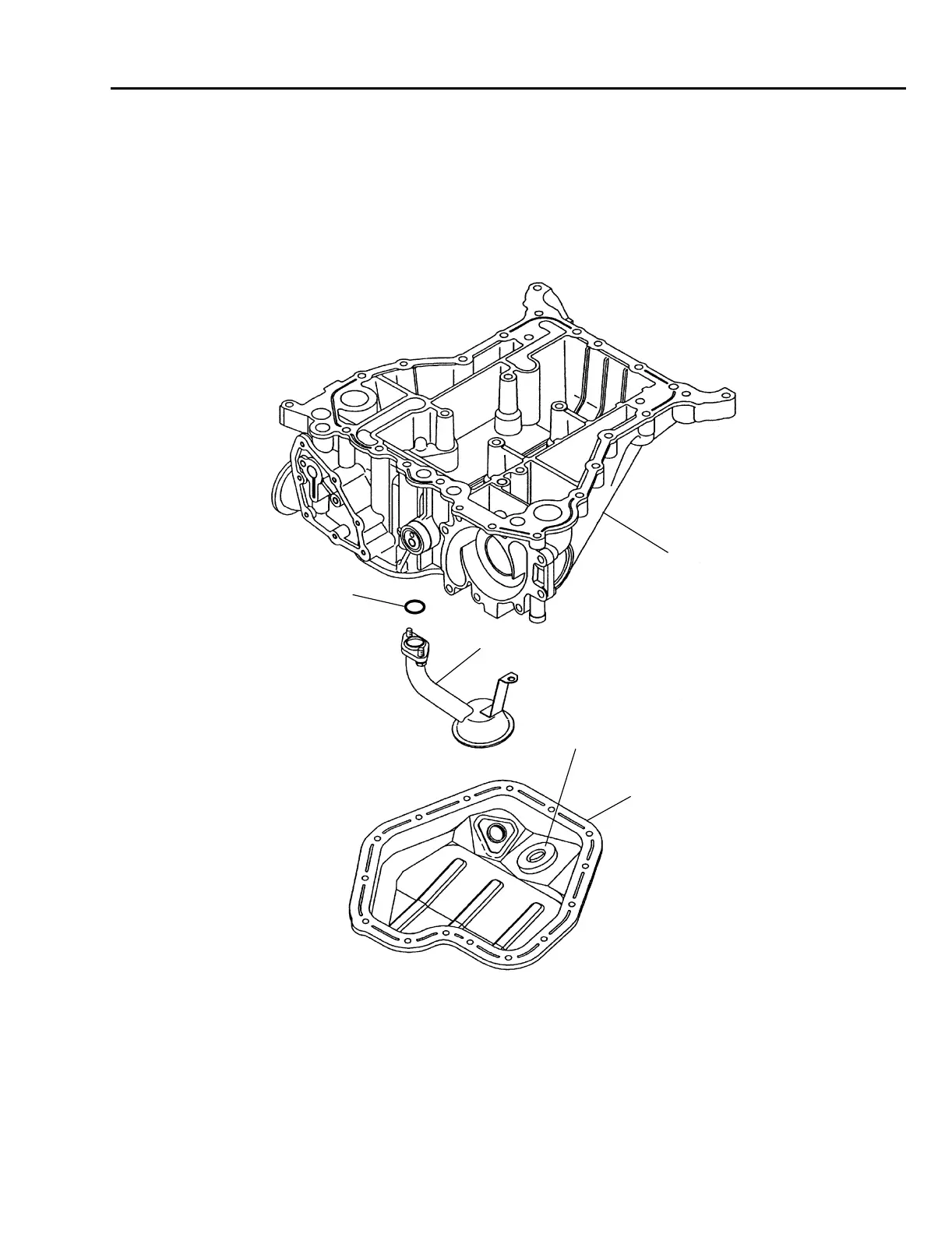

(1) Upper oil pan (4) O-ring
(2) Strainer (5) Magnet
(3) Lower oil pan
(1)
(2)
(4)
(3)
(5)
B2H3890A
