Emission Control (Aux. Emission Control Devices)
CRANKCASE EMISSION CONTROL SYSTEM
EC-6
3. Crankcase Emission Control System
The positive crankcase ventilation (PCV) system prevents air pollution which will be caused by
blow-by gas being emitted from the crankcase.
The system consists of rocker covers with fresh air inlet, connecting hoses, a PCV valve and a
chamber.

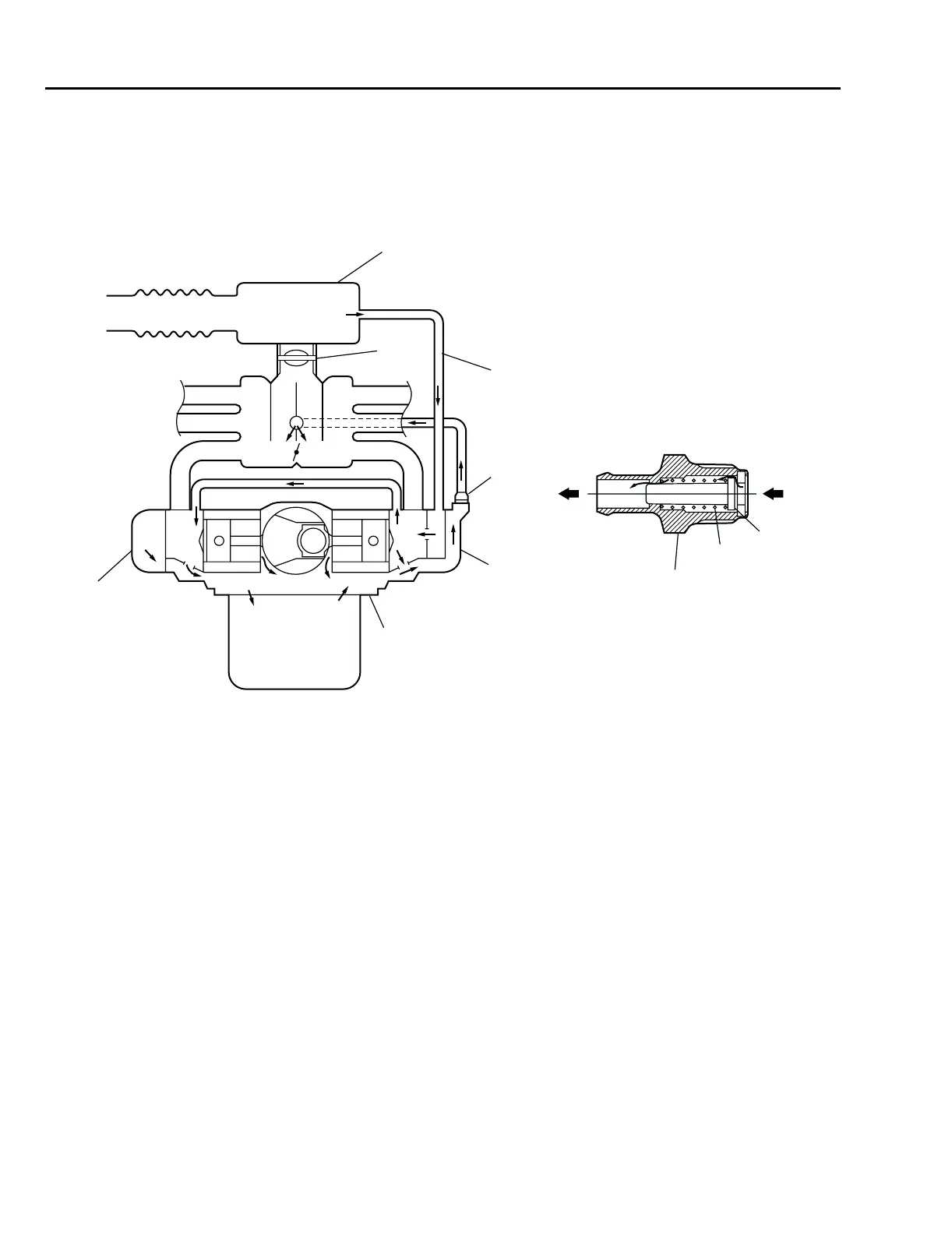

(1) Chamber (6) Crankcase A: To intake manifold
(2) Throttle body (7) Rocker cover LH B: Blow-by gas
(3) Connecting hose (8) Spring
(4) PCV valve (9) Valve
(5) Rocker cover RH
(1)
(2)
(3)
(4)
(5)
(4)
(8)
(9)
BA
(6)
(7)
B2H3969B
