Cooling
RADIATOR FAN
CO-7
6. Radiator Fan
A: DESCRIPTION
Each radiator fan is made of plastic. It is driven by an electric motor which is retained on a shroud.

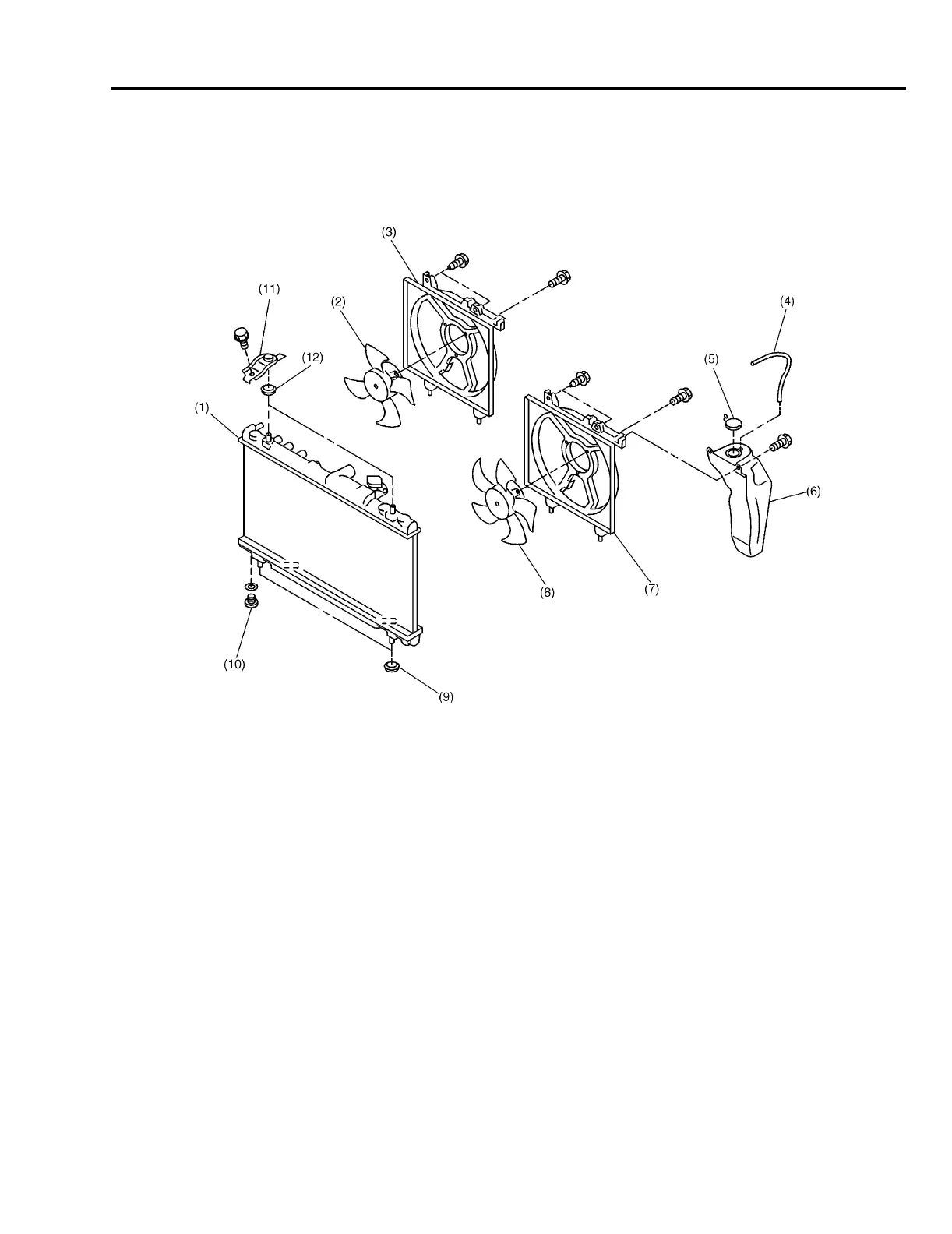

(1) Radiator (8) Radiator main fan and fan motor assembly
(2) Radiator subfan and subfun motor assembly (model with A/C) (9) Lower cushion
(3) Radiator subfan shroud (model with A/C) (10) Drain plug
(4) Overflow hose (11) Upper bracket
(5) Reservoir tank cap (12) Upper cushion
(6) Reservoir tank
(7) Radiator main fan shroud A/C: Air conditioning system
B2H2916A
