ENGINE MOUNTS
ME-11
10.Engine Mounts
The H6 engine is supported by liquid-filled elastic mounts specially developed for use with it. Each
mount is rigidly attached to the engine at three points. The mount can effectively reduce vibration
and noise thanks to presence of a membrane between the two liquid chambers. The membrane
has a function of reducing the spring constant of the mount.

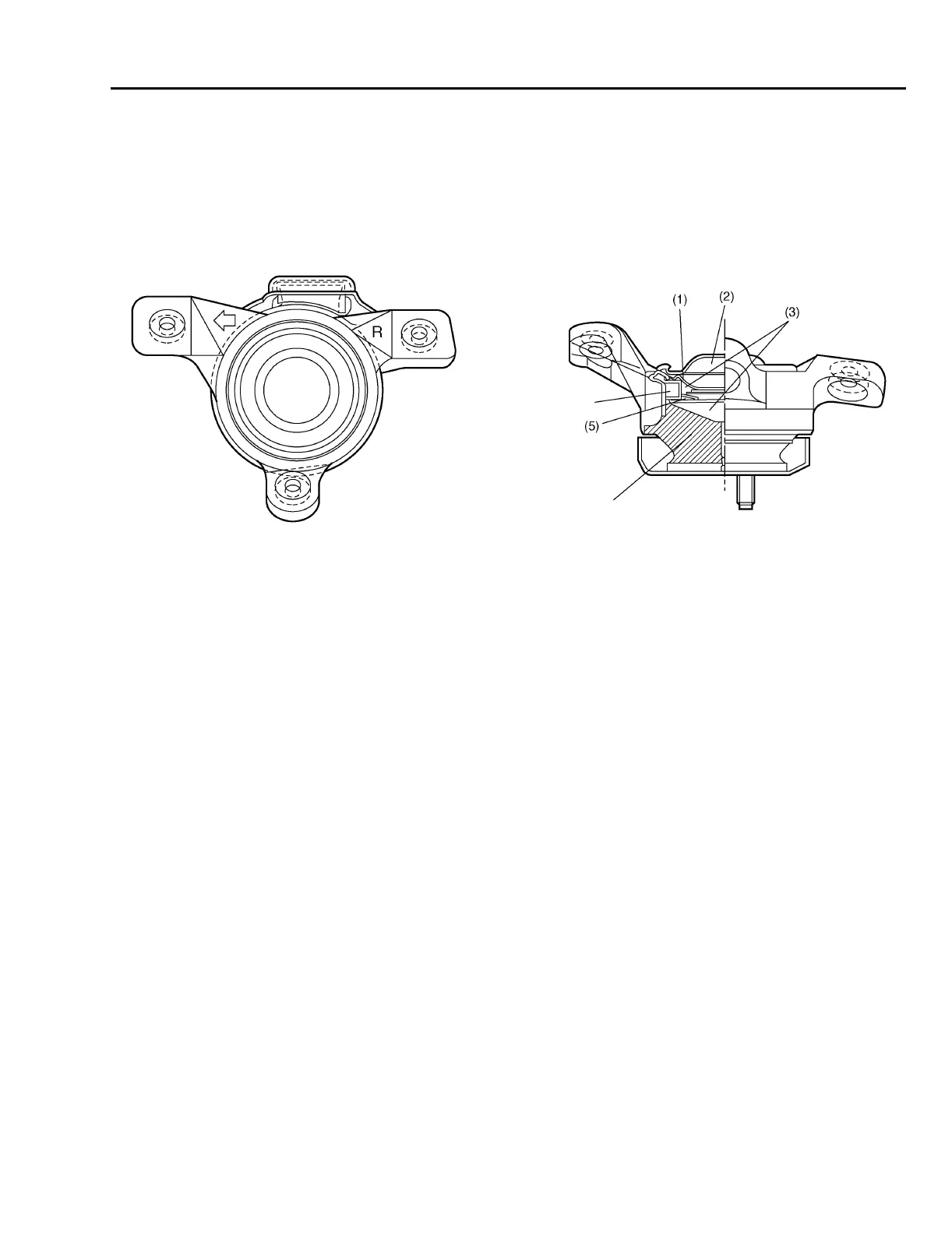

(1) Diaphragm (4) Orifice
(2) Air chamber (5) Membrane
(3) Liquid chamber (6) Rubber piece
(4)
(6)
B2H3976A
