Cooling
RADIATOR FAN
CO-7
6. Radiator Fan
A: DESCRIPTION
Each radiator fan is made of plastic. It is driven by an electric motor which is retained on a shroud.

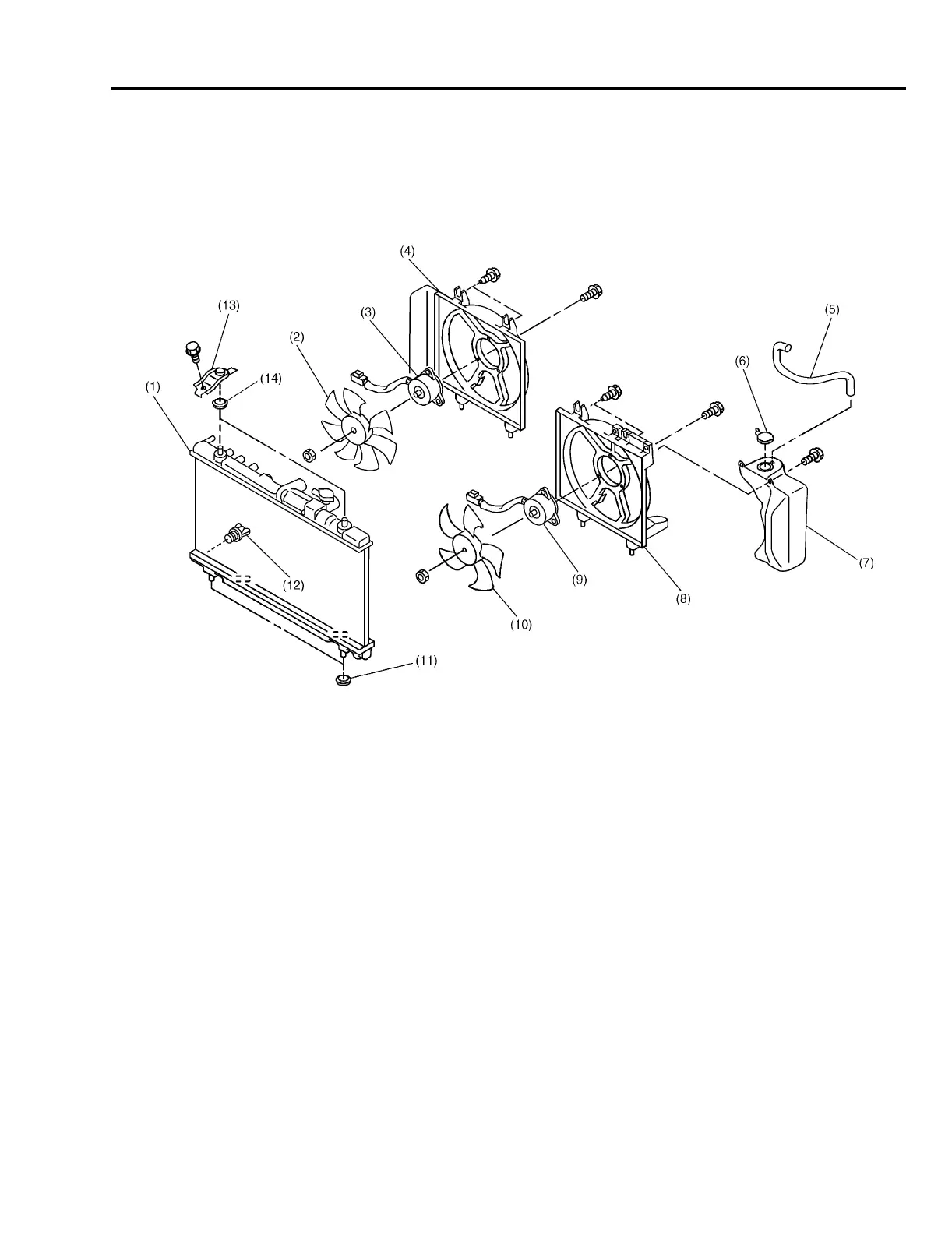

(1) Radiator (8) Radiator main fan shroud
(2) Radiator subfan (9) Radiator main fan motor
(3) Radiator subfan motor (10) Radiator main fan
(4) Radiator subfan shroud (11) Lower cushion
(5) Overflow hose (12) Drain plug
(6) Reservoir tank cap (13) Upper bracket
(7) Reservoir tank (14) Upper cushion
B2H3893A
