Manual Transmission and Differential

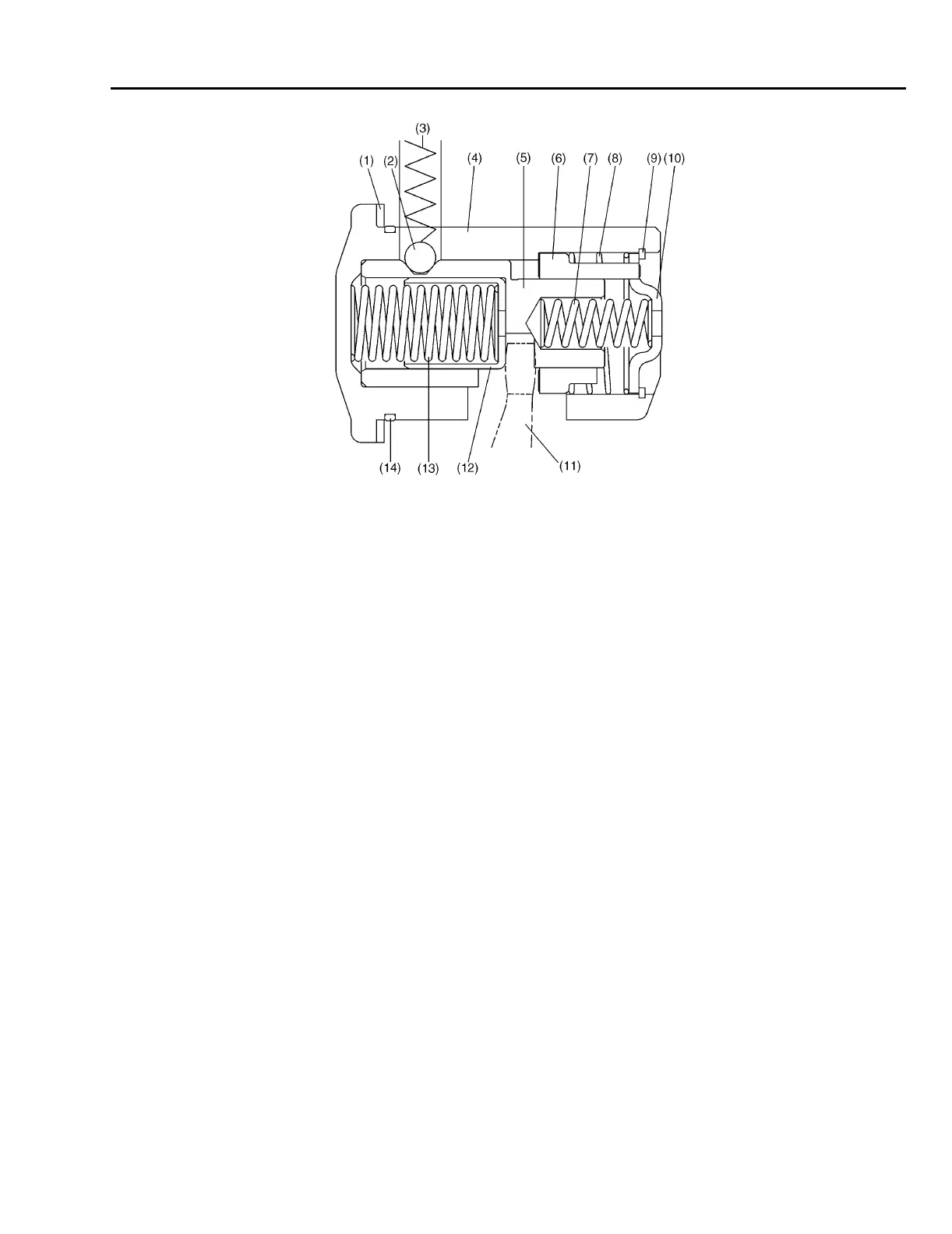

REVERSE CHECK MECHANISM
MT-9
(1) Select adjust shim (6) Reverse check cam (11) Selector arm
(2) Detent ball (7) Reverse return spring (12) Spring cap
(3) Reverse accent spring (8) Reverse check spring (13) 1st return spring
(4) Reverse check sleeve (9) Snap ring (14) O-ring
(5) Reverse accent shaft (10) Reverse check plate
B3H1007A
