Subaru LEGACY 2002 - Engine Oil Flow

Lubrication
ENGINE OIL FLOW
LU-4

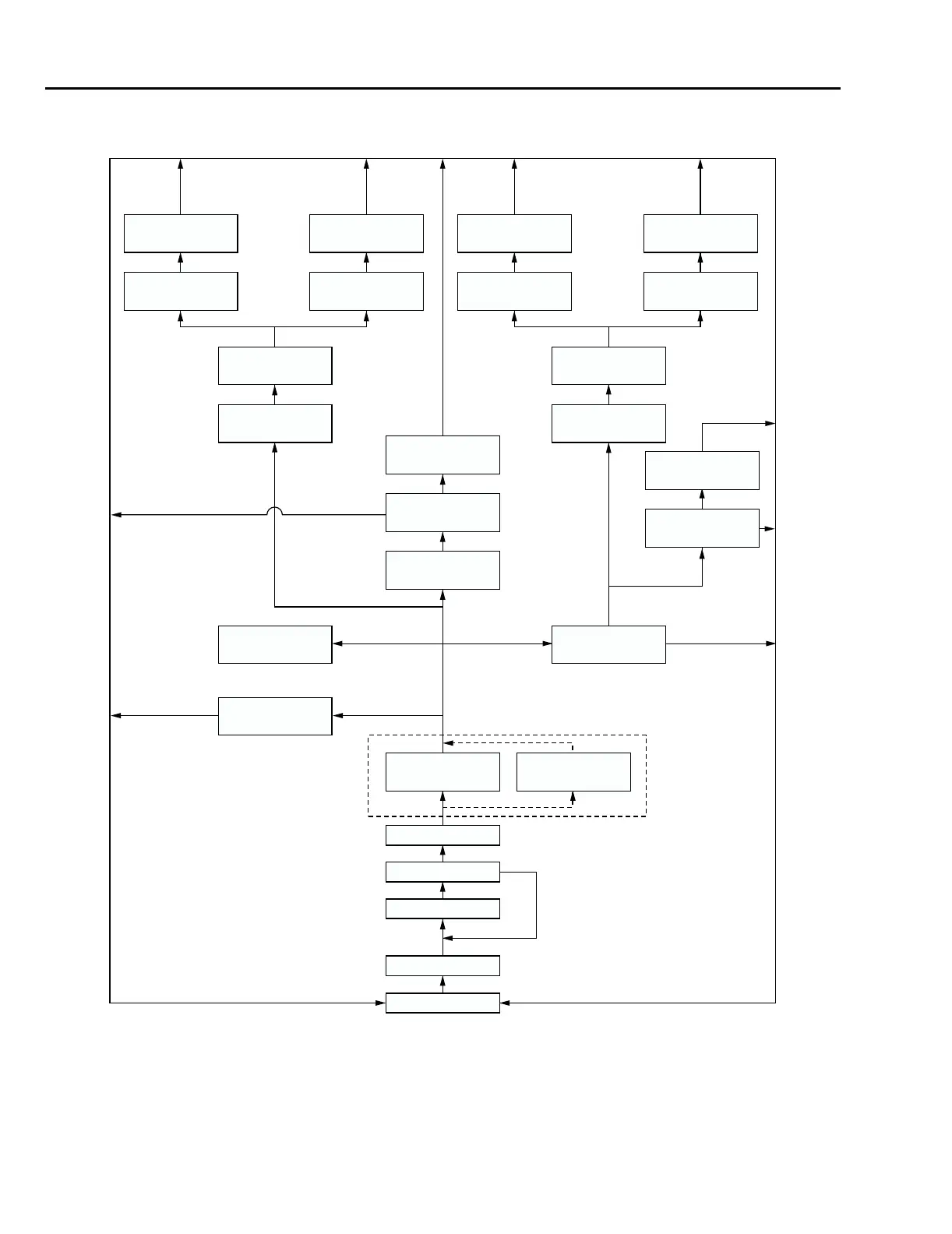

2. Engine Oil Flow
Oil pan
Oil strainer
Oil pump
Oil cooler
Oil filter
element
Oil filter
Cylinder block
main gallery
Crankshaft
bearing
Connecting
rod bearing
Chain tension
adjuster RH
Chain tension
adjuster LH
Upper idler
sprocket
Oil pressure
switch
Cylinder
head RH
Orifice
Cylinder
head LH
Orifice
Intake camshaft
gallery
Camshaft
journal
Exhaust camshaft
gallery
Camshaft
journal
Exhaust camshaft
gallery
Camshaft
journal
Intake camshaft
gallery
Camshaft
journal
Lower idler
sprocket
Bypass valve
Relief valve
B2H3888A
