Body Structure
QUIETNESS
BS-4
3. Quietness
Silencers, dual-wall panels, sound-absorbing materials, etc. are utilized in conjunction with a high-
rigidity and vibration/noise-proof body structure in order to ensure quietness of the passenger
compartment.

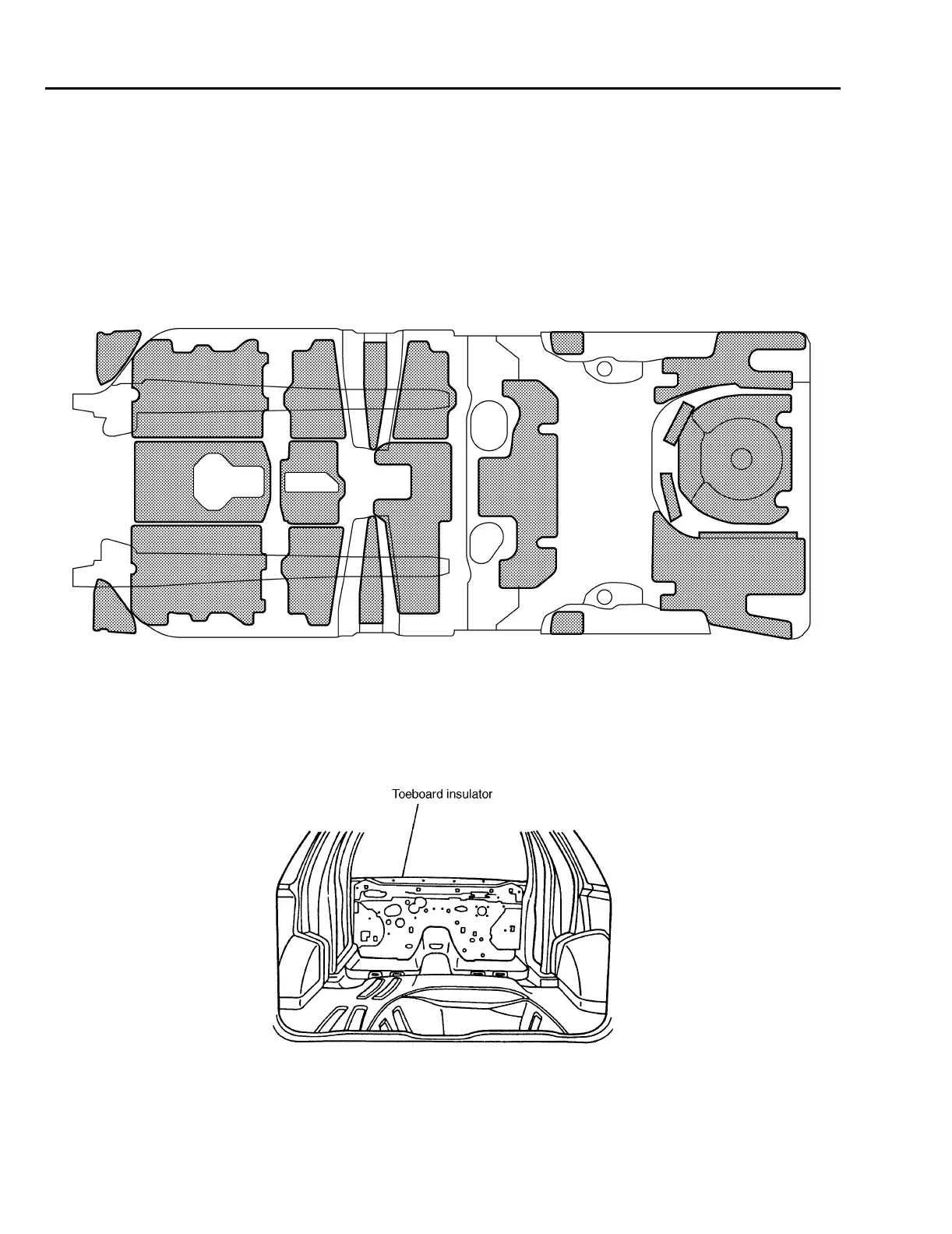

A: SILENCERS
Silencers (= asphalt sheets) minimize transmission of noise/vibration into the passenger compart-
ment.
B: DUAL-WALL TOEBOARD
The toeboard is a dual-wall design consisting of an asphalt sheet placed between two steel panels
to reduce the transmission of noise and vibration from the engine compartment to the passenger
compartment.
B5H0613A
