Subaru LEGACY 2002 - 1. Ignition Coil

Ignition
IGNITION COIL
IG-2
1. Ignition Coil
Ignition coils are made integral with an ignitor.
The ignition system is of a dual-ignition-coil design, each coil causing two plugs to generate sparks
simultaneously. In response to the signal from the ECM, the ignitor supplies current to an ignition
coil and the ignition coil supplies high-voltage current to a pair of spark plugs (#1 and #2 or #3 and
#4) simultaneously.

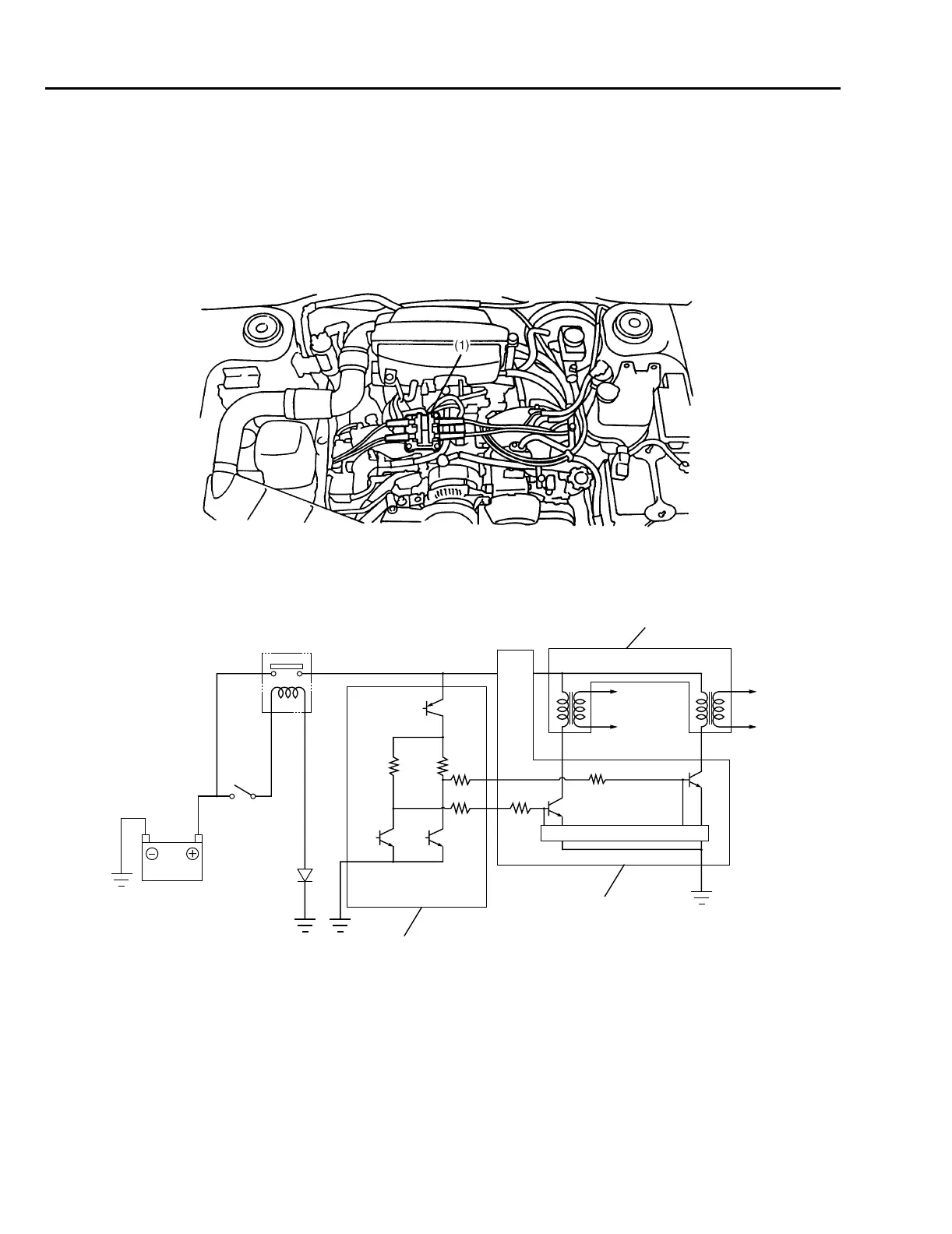

(1) Ignition coil and ignitor assembly
(1) ECM (5) Spark plug #2
(2) Ignitor (6) Spark plug #3
(3) Ignition coil (7) Spark plug #4
(4) Spark plug #1 (8) Ignition switch
B6H1294A
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
B6H0806C
