Fuel Injection (Fuel System)
SENSORS AND SWITCHES
FU-25
E: CAMSHAFT POSITION SENSOR
! The camshaft position sensor is located on the right-hand cylinder head. It detects the combus-
tion cylinder at any given moment.

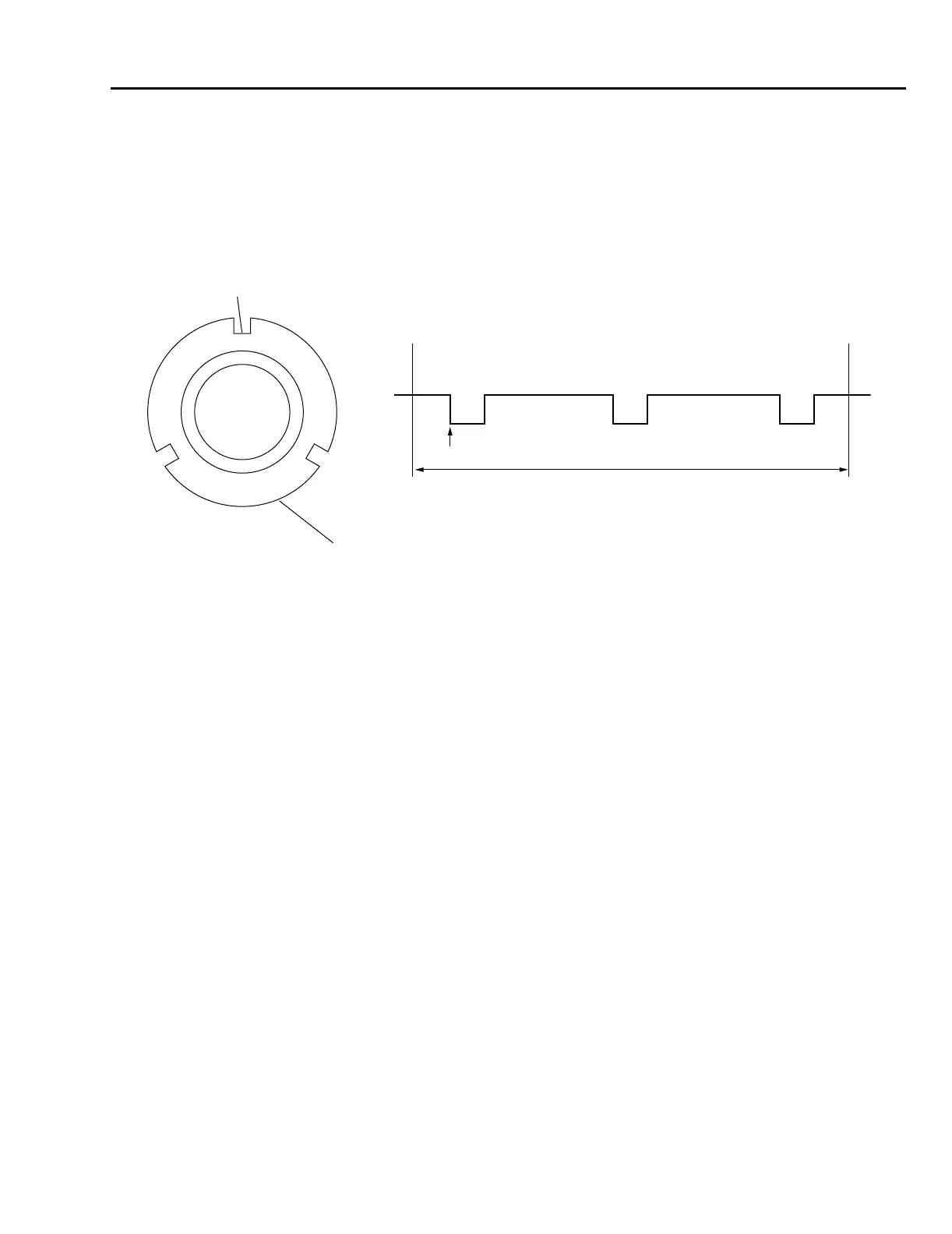

! The sensor generates a pulse when one of the slots on the back of the right-hand camshaft plate
passes in front of the sensor. The ECM detects the camshaft position by measuring the pulse.
Three slots are provided on the plate as shown below.
(1) Slot
(2) Camshaft plate
(3) Detection point
(4) Camshaft one rotation (Crankshaft two rotations)
(2)
(1)
(4)
(3)
B2H3913B
