Emission Control (Aux. Emission Control Devices)
EVAPORATIVE EMISSION CONTROL SYSTEM
EC-13

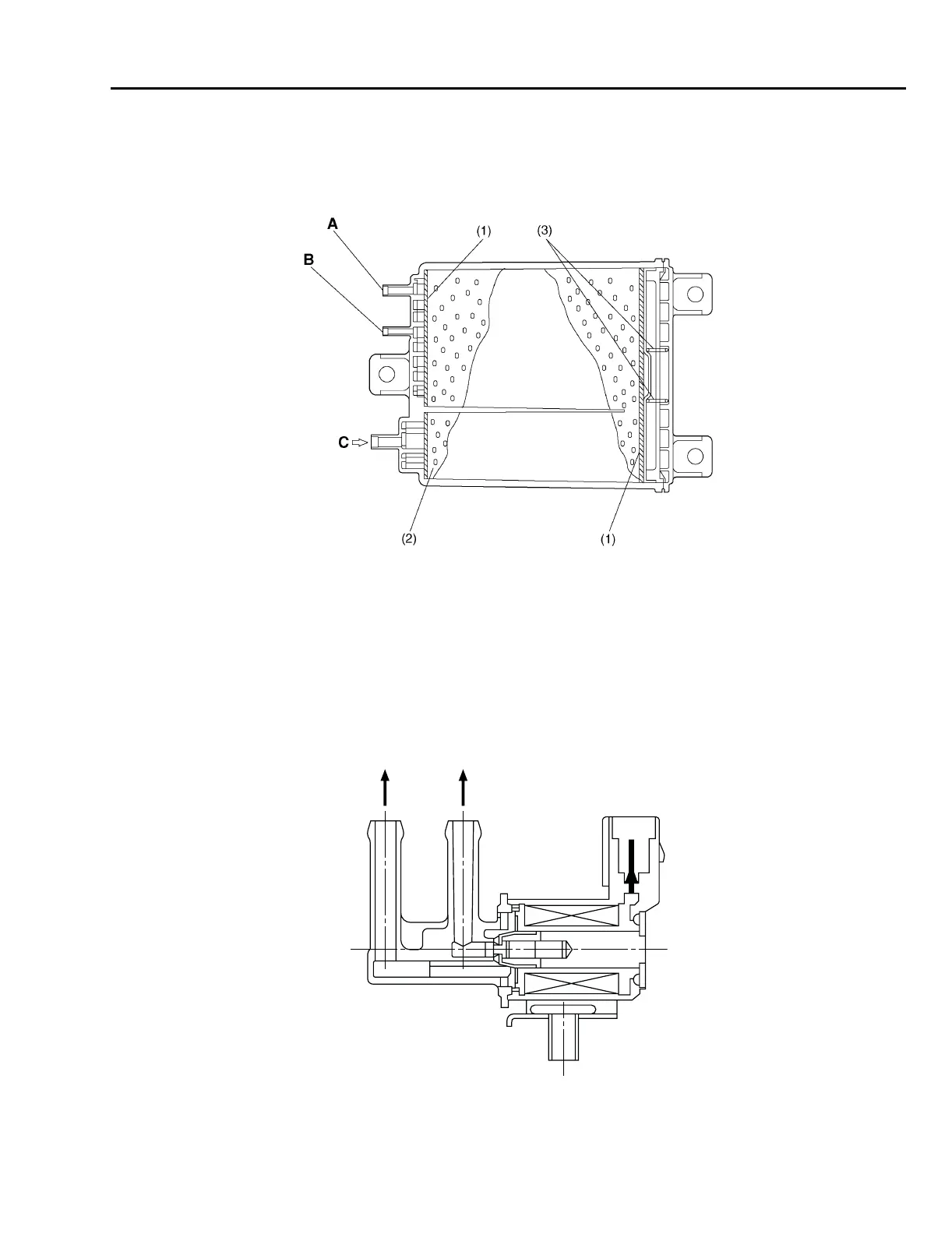

D: CANISTER
The charcoal filled in the canister temporarily stores fuel vapors. When the purge control solenoid
valve is opened by a signal from the ECM, the external fresh air entering the canister carries the
fuel vapors into the collector chamber.
E: PURGE CONTROL SOLENOID VALVE
The purge control solenoid valve is on the evaporation line between the canister and throttle body.
It is installed at the underside of intake manifold.
(1) Filter A: To purge control solenoid valve
(2) Activated charcoal B: From fuel tank
(3) Spring C: Air
A: To canister
B: To throttle body
B2H4209B
AB
B2H4155B
