Intake (Induction)
GENERAL
IN-2
1. General

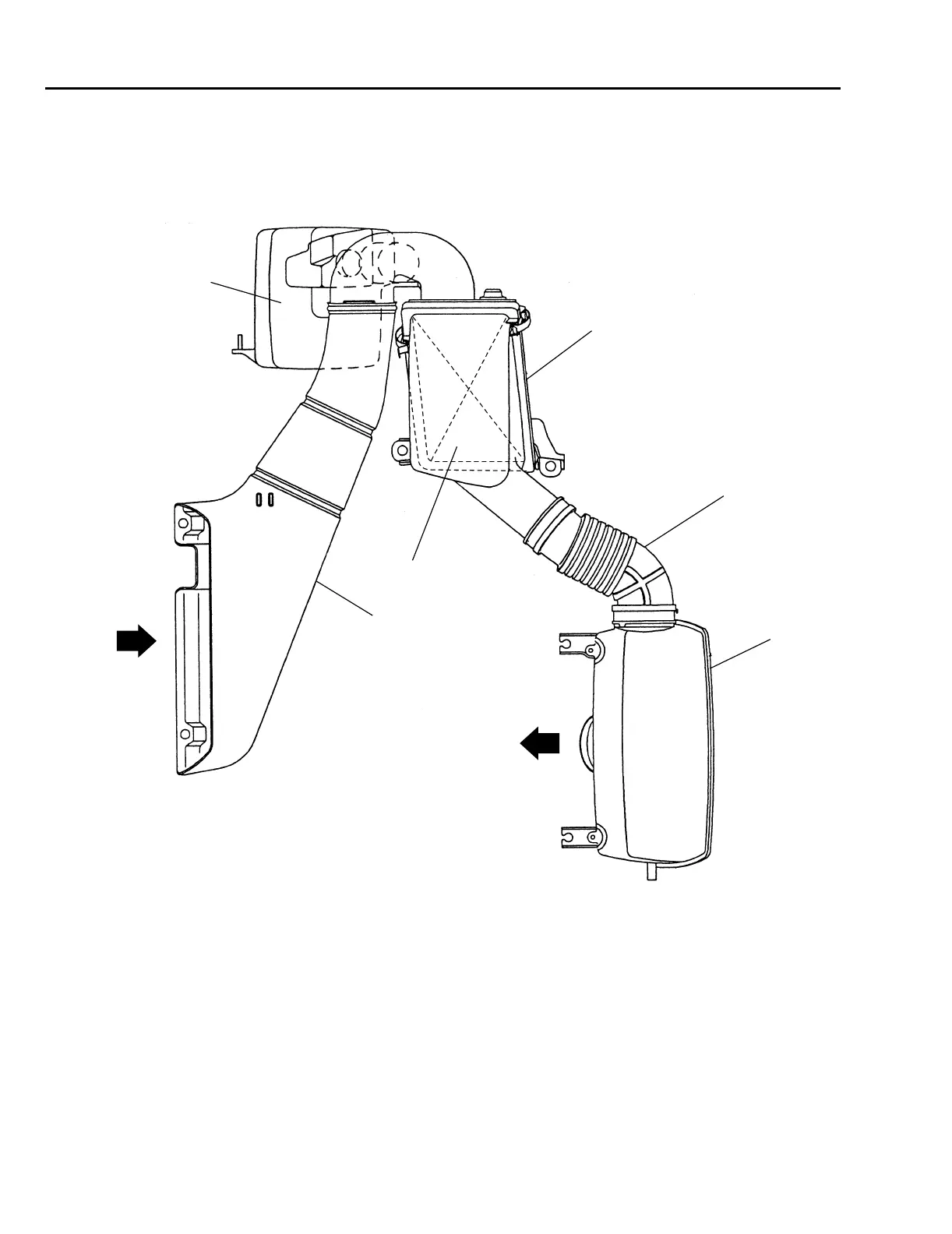

The intake system consists of an air intake duct, two resonator chambers, an air cleaner case, and
a duct. The resonator chambers (one is located upstream of the air cleaner and the other down-
stream of the air cleaner) effectively reduce the intake noise level.
(1) Air intake duct (a) Fresh air
(2) Resonator chamber (b) To throttle body
(3) Air cleaner case
(4) Air cleaner element
(5) Duct
(1)
(2)
(2)
(4)
(5)
(3)
(b)
(a)
B2H3904A
